Quick Details
-
Voltage:
-
380V
-
Power:
-
300 W/SPINDLE
-
Dimension(L*W*H):
-
1920*835*2140(2640)
-
Weight:
-
550 KG
-
Machine structure:
-
Single side , single layer
-
Spindle gauge:
-
460mm
-
Min./Max. No. of spindles:
-
4/20 (Max. number of spindles per oil feeding system: 20)
-
Take-up tubes:
-
A tube: cone; Y tube: King spool
-
Linear speed:
-
Up to 1100m/min (depend on the process parameters)
-
Traverse:
-
76mm~152mm(±3.5mm,depend on the tank size)
-
Yarn count:
-
Up to 3300D
-
Take-up package diameter:
-
Up to 105mm (85-105mm)
-
Supply package diameter:
-
Up to 320mm
-
Rated power:
-
300W/spindle
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KCGF
-
Voltage:
-
380V
-
Power:
-
300 W/SPINDLE
-
Dimension(L*W*H):
-
1920*835*2140(2640)
-
Weight:
-
550 KG
-
Machine structure:
-
Single side , single layer
-
Spindle gauge:
-
460mm
-
Min./Max. No. of spindles:
-
4/20 (Max. number of spindles per oil feeding system: 20)
-
Take-up tubes:
-
A tube: cone; Y tube: King spool
-
Linear speed:
-
Up to 1100m/min (depend on the process parameters)
-
Traverse:
-
76mm~152mm(±3.5mm,depend on the tank size)
-
Yarn count:
-
Up to 3300D
-
Take-up package diameter:
-
Up to 105mm (85-105mm)
-
Supply package diameter:
-
Up to 320mm
-
Rated power:
-
300W/spindle

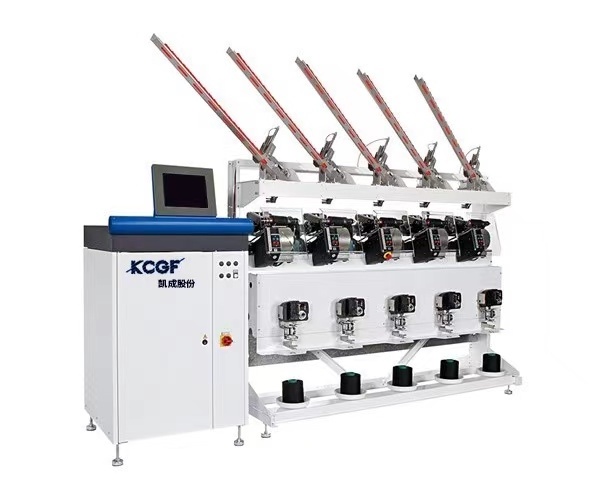

Used for A-tube, Y-tube (King-tube), cylinder tube production, be suitable for the production which need exchange a variety specifications.
Mainly suitable for winding of spun sewing thread、embroidery thread、corn spun、textured filament、industrial yarn、special yarn and etc.
Features
Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage, and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.
Features
Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage, and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.
|
Machine structure
|
Single side, single layer
|
|
Spindle gauge
|
460mm
|
|
Min./Max. No. of spindles
|
4/20 (Max. number of spindles per oil feeding system:20)
|
|
Type of winding
|
Precision cross winding
|
|
Take-up tubes
|
A tube:cones (cones with conicity from 3°30′ to 5°57′; cylindrical or cone king spool up to 2°; tip diameter ≥ 18mm）
|
|
Traverse
|
Y tube: King spool (cylindrical or cone king spool up to 2°; tip diameter
|
|
Linear speed
|
Up to 1100m/min (depend to the process parameters)
|
|
Traverse
|
76mm~152mm (± 3.5mm, depend on the tank size, there are certain limitations)
|
|
Yarn count
|
Up to 3300D
|
|
Take-up package diameter
|
Up to 105mm (85-105mm, depend on the tank size, there are certain limitations)
|
