Quick Details
-
Core Components:
-
galvanized steel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SINTA
-
Dimension(L*W*H):
-
10*10*H3M or other
-
Weight:
-
5000
-
Product name:
-
Pressed steel galvanized steel water tank
-
Volume:
-
1-1000CBM
-
Panel size:
-
1*1m,1*0.5m,0.5*0.5m,1.22*1.22m
-
Panel thickness:
-
4-17mm
-
Panel material:
-
SMC,FRP,fiberglass, galvanized steel
-
Color:
-
White or blue
-
Feasture:
-
mudular water tank
-
Other panel material:
-
galvanized steel
-
Material:
-
Q235 steel galvanized
-
Height:
-
5m max
Quick Details
-
Capacity:
-
1-500CBM
-
Max Working Pressure(MPa):
-
1000 MPa
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
galvanized steel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SINTA
-
Dimension(L*W*H):
-
10*10*H3M or other
-
Weight:
-
5000
-
Product name:
-
Pressed steel galvanized steel water tank
-
Volume:
-
1-1000CBM
-
Panel size:
-
1*1m,1*0.5m,0.5*0.5m,1.22*1.22m
-
Panel thickness:
-
4-17mm
-
Panel material:
-
SMC,FRP,fiberglass, galvanized steel
-
Color:
-
White or blue
-
Feasture:
-
mudular water tank
-
Other panel material:
-
galvanized steel
-
Material:
-
Q235 steel galvanized
-
Height:
-
5m max

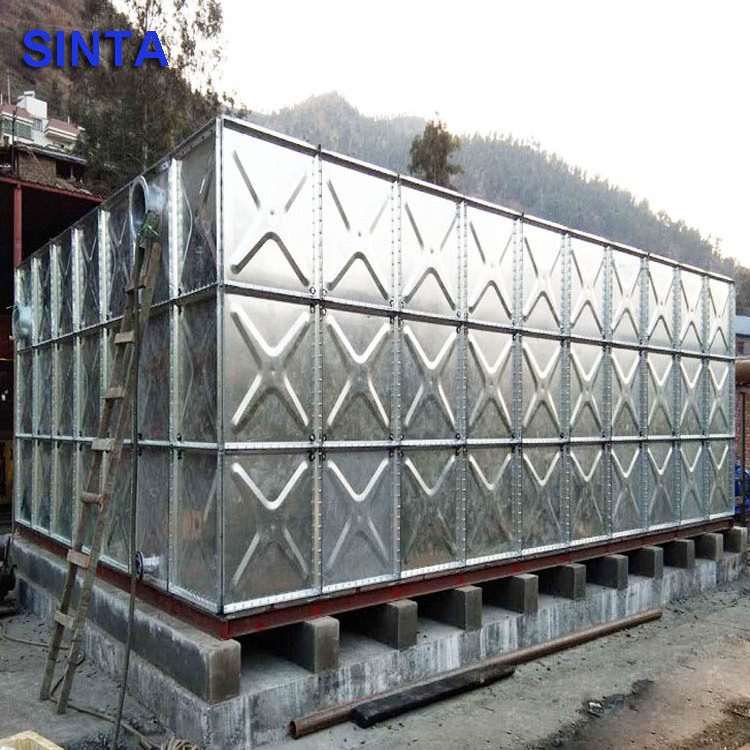

HDG Panel Pressed steel galvanized steel water tank
The hot dipped galvanized steel water tank defers to the GB code 92SS177 manufactured new type water tank. The manufacture and the installment of tank have no influence of the construction. There are not needed the welding apparatus, the surface is hot dipped galvanize antiseptic treatment. It's artistic durable, prevents two times pollution to water quality and it beneficial to human health. The water tank meets the construction product standar dization, the serration and the factorization request.
This product uses the Q235 steel plate, ramming to1000*1000 and the 1000*500 standard plate, the peripheral drill hole, undergoes hot dipped galvanized processing. When it assembles between the standard plate clamps use the rubber packing and bold fastening.
This product is suitable for the construction water storing, the regulating tank, heating system's inflation water tank, the condensate tank as well as the building construction, the geological prospecting, the industry, the defense project and so on temporarily store water tank.
This water tank volume has so many kinds specifications, select for the design. The engineer also can design according to the water tank's length, width, high then factory assembles.
The inlet pipe, the outlet pipe, the overflow caliber and the position of water tank is depends on the designing. All around the water tank should have no less than 700mm channels, the bottom and the cover should no less than 600mm. When it installed, the bottom and all around between the bottom standard plate's joins must be located on the support.
1. Material
The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter,1 meter x 0.5 meter
panel manufactured from 1.5mm to 4.0mm thickness according to requirement.
2. Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
3. Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
4. Accessories
1. Bolt. nut & washers stainless steel 304 material.
2. Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3. Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of stainless steel grade 304 material.
Applications
1. Industrial Water Treatment with multi-layer media
2. Water Softening Application
3. Centralized Filtration System for high rise residential and commercial buildings such as condominiums, high rise office building, hotels and resorts.
4. Aquaculture, fish farming and hatchery filtration system
5. Many other water filtration and treatment applications.
Feature of Galvanize steel water tank
| Water tank material | Hot dipped galvanized steel | |
| Water tank capacity | 1m³~5000 m³ | |
| Water tank size | According to the water volume or customer’s request | |
| Galvanized panel | Panel material | mild carbon steel Q235 A class grade |
| Panel size | 1220mm×1220mm,1000mm×1000mm | |
| Panel thickness | 5mm, 4.5mm, 4mm, 3mm, 2mm | |
| Acceessories | Bolt. nut & washers | hot-dipped galvanized material |
| Sealing material | Non-toxic P.V.C foam tape shall be used in between the joints | |
| Covers | from 1.4mm to 3.0mm of thickness hot-dipped galvanized material | |
| Ladders and Level Indicator | hot- -dipped galvanized material | |
Our Project for galvanized steelWater Tank:
Packing of Alibaba Trade Assurance square sectional galvanized steel panel water storage tank with best price
