Quick Details
-
Brand Name:
-
Fangpusun
-
Model Number:
-
MPPT 60
-
Work Time (h):
-
24h
-
Max PV Power:
-
7000w
-
Max PV Voltage:
-
150v
-
Certificate:
-
CE, ROHS, ISO9001
-
Warranty:
-
2 years
-
Nominal Battery Voltages:
-
12, 24, 36, 48, or 60 VDC (Single model)
-
PV Open Circuit Voltage (VOC):
-
150 VDC absolute maximum coldest conditions / 145 VDC start-up
-
Power Conversion Efficiency:
-
97.5% @ 80 Amps in at 48 VDC System voltage - Typical
-
Charging Regulation:
-
Five Stages: Bulk, Absorption, Float, Silent and Equalization
-
Remote Display and Controller:
-
Optional Mate or Mate2 with RS232 Serial Communications Port
-
Operating Temperature Range:
-
Minimum -40° to maximum 60° C
-
Voltage Regulation Set points:
-
10 to 80 VDC user adjustable with password protection
-
Environmental Rating:
-
Indoor Type 1
-
Weight:
-
6.5kgs
-
Dimensions:
-
40 x 14 x 10 cm
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Solar System Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fangpusun
-
Model Number:
-
MPPT 60
-
Work Time (h):
-
24h
-
Max PV Power:
-
7000w
-
Max PV Voltage:
-
150v
-
Certificate:
-
CE, ROHS, ISO9001
-
Warranty:
-
2 years
-
Nominal Battery Voltages:
-
12, 24, 36, 48, or 60 VDC (Single model)
-
PV Open Circuit Voltage (VOC):
-
150 VDC absolute maximum coldest conditions / 145 VDC start-up
-
Power Conversion Efficiency:
-
97.5% @ 80 Amps in at 48 VDC System voltage - Typical
-
Charging Regulation:
-
Five Stages: Bulk, Absorption, Float, Silent and Equalization
-
Remote Display and Controller:
-
Optional Mate or Mate2 with RS232 Serial Communications Port
-
Operating Temperature Range:
-
Minimum -40° to maximum 60° C
-
Voltage Regulation Set points:
-
10 to 80 VDC user adjustable with password protection
-
Environmental Rating:
-
Indoor Type 1
-
Weight:
-
6.5kgs
-
Dimensions:
-
40 x 14 x 10 cm

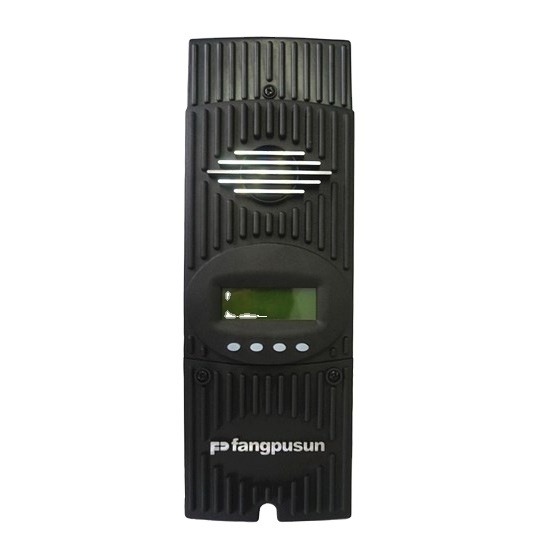

# Fangpusun Flex Max 48V 60A MPPT
Flex Max MPPT80A 12V/24V/36V/48V/60V
|
Nominal Battery Voltages |
12, 24, 36, 48, or 60 VDC (Single model - selectable via field programming at start-up) |
|
Maximum Output Current |
60 amps @ 104° F (40°C) with adjustable current limit |
|
Maximum Solar Array STC Nameplate |
12 VDC systems 900 Watts / 24 VDC systems 1800 Watts / 48 VDC systems 3600 Watts / 60 VDC Systems 4500 Watts |
|
NEC Recommended Solar Array STC Nameplate |
12 VDC systems 750 Watts / 24 VDC systems 1500 Watts / 48 VDC systems 3000 Watts / 60 VDC Systems 3750 Watts |
|
PV Open Circuit Voltage (VOC) |
150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum |
|
Standby Power Consumption |
Less than 1 Watt typical |
|
Power Conversion Efficiency |
98.1% @ 60 Amps in at 48 VDC System voltage - Typical |
|
Charging Regulation |
Five Stages: Bulk, Absorption, Float, Silent and Equalization |
|
Voltage Regulation Set points |
10 to 80 VDC user adjustable with password protection |
|
Equalization Charging |
Programmable Voltage Setpoint and Duration - Automatic Termination when completed |
|
Battery Temperature Compensation |
Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell |
|
Voltage Step-Down Capability |
Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input |
|
Programmable Auxilary Control Output |
12 VDC output signal which can be programmed for different control applications
|
|
Status Display |
3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total |
|
Remote Display and Controller |
Optional Mate or Mate2 with RS232 Serial Communications Port |
|
Network Cabeling |
Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires) |
|
Data Logging |
Last 128 days of Operation - Amp Hours, Watt Hours, Time in Float , Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production |
|
Hydro Turbine Applications |
Consult factory for approved Turbines |
|
Positive Ground Applications |
Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications) |
|
Operating Temperature Range |
Minimum -40° to maximum 60° C
|
|
Environmental Rating |
Indoor Type 1 |
|
Conduit Knockouts |
One 1" (35mm)on the back; One 1" (35mm) on the left side; Two 1" (35mm) on the bottom |
|
Weight - Unit |
11.65 lbs (5.3 kg) |
|
- Shipping |
13.64 lbs (6.0 kg) |
|
Dimensions - Unit |
13.5 x 5.75 x 4" (40 x 14 x 10 cm) |
|
- Shipping |
18 x 11 x 8" (46 x 30 x 20 cm) |
|
Options |
Remote Temperature Sensor (RTS), HUB 4,
|
|
Menu Languages |
English & Spanish |
