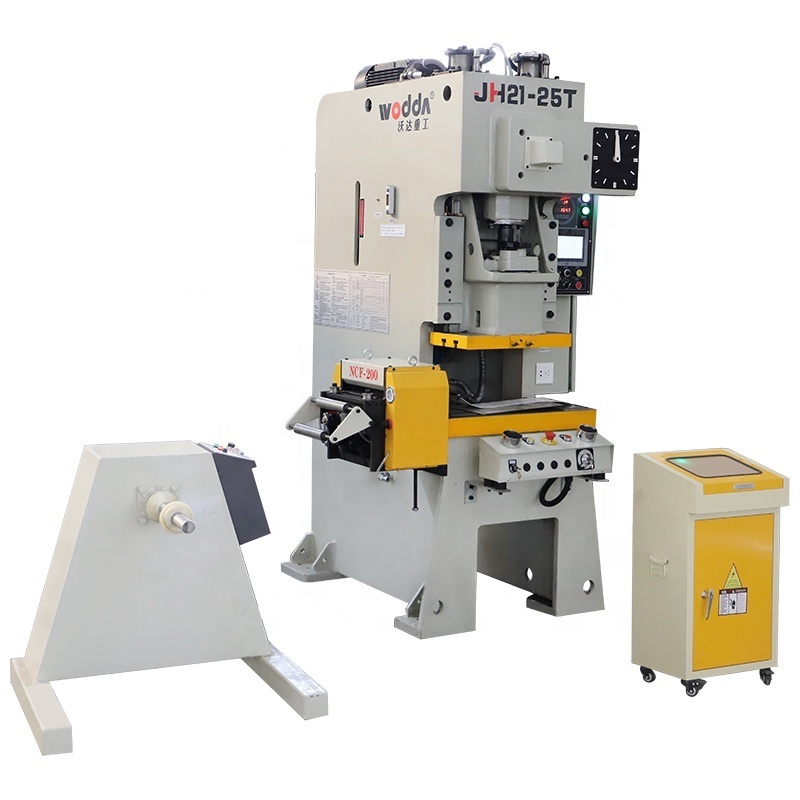

JH21 mold press custom feeding machine combination pneumatic punching machine press punching machine power

JH21 mold press custom feeding machine combination pneumatic punching machine press punching machine power

FOB Reference Price: Get Latest Price

≥1 Sets

US $8800

≥3 Sets

US $6600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: woda

Year:: new

Voltage:: customized

Dimension(L*W*H):: 520x520

Weight (T):: 4.8 T

Model Number:: YQ41

Motor Power (kw):: 5.5 kw

Marketing Type:: New Product

Product name:: 25 ton C type single arm hydraulic press

Power Source:: Hydraulic Power

Advantage:: Easy Operation

Function:: Pressing

Technology:: Advanced Technology

Color:: Grey

Keyword:: Hydryalic Press

Power:: 1.5kw-7.5kw

Type:: C-Type Structure

Hydraulic press:: Hydraulic Press 63 Ton

Quick Details

Machine Type:: Puching machine

Slide Stroke (mm):: 120

Return Force (kN):: 250 kN

Place of Origin:: Shandong, China

Brand Name:: woda

Year:: new

Voltage:: customized

Dimension(L*W*H):: 520x520

Weight (T):: 4.8 T

Model Number:: YQ41

Motor Power (kw):: 5.5 kw

Marketing Type:: New Product

Product name:: 25 ton C type single arm hydraulic press

Power Source:: Hydraulic Power

Advantage:: Easy Operation

Function:: Pressing

Technology:: Advanced Technology

Color:: Grey

Keyword:: Hydryalic Press

Power:: 1.5kw-7.5kw

Type:: C-Type Structure

Hydraulic press:: Hydraulic Press 63 Ton

jh-25 ton pneumatic punch

Product Description

Application:

● It is suitable for the realization of various cold stamping processes such as blanking, punching, forming, bending, and shallow drawing.

● Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial fields. structure

● The steel plate welded body has good rigidity and more stable accuracy.

● The crankshaft is placed vertically, with compact structure and beautiful appearance.

● The height of the mold can be adjusted electrically, and the height can be adjusted by digital display.

● The sliding block adopts a rectangular hexahedral elongated guide rail and a bronze lining board, which has high guiding accuracy.

● It adopts combined pneumatic friction clutch-brake, smooth engagement and sensitive action.

● Compression type safety device to ensure the safety of the whole machine
when it is overloaded.

● The height of the slider has a lifting balance cylinder to achieve the balance of the slider connecting rod. Features

● The slider can be moved by inches, and the movement can be stopped urgently, making the operation safer.

● The road adopts double valve control, which is sensitive in action and meets the safety standards of presses. Product main technical specifications:

Specification	Unit	JH21-25t	JH21-63t	JH21-80t	JH21-125t	JH21-200t
Nominal force	KN	250	630	800	1250	2000
Ability occurrence point	mm	3	4	5	5	6
slide stroke	mm	80	120	140	160	200
max die set height	mm	250	300	320	370	450
Number of stroke of slider	mm	100	70	60	50	40
mold height adjustment	mm	50	80	80	100	110
throat depth	mm	210	300	300	370	430
slider surface size	mm	250x360	400x480	420x560	520x620	650x880
bed dimension	mm	700x400	900x580	1000x580	1120x720	1400x840
The main motor	mm	3x4	5.5x6	7.5x4	11x4	18.5x6

Product pictures

General forging equipment, one machine for multiple purposes, stamping forming, stamping forming, riveting, sheet half-cut, full-cut, lock nut pressure point forming metal or non-metal forming, punching

Detailed Images

Company Introduction

Shandong Woda Heavy Industry Machine Tool Co., Ltd.is located in Tengzhou Economic Development Zone, Shandong Province .The company has long been committed to the development of forging machinery and CNC machine tools.

The company is mainly engaged in the development,design,manufacture and technical service of four-column hydraulic press,single-column hydraulic press, gantryhydraulic press,hydraulic stretcher hydraulic cylinder,complete hydraulic system and hydraulicprerss,hydraulic electric controlproduction line .Products are widely used in steel,metallurgy ,light industrial machinery machinery ,chemical machenery ,auto parts ,plastic products and other industries.

Our hydraulic presses are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates International CE certification, Alibaba / China manufacturing network SGS certification.

We go to all kinds of fairs, if you're interested.You can come to China to participate in the exhibition, we will meet here.

Packing&Shipping

1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board
package.
Combined container transport, or separate container transport.

FAQ

Q:How about your machine quality?We are worry about the quality.

A:Woda is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.

Q:Why Choose your company?

A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.

Q:How to select your machine?

A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
