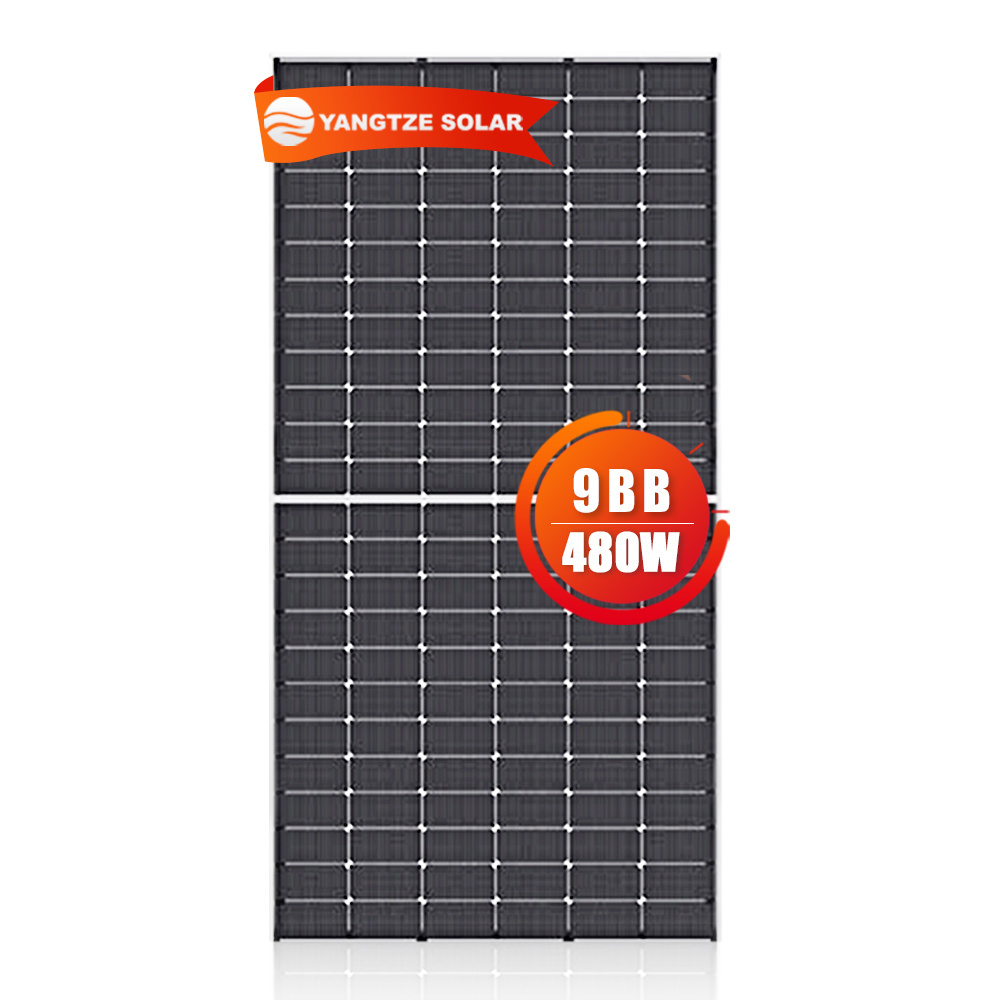

2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation
2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation
2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation
2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation
2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation
2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation
2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation
2024 Latest Technology  1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation

2024 Latest Technology 1000w 700w 600w 500w solar panel mono photovoltaic small solar panel installation

FOB Reference Price: Get Latest Price
≥30 Pieces
US $105
≥300 Pieces
US $92
≥3000 Pieces
US $84
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
25 years, 25 years
Brand Name:
Yangtze Solar
Model Number:
YS700M-66
Place of Origin:
China
Panel Dimensions:
2400*1303*35mm
Certificate:
CE ISO TUV, TUV/IEC61215/IEC61730/CE/ISO
Frame:
Anodized Aluminium Alloy
Solar cell:
Mono 210*105 Cell
Junction Box:
IP68 Rated
Backing Color:
Slivery or black
Front Glass:
High Transparency Temperd Glass
OEM Order:
Acceptable
Output cable:
400mm or customized length

Quick Details

Cell size:
210mmx210mm
Type:
PERC, Half Cell, HJT, N-TYPE
Panel Efficiency:
21.1%-22.3%
Warranty:
25 years, 25 years
Brand Name:
Yangtze Solar
Model Number:
YS700M-66
Place of Origin:
China
Panel Dimensions:
2400*1303*35mm
Certificate:
CE ISO TUV, TUV/IEC61215/IEC61730/CE/ISO
Frame:
Anodized Aluminium Alloy
Solar cell:
Mono 210*105 Cell
Junction Box:
IP68 Rated
Backing Color:
Slivery or black
Front Glass:
High Transparency Temperd Glass
OEM Order:
Acceptable
Output cable:
400mm or customized length
Product Description

Model Type
YS660M-66
YS670M-66
YS680M-66
YS690M-66
YS700M-66
Rated Maximum Power at STC
660W
670W
680W
690W
700W
Maximum Power Voltage (Vmp)
38.38V
38.68V
38.98V
39.28V
39.58V
Maximum Power Current (Imp)
17.20A
17.33A
17.45A
17.57A
17.69A
Open Circuit Voltage ( Voc)
45.55V
45.85V
46.15V
46.45V
46.75V
Short Circuit Current (Isc)
18.45A
18.54A
18.66A
18.79A
18.92A
Module Efficiency
21.1%
21.4%
21.7%
22.0%
22.3%
Working Conditions&Working Conditions
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC (Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
