Quick Details
-
Model Number:
-
LXS-15E
-
Specification:
-
LXS-20E
-
Colour:
-
Blue/customized
-
Material:
-
iron
-
Meter Size:
-
15mm
-
Accuracy:
-
B
-
Manner of pack:
-
10 pieces in one carton
-
Inside Package Size:
-
168*92*117mm
-
Outside Package Size:
-
475*178*250mm
-
Outside Package Weight:
-
13KG

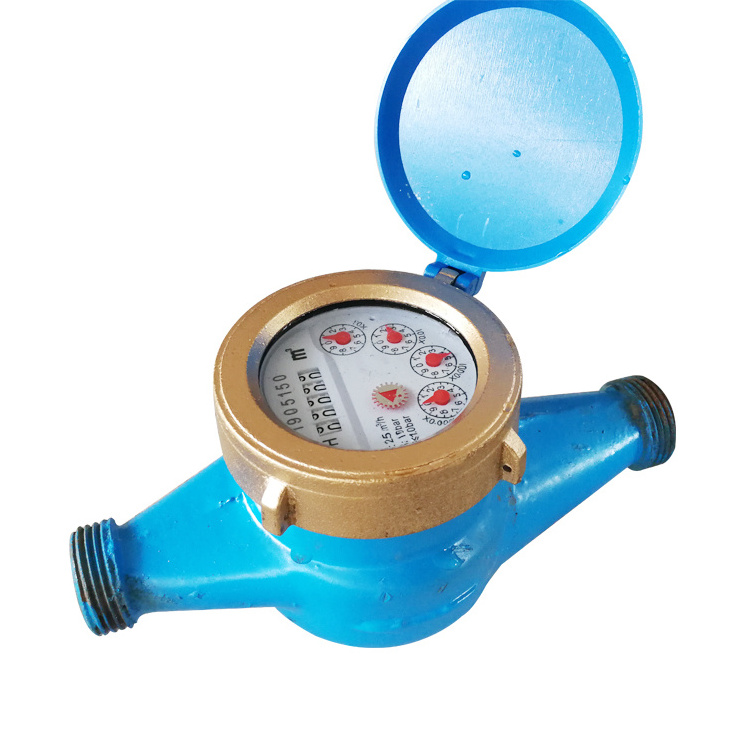

Quick Details
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yuxing
-
Model Number:
-
LXS-15E
-
Specification:
-
LXS-20E
-
Colour:
-
Blue/customized
-
Material:
-
iron
-
Meter Size:
-
15mm
-
Accuracy:
-
B
-
Manner of pack:
-
10 pieces in one carton
-
Inside Package Size:
-
168*92*117mm
-
Outside Package Size:
-
475*178*250mm
-
Outside Package Weight:
-
13KG
|
Application:
--Measuring the total volume of cold potable water passing through the pipeline.
Feature:
--Dry type, magnetic drive, easy and long term clear reading, frost resistance, long working life ect;
-- Technical data conform to international standard ISO4064 Class B Class C R80,R100,R125,R160.
--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse
Working condition:
Water temperature: 0.1°C~50°C for cold water meter .
Water pressure : ≤1.0Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)
Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;(Hot water meter ±3%)
MAIN TECHNICAL SPECIFICATIONS
According ISO4064(GB/T778.1-1996) standard
|
Type |
Size (mm) |
Class |
Q s Overload Flow |
Q p Permanent Flow |
Q t Transitional Flow |
Q min Minimum Flow |
Minimum Reading |
Maximum Reading |
|
|
|
|
m 3 /h |
L/h |
m 3 |
|||
|
LXSG -15E |
15 |
B |
3 |
1.5 |
120 |
30 |
0.0001 |
99,999 |
|
|
|
C |
|
|
22.5 |
15 |
|
|
|
LXSG -20E |
20 |
B |
5 |
2.5 |
200 |
50 |
0.0001 |
99,999 |
|
|
|
C |
|
|
37.5 |
25 |
|
|
|
LXSG -25E |
25 |
B |
7 |
3.5 |
280 |
70 |
0.0001 |
99,999 |
|
LXSG -32E |
32 |
B |
12 |
6.0 |
480 |
120 |
0.0001 |
99,999 |
|
LXSG -40E |
40 |
B |
20 |
10 |
800 |
200 |
0.001 |
99,999 |
|
LXSG -50E |
50 |
B |
30 |
15 |
3000 |
450 |
0.001 |
99,999 |
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB,CIF all acceptable.
