Quick Details
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
7200mm
-
Working Temperature:
-
1000
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
3%(24 Hours)
-
Thermal Conductivity:
-
≤0.153
-
Model Number:
-
CN 1260
-
Brand Name:
-
Carnot
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
White
-
Name:
-
1260 Ceramic Fiber Blanket
-
Raw material:
-
Ceramic Fiber Bulk
-
Type:
-
1260 STD/HP
-
Package:
-
woven bag or Carton
-
Item:
-
128kg/m3 Density Insulation Ceramic Fiber Blanket
-
Feature 1:
-
Excellent Insulating Performance
-
Application of ceramic fiber blanket:
-
Furnace Refractory
-
Feature 2:
-
Thermal Shock Resistance
-
Bulk density:
-
96-128Kg/m3
Quick Details
-
Thickness:
-
25mm
-
Width:
-
610mm
-
Chemical Composition:
-
SiO2+AL2O3
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
7200mm
-
Working Temperature:
-
1000
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
3%(24 Hours)
-
Thermal Conductivity:
-
≤0.153
-
Model Number:
-
CN 1260
-
Brand Name:
-
Carnot
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
White
-
Name:
-
1260 Ceramic Fiber Blanket
-
Raw material:
-
Ceramic Fiber Bulk
-
Type:
-
1260 STD/HP
-
Package:
-
woven bag or Carton
-
Item:
-
128kg/m3 Density Insulation Ceramic Fiber Blanket
-
Feature 1:
-
Excellent Insulating Performance
-
Application of ceramic fiber blanket:
-
Furnace Refractory
-
Feature 2:
-
Thermal Shock Resistance
-
Bulk density:
-
96-128Kg/m3
Introduction

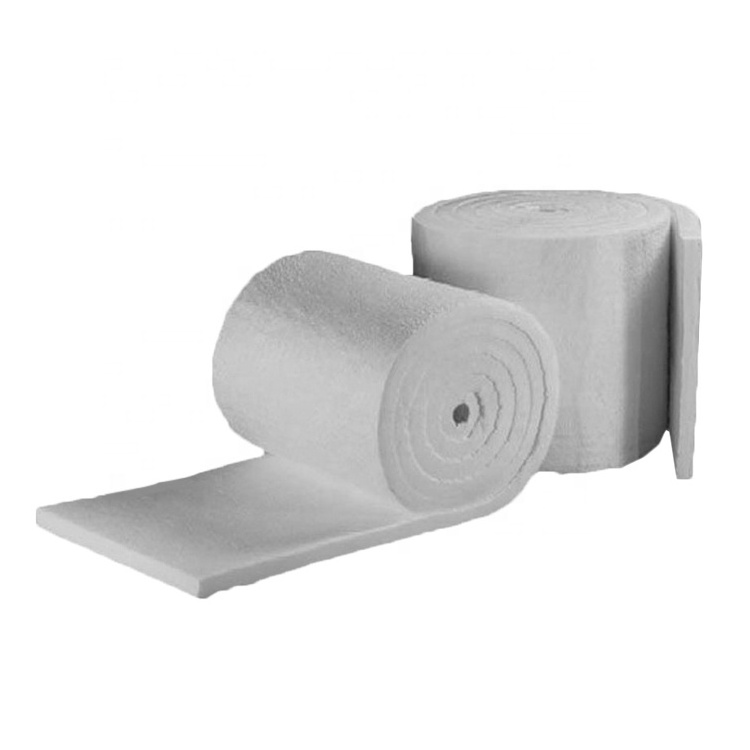

Ceramic fiber blanket is moulded from special aluminum silicate ceramic filament by a special double-sided acupuncture process. The double-sided acupuncture process can greatly improve the degree of fiber weaving, anti-layering performance, tensile strength and surface smoothness. Color is white, size is structured. It set refractory, heat insulation, heat preservation in one. Fiber blanket does not contain any organic binder.
Product Details
Item: 1260 Ceramic Fiber Blanket coated aluminum foil
Brand Name: Carnot
Application: Liners Of Industrial Furnace
Chemical Composition: AL 2 O 3 +SiO 2 + Fe 2 O 3
Working Temperature: 1000℃
Thermal Conductivity: ≤0.153 w/m.k
Density: 128KG/m³
Place of Origin: Zhejiang, China (Mainland)
Product Features
Light weight
Low thermal capacity
Resistance to erosion
Excellent sound-absorbing performance.
Good thermal shock
Outstanding chemical stability
Applications
Industrial furnace, heating device wall lining
High building fireproof and thermal insulation
Aerospace, steel, petrochemical high temperature insulation
Precursor Engineering fibrous material
Products Data
|
Type |
CN1260 |
SIZE |
|
|
Classification temperature (℃) |
1260 |
7000*610*10mm 7200*610*20mm 6000*610*25mm 5000*610*30mm 3600*610*40mm 3000*610*50mm
|
|
|
Working temperature (℃) |
1000 |
||
|
Rebirth Line Shrinkage |
1000℃×24HR×1.3≤3 |
||
|
Thermal conductivity |
≤0.153w/m.k |
||
|
Density |
128KG/m³ |
||
|
Colour |
White |
||
|
chemical composition(%) |
Al 2 O 3 |
≥45 |
|
|
Al 2 O 3 +SiO 2 |
≥99 |
||
|
Fe 2 O 3 |
≤0.2 |
||
Packaging & Delivery
Packaging Details: wooden case/ carton
Delivery Detail: 15 to 30 days after peyment
