Quick Details
-
Sling type:
-
wire rope,cable,chain
-
Maximum lifting weight:
-
200-1000KG
-
Application:
-
Workshop,lift goods,construction
-
Voltage:
-
110v 220v 380v
-
lifting speed:
-
10M/min
-
Control Method:
-
Panel Control
-
Color:
-
optional
-
Feature:
-
Space Saved Hoist
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Product name:
-
400kg electric hoist
-
Sling type:
-
wire rope,cable,chain
-
Maximum lifting weight:
-
200-1000KG
-
Application:
-
Workshop,lift goods,construction
-
Voltage:
-
110v 220v 380v
-
lifting speed:
-
10M/min
-
Control Method:
-
Panel Control
-
Color:
-
optional
-
Feature:
-
Space Saved Hoist

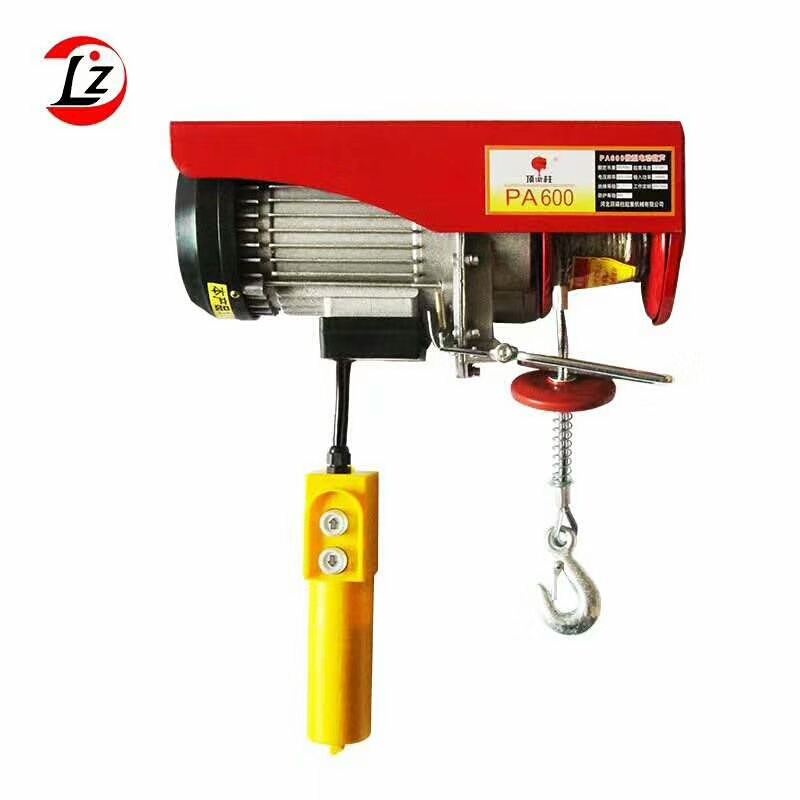

China supplier mini electric wire rope hoist with truss motor
1.Smart design, easy to operate.
2.When limit baffle hit limiting stopper, the hoist will stop automatically.
3.The hoist hook can rotate 360°.
4.100% pure copper motor, good cooling and durable.
5.With emergency knob for the handle.
6.With upper limit and lower limit.
7.Longer stator and rotor.
8.Thick shell to protect the mini hoist.
| Model | Usage |
Rated volt
(v) |
Input
Power (w) |
Rate
Capacity (kg) |
Lifting
speed (m/min) |
Lifting
height (m) |
QTY/CTN
(PCS) |
Packing Size
(mm) |
N.W/G.W
(kg) |
| PA200 | single hook |
AC
240v
|
480 | 100 | 10 | 12 | 2 | 370*290*230 | 24/26 |
| double hook | 200 | 5 | 6 | ||||||
| PA250 | single hook | 510 | 125 | 10 | 12 | ||||
| double hook | 250 | 5 | 6 | ||||||
| PA300 | single hook | 600 | 150 | 10 | 12 | ||||
| double hook | 300 | 5 | 6 | ||||||
| PA400 | single hook | 950 | 200 | 10 | 12 | 450*340*260 | 34/36 | ||
| double hook | 400 | 5 | 6 | ||||||
| PA500 | single hook | 1020 | 250 | 10 | 12 | ||||
| double hook | 500 | 5 | 6 | ||||||
| PA600 | single hook | 1200 | 300 | 10 | 12 | 36/38 | |||
| double hook | 600 | 5 | 6 | ||||||
| PA800 | single hook | 1300 | 400 | 10 | 12 | 40/42 | |||
| double hook | 800 | 5 | 6 | ||||||
| PA1000 | single hook | 1600 | 600 | 10 | 12 | 1 | 540*245*310 | 32/34 | |
| double hook | 1200 | 5 | 6 |
Delivery time:
For spot goods within 5-10days. According to the quantity of the orders, the delivery time will be within 30-55days.
Packing:
General export packing, or customized packing as your request.
And Professional goods shipping forwarder.
