- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V/440V
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1080x600x1430
-
Weight (KG):
-
980
-
Name:
-

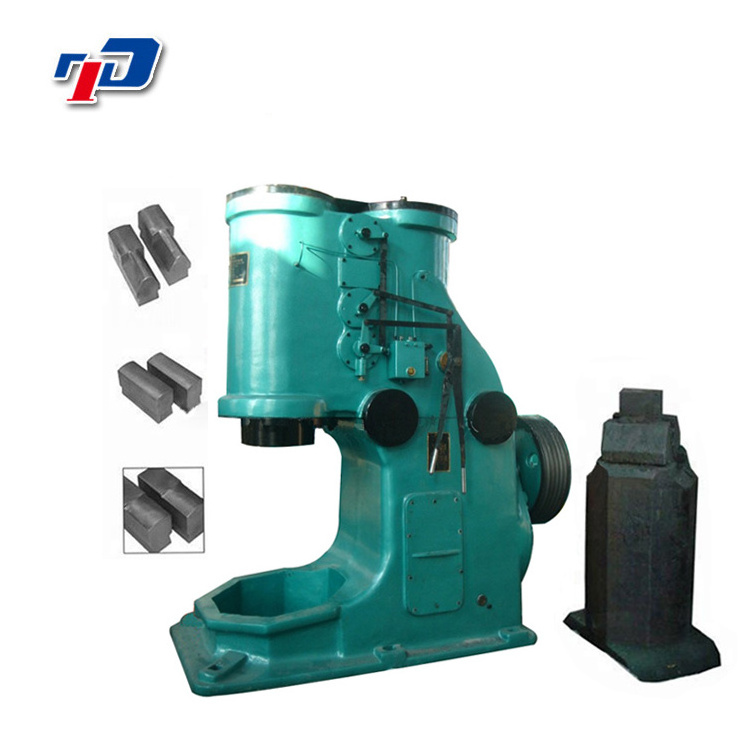

Air Power Forging Hammer
-
Usage:
-
Steel Bar
-
Type:
-
C41 Blacksmith Power Hammer
-
Application:
-
Metal forging
-
Item:
-
Heating Metal Rods
-
Application in:
-
Pipe Joint
-
Speed of motor:
-
1440r.p.m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tengdong
-
Machine Type:
-
Medium duty
-
Voltage:
-
220V/380V/440V
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1080x600x1430
-
Weight (KG):
-
980
-
Name:
-
Air Power Forging Hammer
-
Usage:
-
Steel Bar
-
Type:
-
C41 Blacksmith Power Hammer
-
Application:
-
Metal forging
-
Item:
-
Heating Metal Rods
-
Application in:
-
Pipe Joint
-
Speed of motor:
-
1440r.p.m
Product Description
The main performance characteristics:
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Specification
|
Model
|
C41-16KG
|
C41-20KG
|
C41-25KG
|
C41-40KG
|
C41-55KG
|
|
Weight of failling parts(KG)
|
16
|
20
|
25
|
40
|
55
|
|
Max.hit energy(KJ)
|
0.18
|
0.22
|
0.27
|
0.53
|
0.7
|
|
Height of working area(mm)
|
180
|
200
|
240
|
245
|
265
|
|
Hit number(min)
|
258
|
255
|
250
|
245
|
230
|
|
Dimension of top and bottom die surface(LxW mm)
|
70x40
|
90x50
|
100x50
|
120x50
|
120x55
|
|
Max. square steel can be forged(Diameter mm)
|
20x20
|
30x30
|
40x40
|
52x52
|
52x52
|
|
Max. round steel can be forged(Diameter mm)
|
22
|
35
|
45
|
68
|
68
|
|
Rate power(kw)
|
1.5
|
2.2
|
3/2.2
|
4
|
5.5
|
|
Speed of motor(r.p.m)
|
1440
|
1440
|
1440
|
1440
|
1440
|
|
Total weight(kg)
|
240
|
380
|
560
|
880
|
1700
|
|
Overall dimensions(L x W x H mm)
|
660x420x970
|
820x460x1110
|
980x510x1200
|
1080x600x1430
|
1320x670x1620
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
FAQ
Q1: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q6.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q6.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
