Quick Details
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
3 GG, 7 GG, 12 GG, 14 GG, 16 GG, 9 GG, 5 GG, 10GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAOYUE
-
Power:
-
1500 W
-
Weight:
-
1050 KG
-
Dimension(L*W*H):
-
2800*1000*1800mm
-
Product Name:
-
Sweater knitting machine
-
Model:
-
SY52-2S
-
gauge:
-
14g
-
bed width:
-
52inch
-
knitting system:
-
Single carrage with double system
-
After Warranty Service:
-
Video technical support
-
Showroom Location:
-
Peru
-
After-sales Service Provided:
-
Free spare parts
-
Certificate:
-
CE Certificate
Quick Details
-
Type:
-
Flat
-
Production Capacity:
-
Max:1.6m/s
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
3 GG, 7 GG, 12 GG, 14 GG, 16 GG, 9 GG, 5 GG, 10GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAOYUE
-
Power:
-
1500 W
-
Weight:
-
1050 KG
-
Dimension(L*W*H):
-
2800*1000*1800mm
-
Product Name:
-
Sweater knitting machine
-
Model:
-
SY52-2S
-
gauge:
-
14g
-
bed width:
-
52inch
-
knitting system:
-
Single carrage with double system
-
After Warranty Service:
-
Video technical support
-
Showroom Location:
-
Peru
-
After-sales Service Provided:
-
Free spare parts
-
Certificate:
-
CE Certificate

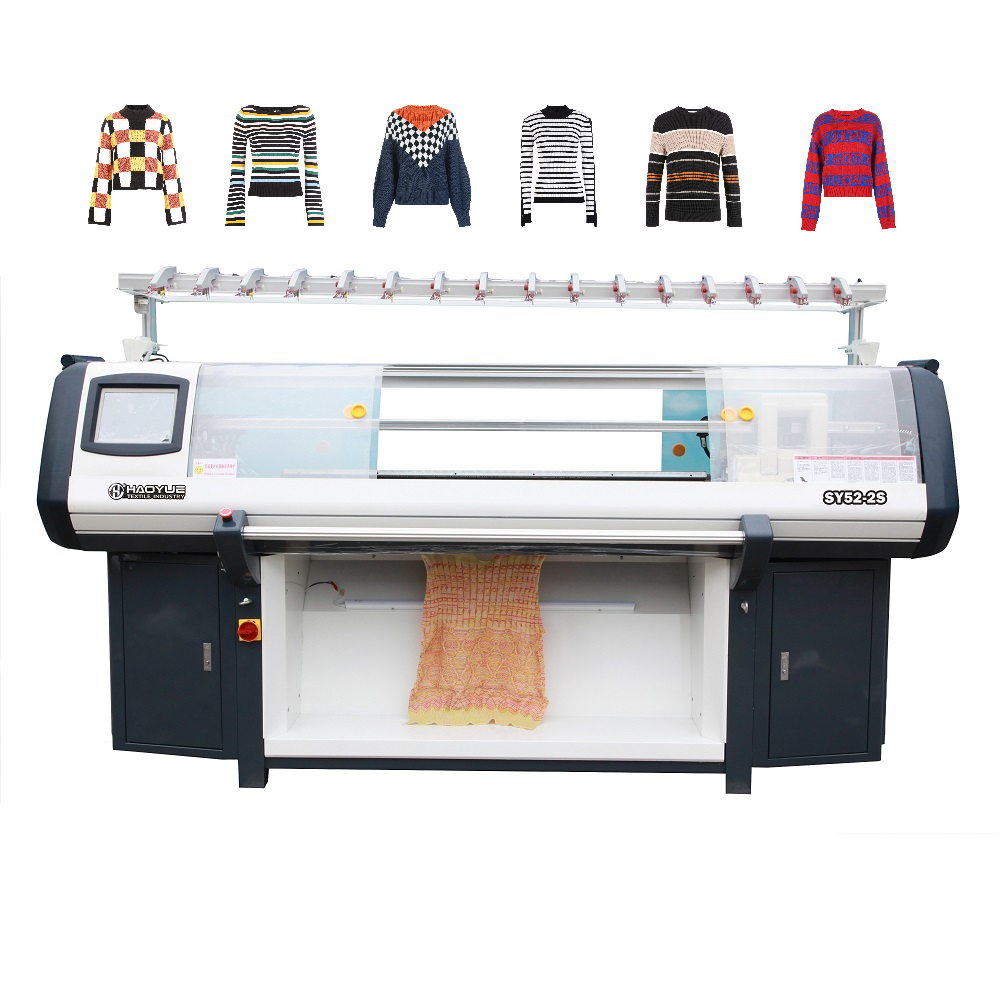

wonderful Weft Knitting Machine For Sweater with 52inch double system
NINGBO HAOYUE Double system Flat knitting machine:
1. Single carriage double system. The double system can work together and separate, enhancing the productivity greatly.Also have three function of knit, tuck and no-knit in the same knitting line and system.
2. Equip with the dynamic stitch function, enable the machine to knit mush wider range of patterns, It can knit different density at same line which break the old knitting method of same line can only have same density. The pattern knitted by dynamic stitch function can have more 3D effect.
3. High-speed reversal to effectively increase the knitting speed by 20-30%.
4. This series is used digital technology to achieve the patterns of transfer, tuck, pointelle, intarsia, jacquard, apparent shaping, hidden shaping and other regular pattern knitting functions, it also can knit irregular multi-colored jacquard, intarsia, cable and Pointe-le structure patterns.
5. Both sides of the grippers with cutting means effectively reduce the waste yarn and improve productivity. (optional)
|
|
|
|
High quality mountain plate, controlled by step motor, the property is more stable. |
The needle is full-insert type, that is, the insertion piece could be replaced when broken, which makes the marginal cost substantially lower. |
|
|
|
|
Linear velocity of head can reach 1.6m/s. The stroke can be adjusted according the weaving width. Fast response, accurate location can avoid the invalid movement and increase the production efficiency. Each system is equipped with five functions as stich transfer, weaving, hanging head, non-weave and pin. Also it can execute color changing via motor, This keeps good balance of routing. reliable, noiseless, etc. |
Positive yarn storage can effectively reduce the resistance when delivering the yarn, especially apply to yarns with little stretch or large brittleness, such as cashmere, rabbit hair and other yarn fabric. Yarn Feeder ensures fabric to become homogeneous or similar and thus increase the weaving efficiency.
|
|
SPECIFICATION, GAUGE AND TECHNICAL PARAMETER |
|
| Gauge | 3G,3.5G,5G,7G,8G,9G,10G,12G,14G,16G,3-5-7G multi-gauge |
| Knitting width | 32,36,48,52,56,60,66,68,72,80, 100 inch |
| Knitting system | Single carriage with double system |
| Knitting function | Knit, miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns |
| Knitting speed | Controlled by sevro-motor with 32 sections optional, max speed reach 1.6M/S. |
| Racking | Controlled by sevro-motor racking within 2 inches and with fine adjusting function. |
| Needle selection | Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector. |
| Stitch density | Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Transfer | Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer, another cam system for knitting, which will achieve high production. |
| Sinker system | Controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns. |
| Comb device | Grip or knock-over the yam reliably (Optional) |
| Cutters and Grippers | Include 2 cutters and 4 grippers, controlled by 6 motors respectively(Optional) |
| Take-down system | Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100 |
| Color-changing sytem | 2×8 yarn feeders at the single side of 4 guide rails, shiftable on any needle position. |
| Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |
| Control system |
1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 1G. 3. Free design system is visual and easy to understand and software upgrade free of charge. Support multi-language operation as Chinese and English, Spanish, Russian etc. |
| Network fuction | Has network interface,enable remote-monitoring via network,and connecting with ERP system. |
| Power | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. |
