Quick Details
-
Voltage:
-
DC 9.5V~36V
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MCY
-
Model Number:
-
M360-13AM-C4
-
Camera Resolution:
-
AHD 720P
-
TV system:
-
PAL/NTSC
-
Waterproof:
-
IP67 Waterproof Rate
-
Lens Angle:
-
180 Wide Angle
-
Video Coding:
-
H.264
-
Car Make:
-
Truck Bus Van Motorhome
-
Display:
-
7 inch 9inch 10.1inch Car Monitor (option)
-
Storage:
-
TF Card
-
Website:
-
www.mcytech.com
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
360° Bird View
-
Function:
-
Waterproof, NIGHT VIEW, G-Sensor, 3D IMAGE, Split Screen, Parking Line, 360 Wide Angle
-
Voltage:
-
DC 9.5V~36V
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MCY
-
Model Number:
-
M360-13AM-C4
-
Camera Resolution:
-
AHD 720P
-
TV system:
-
PAL/NTSC
-
Waterproof:
-
IP67 Waterproof Rate
-
Lens Angle:
-
180 Wide Angle
-
Video Coding:
-
H.264
-
Car Make:
-
Truck Bus Van Motorhome
-
Display:
-
7 inch 9inch 10.1inch Car Monitor (option)
-
Storage:
-
TF Card
-
Website:
-
www.mcytech.com
Product Description

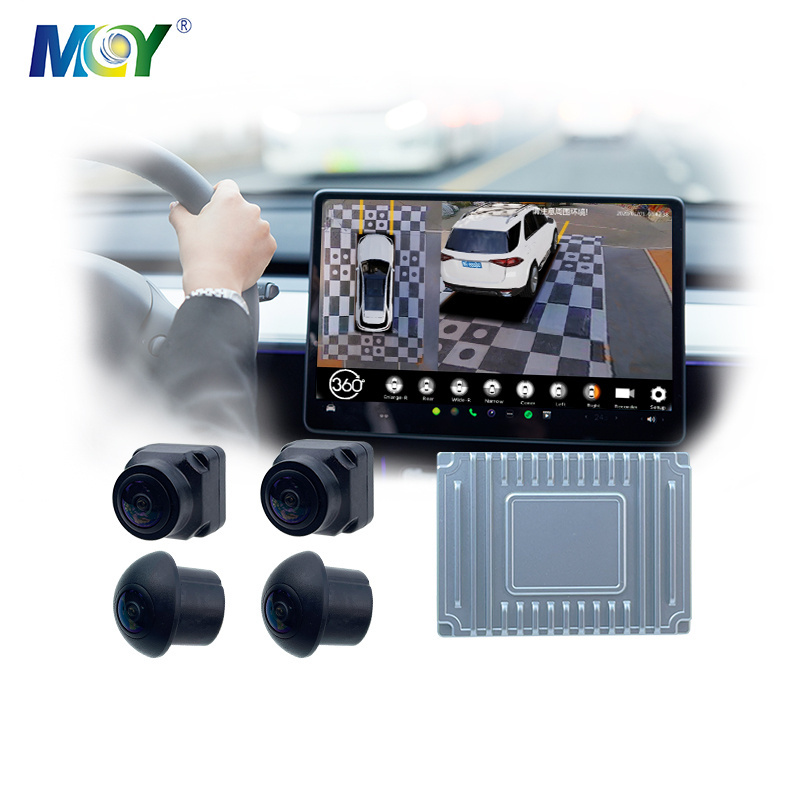

The 3D SVM Camera System synthesizes images from four cameras to create a true 3D sophisticated view of a vehicle's surroundings. The technology enables flexible omni-directional monitoring around a vehicle from a dynamically definable perspective or "free eye point." Such kind of technology can display the complete vision of the positioning and moving path of the vehicle, it covers blind spot and thus works perfectly as a safe parking and driving guide even when restricted by adjacent vehicles and objects, parking line, etc.
● Four 180 degrees ultra wide fish-eye cameras
● Seamless video merging
● Dynamic 3D mode view angle switching for better surrounding environment observation
● Independent Fish-eye calibration parameter and algorithm for each camera.
● Support alternative recording media for TF card or USB disk
● The simplest calibration steps with calibration tape and packing box,and system applicable for almost all types of vehicle which including bus, coach, truck, van, motorhome, construction vehicle and etc . Typical length of the vehicle is 5.5m, 6.5m, 10m & 13m.
● Smart power managements to save automobile’s battery
● Seamless video merging
● Dynamic 3D mode view angle switching for better surrounding environment observation
● Independent Fish-eye calibration parameter and algorithm for each camera.
● Support alternative recording media for TF card or USB disk
● The simplest calibration steps with calibration tape and packing box,and system applicable for almost all types of vehicle which including bus, coach, truck, van, motorhome, construction vehicle and etc . Typical length of the vehicle is 5.5m, 6.5m, 10m & 13m.
● Smart power managements to save automobile’s battery
|
Item
|
|
Specificaions
|
|
|
Camera
|
Sensor
|
720P Sensor
|
|
|
|
Signal to noise ratio
|
>60dB
|
|
|
|
Minimum illumination
|
0.001Lux
|
|
|
|
Dynamic range
|
82dB
|
|
|
|
Video output
|
AHD 720P
|
|
|
|
Waterproof
|
IP67
|
|
|
|
Working voltage
|
3.5-5.5V
|
|
|
|
Working current
|
about 140mA
|
|
|
The host
|
Operating voltage
|
9-16V
|
|
|
|
Working current
|
<600mA
|
|
|
|
Standby current
|
< 7mA
|
|
|
|
Operating temperature
|
-30°C-70°C
|
|
