Quick Details
-
Brand Name:
-
MOXA
-
Use:
-
Electric power communication
-
Filter:
-
802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
-
Industrial Protocols:
-
EtherNet/IP
-
Management:
-
Back Pressure Flow ControlSNMP Inform
-
MIB:
-
Bridge MIB, Ethernet
-
Redundancy Protocols:
-
RSTP, STP, Turbo Chain
-
Time Management:
-
NTP Server/Client, SNTP
-
IGMP Groups:
-
256
-
MAC Table Size:
-
8 K
-
Max. No. of VLANs:
-
64
-
Packet Buffer Size:
-
1 Mbits
Quick Details
-
Type:
-
Switch
-
Model Number:
-
EDS-408A
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
MOXA
-
Use:
-
Electric power communication
-
Filter:
-
802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
-
Industrial Protocols:
-
EtherNet/IP
-
Management:
-
Back Pressure Flow ControlSNMP Inform
-
MIB:
-
Bridge MIB, Ethernet
-
Redundancy Protocols:
-
RSTP, STP, Turbo Chain
-
Time Management:
-
NTP Server/Client, SNTP
-
IGMP Groups:
-
256
-
MAC Table Size:
-
8 K
-
Max. No. of VLANs:
-
64
-
Packet Buffer Size:
-
1 Mbits
Product Description
Product Introduction

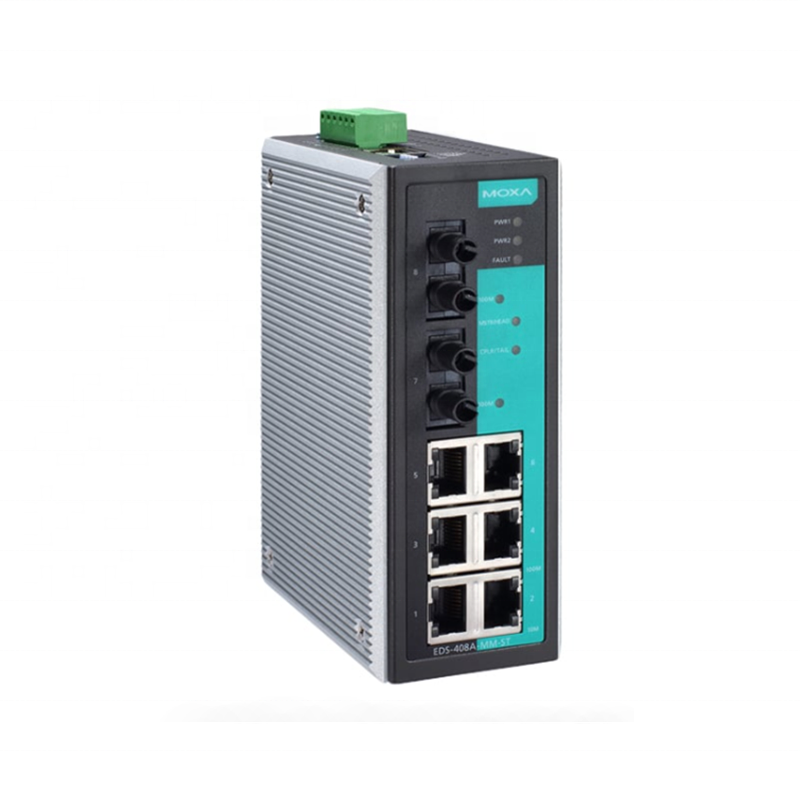

Product Images
Specification
|
Specifications
|
|
|
|
Ethernet Interface
|
|
|
|
10/100BaseT(X) Ports (RJ45 connector)
|
EDS-408A/408A-T, EDS-408A-EIP/PN Series: 8 EDS-408A-MM-SC/MM-ST/SS-SC Series: 6
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 5 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
|
|
100BaseFX Ports (multi-mode SC connector)
|
EDS-408A-MM-SC/2M1S-SC Series: 2 EDS-408A-3M-SC Series: 3 EDS-408A-1M2S-SC Series: 1
|
|
|
100BaseFX Ports (multi-mode ST connector)
|
EDS-408A-MM-ST Series: 2 EDS-408A-3M-ST Series: 3
|
|
|
100BaseFX Ports (multi-mode ST connector)
|
EDS-408A-MM-ST Series: 2 EDS-408A-3M-ST Series: 3
|
|
|
100BaseFX Ports (single-mode SC connector)
|
EDS-408A-SS-SC/1M2S-SC Series: 2 EDS-408A-2M1S-SC Series: 1 EDS-408A-3S-SC/3S-SC-48 Series: 3
|
|
|
EDS-408A-PN Series only
|
|
|
|
Standards
|
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree
Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol |
|
|
Ethernet Software Features
|
|
|
|
Filter
|
802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
|
|
|
Industrial Protocols
|
EtherNet/IP, Modbus TCP, EDS-408A-PN Series: PROFINET IO Device (Slave)
|
|
|
Management
|
Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP,
RMON, SMTP, SNMP Inform, SNMPv1/ v2c/v3, Syslog, Telnet, TFTP |
|
|
MIB
|
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
|
|
|
Redundancy Protocols
|
RSTP, STP, Turbo Chain, Turbo Ring v1/v2
|
|
|
Time Management
|
NTP Server/Client, SNTP
|
|
|
Switch Properties
|
|
|
|
IGMP Groups
|
256
|
|
|
MAC Table Size
|
8 K
|
|
|
Max. No. of VLANs
|
64
|
|
|
Packet Buffer Size
|
1 Mbits
|
|
|
Priority Queues
|
4
|
|
|
VLAN ID Range
|
VID 1 to 4094
|
|
|
Serial Interface
|
|
|
|
Console Port
|
RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)
|
|
|
DIP Switch Configuration
|
|
|
|
Ethernet Interface
|
Turbo Ring, Master, Coupler, Reserve
|
|
|
Input/Output Interface
|
|
|
|
Alarm Contact Channels
|
Relay output with current carrying capacity of 1 A @ 24 VDC
|
|
|
Power Parameters
|
|
|
|
Connection
|
1 removable 6-contact terminal block(s)
|
|
|
Input Voltage
|
All models: Redundant dual inputs EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/ 2M1S-SC/EIP/PN Series:
12/24/48 VDC EDS-408A-3S-SC-48/408A-3S-SC-48-T: ±24/±48 VDC |
|
|
Operating Voltage
|
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/ 2M1S-SC/EIP/PN Series: 9.6 to 60 VDC EDS-408A-3S-SC-48
Series: ±19 to ±60 VDC2 |
|
|
Input Current
|
EDS-408A/408A-T, EDS-408A-EIP/PN Series: 0.18 A @ 24 VDC EDS-408A-MM-SC/MM-ST/SS-SC Series: 0.30 A @ 24 VDC
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 0.35 A @ 24 VDC |
|
|
Overload Current Protection
|
Supported
|
|
|
Reverse Polarity Protection
|
Supported
|
|
|
Physical Characteristics
|
|
|
|
Housing
|
Metal
|
|
|
IP Rating
|
IP30
|
|
|
Dimensions
|
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
|
|
|
Weight
|
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC, EDS-408A-EIP/PN Series: 650 g (1.44 lb)
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 890 g (1.97 lb) |
|
|
Installation
|
DIN-rail mounting, Wall mounting (with optional kit)
|
|
|
Environmental Limits
|
|
|
|
Operating Temperature
|
Standard Models: -10 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
|
|
|
Storage Temperature (package included)
|
-40 to 85°C (-40 to 185°F)
|
|
|
Ambient Relative Humidity
|
5 to 95% (non-condensing)
|
|
|
Standards and Certifications
|
|
|
|
Safety
|
All models: EN 60950-1, UL 508 EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC Series, EDS-EIP/PN Series: UL 60950-1
|
|
|
EMC
|
EN 55032/24
|
|
|
EMI
|
CISPR 32, FCC Part 15B Class A
|
|
|
EMS
|
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V |
|
|
|
IEC 61000-4-8 PFMF
|
|
|
-60 to -19 VDC or 19 to 60 VDC. Do not mix power polarity systems.
|
|
|
|
Hazardous Locations
|
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC Series, EDS-408A-EIP/PN Series: ATEX, Class I Division 2
|
|
|
Maritime
|
EDS-408A/408A-T, EDS-408A-MM/SS Series: NK EDS-408A/408A-T, EDS-408A-MM/SS Series, EDS-408A-EIP/PN Series: DNV-GL
|
|
|
Railway
|
EN 50121-4
|
|
|
Traffic Control
|
NEMA TS2
|
|
|
Freefall
|
IEC 60068-2-31
|
|
|
Shock
|
IEC 60068-2-27
|
|
|
Vibratio
|
IEC 60068-2-6
|
|
|
MTBF
|
|
|
|
Time
|
EDS-408A/408A-T, EDS-408A-EIP/PN Series: 1,339,439 hrs EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC Series:
1,253,072 hrs EDS-408A-3S-SC-48 Series: 989,940 hrs |
|
|
Standards
|
Telcordia (Bellcore), GB
|
|
|
Warranty
|
|
|
|
Warranty Period
|
5 years
|
|
|
Package Contents
|
|
|
|
Device
|
1 x EDS-408A Series switch
|
|
|
Cable
|
1 x RJ45-to-DB9 console cable
|
|
|
Installation Kit
|
4 x cap, plastic, for RJ45 port
|
|
|
Documentation
|
1 x product certificates of quality inspection, Simplified Chinese 1 x product notice, Simplified Chinese 1 x quick installation
guide 1 x warranty card |
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
