Quick Details
-
Brand Name:
-
IWIN
-
Model Number:
-
U910
-
Product name:
-
Ultrasonic Pulse Velocity Sonic Borehole Logging Test Equipment
-
Operation method:
-
Touch screen
-
Number of channels:
-
2 channels
-
Host Size:
-
300x200x55 mm
-
Communication interface:
-
USB,Bluetooth,wifi
-
Power supply mode:
-
220V-16V AC/DC
-
Gain Accuracy (dB):
-
0.5
-
Dynamic range (dB):
-
146
-
Bandwidth (kHz):
-
1-500
-
Certification:
-
ISO, CE
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
IWIN
-
Model Number:
-
U910
-
Product name:
-
Ultrasonic Pulse Velocity Sonic Borehole Logging Test Equipment
-
Operation method:
-
Touch screen
-
Number of channels:
-
2 channels
-
Host Size:
-
300x200x55 mm
-
Communication interface:
-
USB,Bluetooth,wifi
-
Power supply mode:
-
220V-16V AC/DC
-
Gain Accuracy (dB):
-
0.5
-
Dynamic range (dB):
-
146
-
Bandwidth (kHz):
-
1-500
-
Certification:
-
ISO, CE

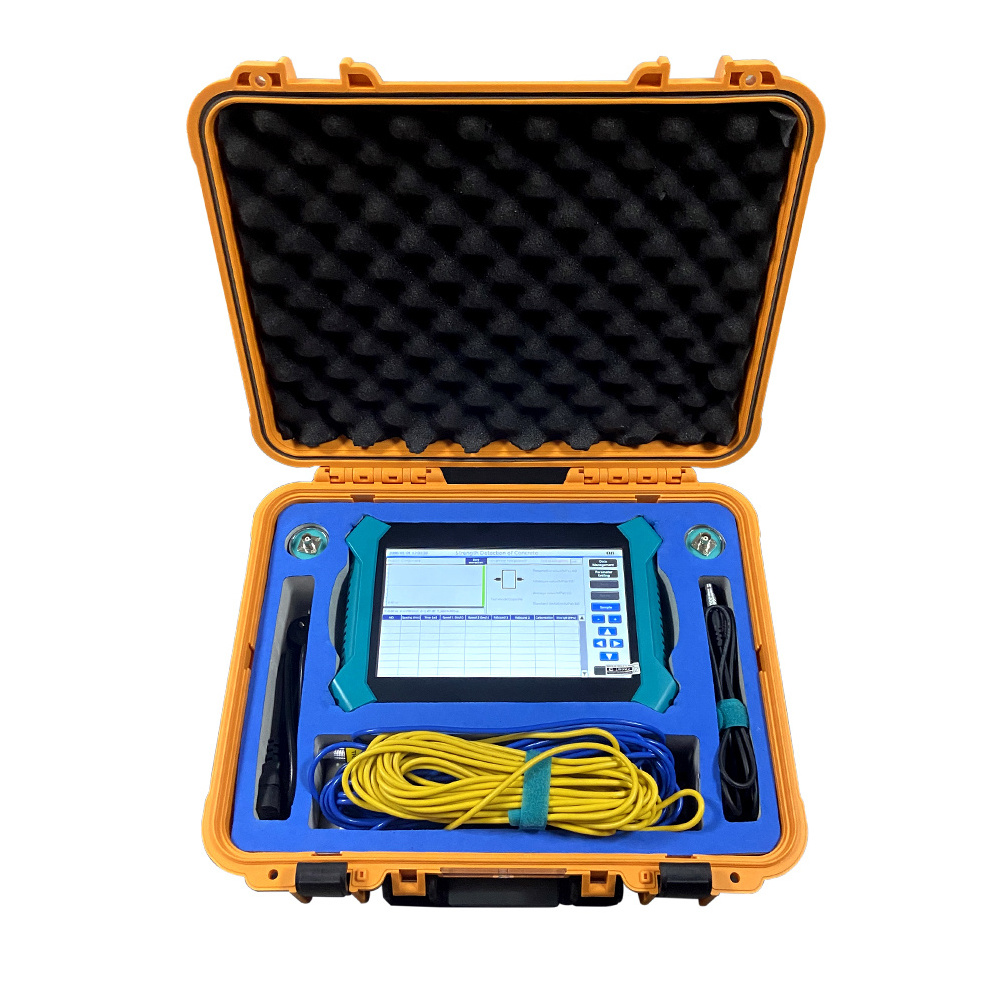

UPV Concrete Ultrasonic Pulse Velocity of Concrete
U910 / U920 ultrasonic pulse velocity tester, use for structural concrete compressive strength, crack depth, crack width and defect detection;Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
|
Product Model |
IWIN-U910 |
IWIN-U920 |
|
Master control unit |
Built-in A9 industrial control motherboard |
|
|
Display |
10.1 inch, high brightness, TFT color LCD capacitive screen |
|
|
Operational mode |
Touch screen |
|
|
Storage mode |
Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk |
|
|
Data transmission mode |
Wireless Cloud Transport (Options) |
|
|
Acquisition mode |
Single-channel manual point-by-point acquisition |
Manual Point-by-Point Collection of Single and Double Channels |
|
Number of disposable profiles |
- |
- |
|
Channel Number |
1 transmit + 1 receive |
1 transmit + 2 receive |
|
Trigger mode |
Signal triggering |
|
|
Sampling period (μs) |
0.05-409.6 Multistage Options |
|
|
Acoustic Time Accuracy (μs) |
0.05 |
|
|
Acoustic time range (μs) |
1677700 |
|
|
Width measurement function |
range: 0 ~ 10mm; |
|
|
accuracy: 0.01 mm; |
||
|
Dynamic range (dB) |
146 |
|
|
Bandwidth (kHz) |
1~500 |
|
|
Receiving Sensitivity (UV) |
≤10 |
|
|
Gain Accuracy (dB) |
0.5 |
|
|
Emission Voltage (V) |
65, 250, 500 and 1000
|
|
|
communication interface |
USB, Bluetooth, Wifi |
|
|
Working hours (h) |
≥ 8 |
|
|
Power supply mode |
Built-in lithium battery |
|
|
External 220V~16V AC/DC |
||
|
work environment |
Temperature - 10 (℃)~ + 40 (℃) |
|
|
Humidity (RH) < 90% |
||
|
Host Size (mm) |
300 x 200 x 55 |
|
