Quick Details
-
Brand Name:
-
guangyue
-
Voltage:
-
380/220V
-
Dimension(L*W*H):
-
5670*2390*1670
-
Weight (KG):
-
17000 KG
-
Type:
-
Open Mixing Mill
-
Name:
-
Factory direct sale rubber mixing mill
-
Application:
-
used for rubber plasticating, mixing, warming and sheeting
-
Bush:
-
nylon bush , bearing bush
-
Gear box:
-
planet gear box , hardened gear box
-
Certificate:
-
ISO 9001:2000/CE
-
using life:
-
more than 15 years
-
Product name:
-
two roll rubber mixing mill
-
other name:
-
open type mixing mill
-
COLOR:
-
Customers' Demand
Quick Details
-
Diameter of Roll(mm):
-
560 mm
-
Length of Roll(mm):
-
1530 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guangyue
-
Voltage:
-
380/220V
-
Dimension(L*W*H):
-
5670*2390*1670
-
Weight (KG):
-
17000 KG
-
Type:
-
Open Mixing Mill
-
Name:
-
Factory direct sale rubber mixing mill
-
Application:
-
used for rubber plasticating, mixing, warming and sheeting
-
Bush:
-
nylon bush , bearing bush
-
Gear box:
-
planet gear box , hardened gear box
-
Certificate:
-
ISO 9001:2000/CE
-
using life:
-
more than 15 years
-
Product name:
-
two roll rubber mixing mill
-
other name:
-
open type mixing mill
-
COLOR:
-
Customers' Demand

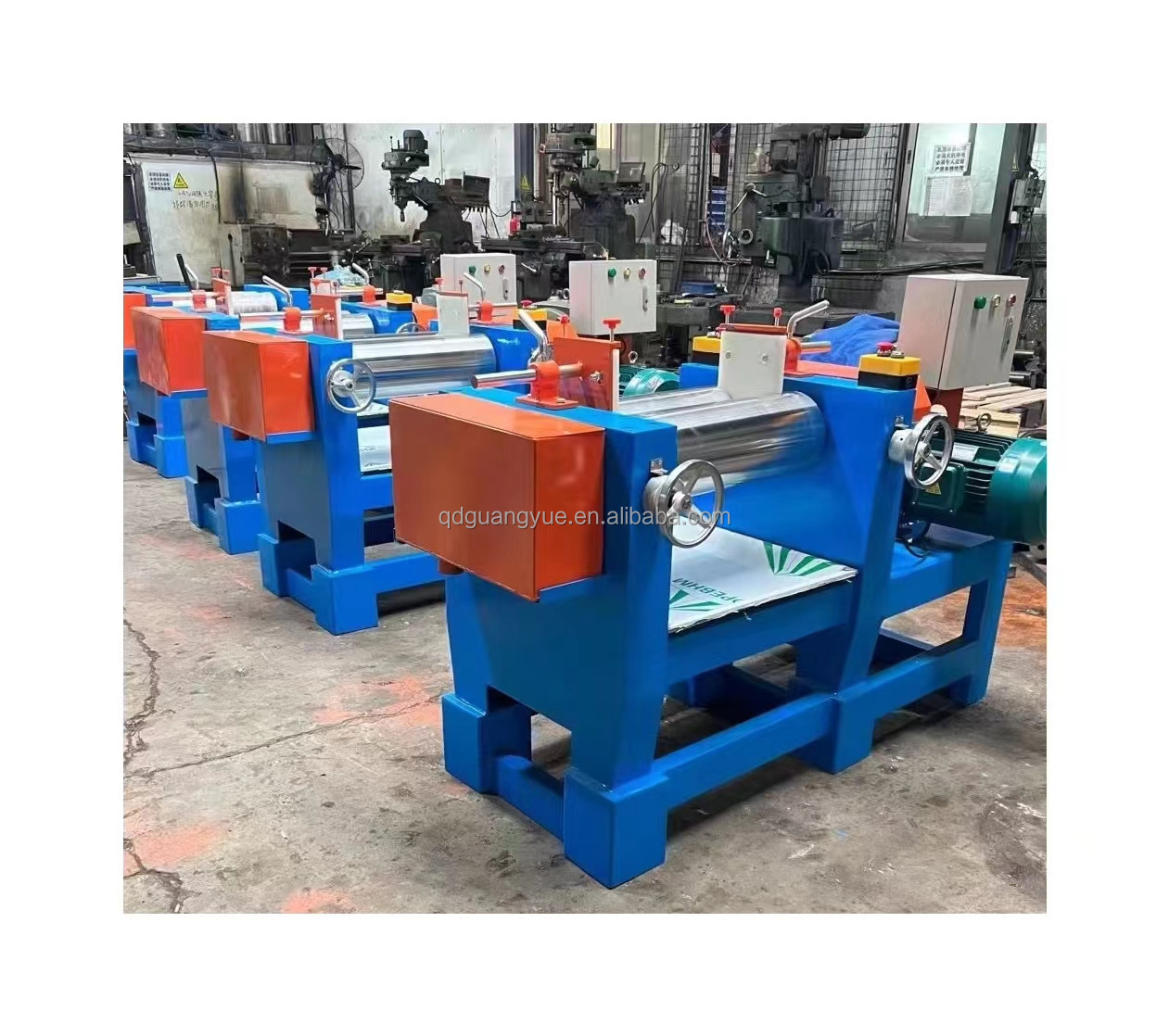

XK-450 rubber mixing mill
Application :
The mill is used for rubber plasticating, mixing, warming and sheeting.
General design
:
1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling
device, emergency stop, lubrication system and such sections as electrical controls and, etc.
2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar,
driving geras and friction gears.
Features:
1. The rolls are made of chilled alloyed castiron. Their working surfaces are of high hardness and
wearresistant. The working temperature of the bored roll is controllable by steam, cooling water or
oil that pass through them thus, to meet the requirements of milling process.
2. Roll nip adjustment is realized by hand or electricity which can obtain high accuracy and
sensitivity
Others :
Roller bearing can be divided into 3 kinds, nylon bush , bearing bush and copper bush .
Nip adjustment can be divided into manual and electric .
Stock blender can be added in light of your needs
Main parameters:
|
Parameters |
Version |
|||||
|
XK-160 |
XK-250 |
XK-400 |
XK-450 |
XK-560 |
||
|
Roll diameter (mm) |
160 |
250 |
400 |
450 |
560 |
|
|
Roll length(mm) |
320 |
620 |
1000 |
1200 |
1530 |
|
|
Front roll surface speed(m/min) |
8.89 |
15.3 |
18.65 |
24.32 |
27.72 |
|
|
Friction ratio |
1:1.35 |
1:1.1 |
1:1.27 |
1:1.27 |
1:1.2 |
|
|
Max. nip |
4 |
8 |
10 |
15 |
15 |
|
|
Feeding capacity per time |
1-2 |
10-15 |
18-35 |
25-50 |
35-50 |
|
|
Power(kw) |
5.5 |
18.5 |
37 |
55 |
90 |
|
|
Size(length*width*height) |
1160*920*1370 |
3120*1322*1500 |
4350*1850*1780 |
5670*2390*1670 |
5845*2284*1978 |
|
|
Weight(T) |
1000 |
4000 |
7600 |
12000 |
23000 |
|
Show of some products:
Reducer:
Cooling system:
Roller bearing:
Markets:
Mainly sold to Europe, America, South America, Southeast Asia and other countries.
Factory and certificates:
Factory add:huangshan econornic zone,jiaonan, Qingdao city, Shandong
