Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GROWATT
-
Model Number:
-

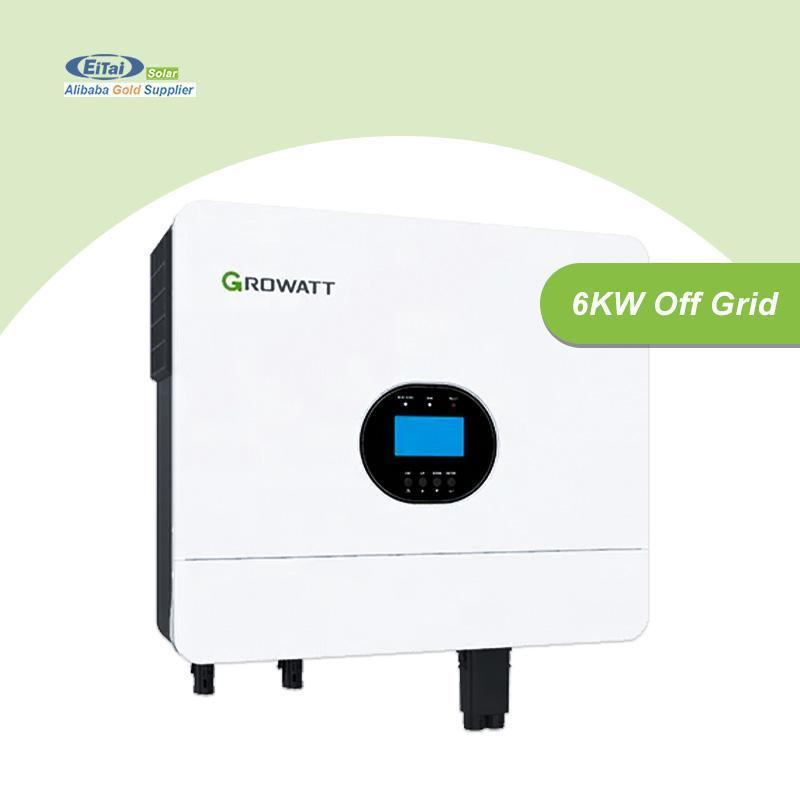

SPF 6000 ES Plus
-
Input Voltage:
-
48V
-
Output Voltage:
-
120V-450V, 230V
-
Output Current:
-
100A
-
Output Frequency:
-
50/60Hz
-
Size:
-
650*550*205mm
-
Certificate:
-
CE/IEC
-
Warranty:
-
10 Years, 5years/10years(opt)
-
Weight:
-
16.7 kg
-
Start Voltage:
-
48V
-
MPPT Efficiency:
-
99.5%~99.9%
-
Max. Efficiency:
-
97.6% - 98.2%
-
Output Power:
-
6kw
-
Battery type:
-
Lithium/Lead-acid
-
Application:
-
Solar Energy System
-
Max. Input Voltage:
-
230V
-
Display:
-
LCD
Quick Details
-
Output Type:
-
single phase
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.9%
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GROWATT
-
Model Number:
-
SPF 6000 ES Plus
-
Input Voltage:
-
48V
-
Output Voltage:
-
120V-450V, 230V
-
Output Current:
-
100A
-
Output Frequency:
-
50/60Hz
-
Size:
-
650*550*205mm
-
Certificate:
-
CE/IEC
-
Warranty:
-
10 Years, 5years/10years(opt)
-
Weight:
-
16.7 kg
-
Start Voltage:
-
48V
-
MPPT Efficiency:
-
99.5%~99.9%
-
Max. Efficiency:
-
97.6% - 98.2%
-
Output Power:
-
6kw
-
Battery type:
-
Lithium/Lead-acid
-
Application:
-
Solar Energy System
-
Max. Input Voltage:
-
230V
-
Display:
-
LCD
VRshowroom
Product Datasheet
|
Datasheet
|
SPF 6000 ES Plus
|
|
|
Battery Voltage
|
48VDC
|
|
|
Battery Type
|
Lithium/Lead-acid
|
|
|
Inverter Output
|
|
|
|
Rated Power
|
6000VA/6000W
|
|
|
Parallel Capability
|
Yes, 6 units maximum
|
|
|
AC Voltage Regulation
(Battery Mode) |
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
12000VA
|
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10ms typical，20ms Max
|
|
|
Solar Charger
|
|
|
|
Maximum PV Array Power
|
8000W
|
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 450VDC
|
|
|
Number of Independent MPP Trackers/
Strings Per MPP Tracker |
2/1
|
|
|
Max. input current per MPP tracker
|
16A
|
|
|
Maximum PV Array Open
Circuit Voltage |
500VDC
|
|
|
Maximum Solar Charge Current
|
100A
|
|
|
AC Charger
|
|
|
|
Charge Current
|
80A
|
|
|
AC Input Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
Physical
|
|
|
|
Protection Degree
|
IP20
|
|
|
Dimension (W/H/D)
|
460/395/132mm
|
|
|
Net Weight (kgs)
|
13.5
|
|
|
Operating Environment
|
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Altitude
|
<2000m
|
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
-15°C - 60°C
|
|
