Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
DONGMU
-
Model Number:
-
RS15-9
-
Place of Origin:
-
Zhejiang, China
-
Cable Length:
-
1m
-
Outlet Size:
-
3/4"
-
Power:
-
100W,120W, 100W,120W
-
Product name:
-

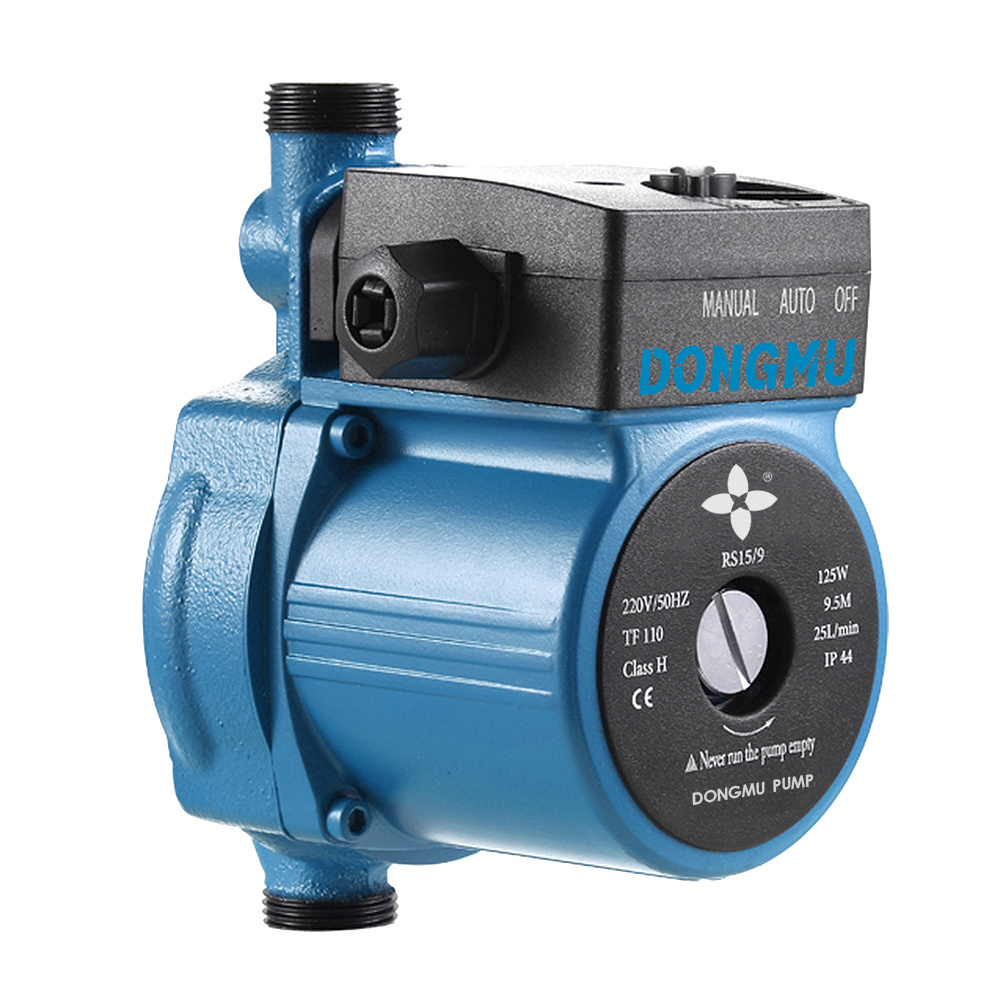

Automatic Circulation Pressure Mini Booster Water Pump For Bathroom
-
Usage:
-
Family Homes
-
Material:
-
Cast Iron,Stainless Steel,Brass
-
Feature:
-
Long Life
-
Function:
-
High Effeciency
-
Color:
-
Customized Color
-
MOQ:
-
100PCS
-
Frequency:
-
220V 50Hz/60Hz
-
Max Flow:
-
20L/min/26L/min
Quick Details
-
Application:
-
Commercial Buildings, Family Homes, Irrigation and Agriculture
-
Pressure:
-
High Pressure
-
Voltage:
-
220V 50Hz/60Hz
-
Warranty:
-
1 years
-
Brand Name:
-
DONGMU
-
Model Number:
-
RS15-9
-
Place of Origin:
-
Zhejiang, China
-
Cable Length:
-
1m
-
Outlet Size:
-
3/4"
-
Power:
-
100W,120W, 100W,120W
-
Product name:
-
Automatic Circulation Pressure Mini Booster Water Pump For Bathroom
-
Usage:
-
Family Homes
-
Material:
-
Cast Iron,Stainless Steel,Brass
-
Feature:
-
Long Life
-
Function:
-
High Effeciency
-
Color:
-
Customized Color
-
MOQ:
-
100PCS
-
Frequency:
-
220V 50Hz/60Hz
-
Max Flow:
-
20L/min/26L/min
|
PUMP MODEL
|
POWER(W)
|
MAX.FLOW(L/MIN)
|
MAX.HEAD(M)
|
INLET/OUTLET(IN)
|
NW(kg)
|
||||
|
RS15/9
|
120
|
30
|
10
|
3/4"
|
2.4
|
||||
|
Materials
|
Motor
|
Copper
|
|
|
|
||||
|
|
Bearings
|
Ceramic
|
|
|
|
||||
|
|
Rotor can
|
Stainless Steel
|
|
|
|
||||
|
|
Impeller
|
PP
|
|
|
|
||||
|
|
Pump body
|
Cast iron
|
|
|
|
||||
|
|
Shaft
|
Ceramic
|
|
|
|
||||
|
Fluids
|
Heating water
|
|
|
|
|
||||
|
|
Heating water
|
|
|
|
|
||||
|
|
Water/glycol mixtures max.mixing ratio 1:1
|
|
|
|
|
||||
|
Performance
|
Fluid temprature range
|
-10℃-+110℃
|
|
|
|
||||
|
|
Max.working pressure
|
10bar
|
|
|
|
||||
|
Power
|
|
230V,50Hz
|
|
|
|
||||
|
Ambient temperature
|
|
40℃
|
|
|
|
||||
|
Motor
|
Degree of protection
|
IP44
|
|
|
|
||||
|
|
Insulation class
|
F
|
|
|
|
||||
|
Mounting positions
|
|
pump shaft in the horizontal plane
|
|
|
|
||||
|
Pump Equipment
|
|
Screwed end single head pump
|
|
|
|
||||
|
|
|
Manual 3-speed conrol
|
|
|
|
||||
|
|
|
Non-overloading single phase motor
|
|
|
|
||||
|
|
|
Cast iron body 130/180mm port-to-port
|
|
|
|
||||
Q1:Are you a manufactory or trading company?
We are Manufacture and trading company.dedicated to develop and manufacture safe and efficient pump.
Q2.what can you buy from us?
Circulating pump,Intelligent pump,Submersible pump,Deep well pump
Q3. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
Q4:what's the delivery time?
25 to 35 days after receiving your payment in advance.
Q5:How about your service?
we have Pre-sale service, In-sale service,and After-sale service,what we pursue is long-time cooperation, so our principle is customer first.
