welding machine circuit board pcb making machine

welding machine circuit board pcb making machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.09

≥40000 Pieces

US $0.08

≥80000 Pieces

US $0.06

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: Multiprotocol Port Controller

Payment:: Paypal\TT\Western Union\Trade Assurance

Condition:: 100%New 100%original

Warranty:: 1 Year

Lead time:: 1-3 Working Days

Brand:: CXW

BOM list service:: Aceept

Sample:: Free Supply

MOQ:: 1 PCS

Shipment:: All way

Quick Details

Model Number:: PD 35W Charger

Place of Origin:: Guangdong, China

Brand Name:: CXW

Product Name:: Multiprotocol Port Controller

Payment:: Paypal\TT\Western Union\Trade Assurance

Condition:: 100%New 100%original

Warranty:: 1 Year

Lead time:: 1-3 Working Days

Brand:: CXW

BOM list service:: Aceept

Sample:: Free Supply

MOQ:: 1 PCS

Shipment:: All way

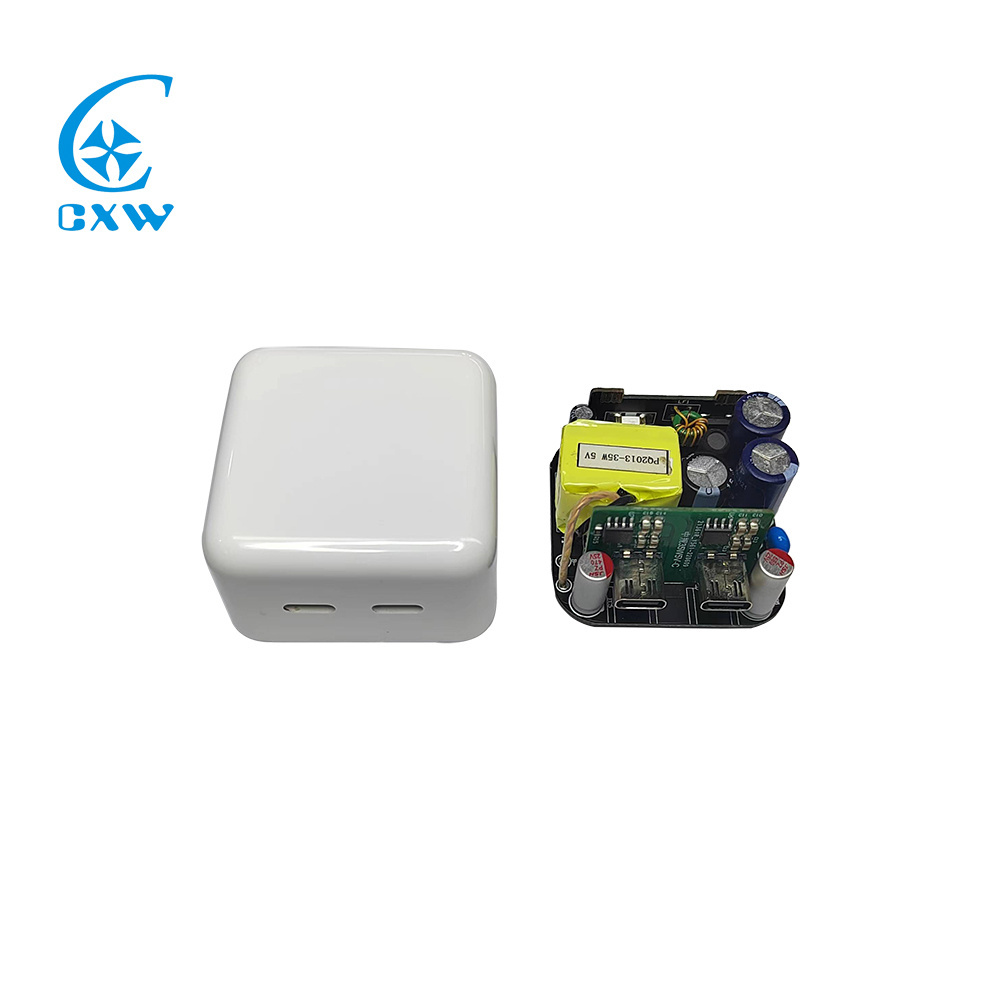

35W dual C PD fast charging solution

AC Circuit: CX7536B super silicon chip + CX7538D synchronous rectification DC Circuit: CX8523 buck chip + CX2965C protocol chip

Summary

● The solution supports protocols such as QC2.0/3.0, CHARGE TURBO 27WFCP, SCP, HVSCP, AFC, VOOC 2.0/4.0, USB BC1.2 DCP, and Apple 2.4A, and supports online upgrade of protocol chips.

● The maximum output voltage is 20V, which can charge lightweight devices such as iPhone, iPad, and HomePod

Specific parameters of 35W USB-C port PD fast charging scheme Input: 90-264V 50/60HZ 0.8A (MAX)

USB-C1 single port output: 35W 5V3A / 9V3A / 12V2.92A / 15V2.33A / 20V1.75A 35W (Max)

USB-C2 single port output: 35W 5V3A / 9V3A / 12V2.92A / 15V2.33A / 20V1.75A 35W (Max)

USB-C1+USB-C2 output: 35W (Max) 5V3A / 9V2A / 12V1.5A

Single C port independent blind insertion 35W, dual C ports simultaneously fast charging, power allocation customizable

C1	C2	total power
35W	--	35W
--	35W	35W
25W	10W	35W
20W	15W	35W
15W	20W	35W

Recommend Items

CX7536B

Standby power consumption: ＜ 75mW Operating mode: SSR Control mode: built-in MOS (switching frequency 85KHz) Application: Full voltage 40W power adapter, PD/QC charger Package: ESOP-6

CX7538C

Standby power consumption: ＜ 200KHz

Working mode: CCM/DCM/QR
Control mode: built-in MOS, voltage endurance 100V Application: 18W/20W/22.5W PD charger/adapter
Rds(on):10mR

CX8523

Withstand voltage: 30V Output voltage: ADJ Output current: 3.6A Working mode: synchronization Package: SOP-8

CX2935

Protection function: OVP/UVLO/OCP/OTP Built-in MOS Rds (On): dual C-port buck protocol chip Support protocol: QC2.0/3.0/CHARGE TURBO 27WFCP/SCP/HVSCP/AFC/VOOC 2.0/4.0/MediaTek PE protocol/USB BC1.2 DCP/Apple 2.4A Typical applications: 5V, 9V, 12V, 15V, 20V Package: QFN4x4-16L

Packing

About us

Shenzhen Cxw Technology Co., Ltd.

CXW is a high-tech enterprise integrating the R&D design and sales of IC products 15+years of power chip R&D, integration solution application service provider committed to providing customers with safe, stable, reliable and cost-effective power management solutions and high-quality turn-key services.
