Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
150 Mbps
-
Type:
-
Wireless
-
Place of Origin:
-
Fujian, China
-
Name:
-
F3446 4G Dual-SIM WIFI Router
-
Bandwidth:
-
LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)
-
TX power:
-
<23dBm
-
RX sensitivity:
-
<-97dBm
-
Standard:
-
IEEE802.11b/g/n
-
Ethernet:
-
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV
-
Serial:
-
1 RS232(or RS485/RS422) port
-
Standard Power:
-
DC 12V/1.5A
-
Security:
-
WEP, WPA, WPA2, etc. WPS (optional)
-
CPU:
-
Industrial 32bits CPU
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
150 Mbps
-
Type:
-
Wireless
-
Place of Origin:
-
Fujian, China
-
Name:
-
F3446 4G Dual-SIM WIFI Router
-
Bandwidth:
-
LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)
-
TX power:
-
<23dBm
-
RX sensitivity:
-
<-97dBm
-
Standard:
-
IEEE802.11b/g/n
-
Ethernet:
-
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV
-
Serial:
-
1 RS232(or RS485/RS422) port
-
Standard Power:
-
DC 12V/1.5A
-
Security:
-
WEP, WPA, WPA2, etc. WPS (optional)
-
CPU:
-
Industrial 32bits CPU
F3446 3G dual SIM WIFI Router 3g router ipsec M2M WIRELESS MODEM wireless communication gsm gprs ethernet modem

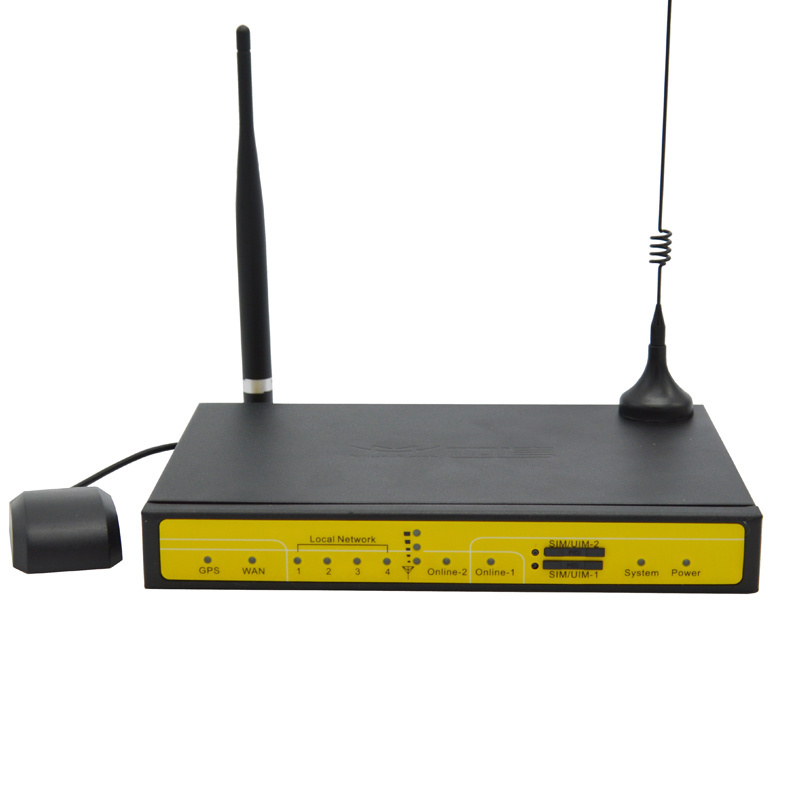

F3 446 WCDMA Dual-SIM WIFI ROUTER is a kind of cellular terminal device that provides data transmission function by public WCDMA/HSDPA/HSUPA/HSPA+ network.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system . It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect device s to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry , finance, POS, water supply, environment protection, post, weather, and so on.
LTE/WCDMA/TD-SCDMA/EVDO
Samart Link Switch Backup
Powerful WIFI
Provide More Security Deployment Scenarios
Reliable Networking And Communication
Support APN/VPDN
Convenient configuration and maintenance interface
Support Local and Remote Firmware Upgrade
Cellular Specification
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12 |
|
Bandwidth |
HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed) 5.76Mbps( Upload speed ) |
|
TX power |
<24dBm |
|
RX sensitivity |
<-109dBm |
WIFI Specification
|
Item |
Content |
|
Standard |
IEEE802.11b/g /n |
|
Bandwidth |
IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
|
Security |
WEP, WPA, WPA2, etc. WPS (optional) |
|
TX power |
20dBm( 11n ) , 24 dBm( 11g ), 26dBm ( 11b ) |
|
RX sensitivity |
<-72dBm@54Mpbs |
Hardware System
|
Item |
Content |
|
CPU |
Industrial 32bits CPU |
|
FLASH |
16 MB(Extendable to 64 MB) |
|
SD RAM |
128 MB |
Interface type
|
Item |
Content |
|
WAN |
1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
|
LAN |
4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
|
Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400 ~ 1152 00 bps |
|
Indicator |
"Power", "System", "Online -1 ", "Online -2 ", " Local Network ", "WAN", "W IFI ", " S ignal S trength" |
|
Antenna |
Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
|
SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
|
Power |
Standard 3-PIN power jack, reverse-voltage and over - voltage protection |
|
Reset |
Restore the router to its original factory default settings |
Power supply
|
Item |
Content |
|
Standard Power |
DC 12V/1.5A |
|
Power range |
DC 5~3 6 V |
Consumption
|
Working condition |
Consumption |
|
Standby |
272 ~ 295 mA@12VDC |
|
Communication |
283 ~ 360 mA@12VDC |
|
Schedule Shutdown |
2.57~4.2 mA@12DVC |
Physical Characteristics
|
Item |
Content |
|
Housing |
Iron, providing IP30 protection |
|
Dimensions |
206x135x28 mm |
|
Weight |
790g |
Environmental Limits
|
Item |
Content |
|
Operati ng T emperature |
- 3 5~+ 75 ºC ( -31 ~+ 167℉) |
|
Storage T emperature |
-40~+85ºC ( -40~+185℉ ) |
|
Operati ng Humidity |
95% ( unfreezing) |
