Quick Details
-
Voltage:
-
380v
-
Power:
-
10kw
-
Dimension(L*W*H):
-
200x175x2300
-
Weight:
-
5000 kg
-
Product name:
-
box making machine fully automatic
-
Model:
-
OK-SBX01
-
Filling material:
-
Liquid water
-
Function:
-
cut print and making to box
-
Product:
-
Paper box
-
Keywords:
-
Paper Box Making Machine
-
box size:
-
different size box
-
Control:
-
PLC+ Touch Screen
-
Finished Products:
-
paper box
Quick Details
-
Production Capacity:
-
120 pcs/min
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ok
-
Voltage:
-
380v
-
Power:
-
10kw
-
Dimension(L*W*H):
-
200x175x2300
-
Weight:
-
5000 kg
-
Product name:
-
box making machine fully automatic
-
Model:
-
OK-SBX01
-
Filling material:
-
Liquid water
-
Function:
-
cut print and making to box
-
Product:
-
Paper box
-
Keywords:
-
Paper Box Making Machine
-
box size:
-
different size box
-
Control:
-
PLC+ Touch Screen
-
Finished Products:
-
paper box
Products Introduction

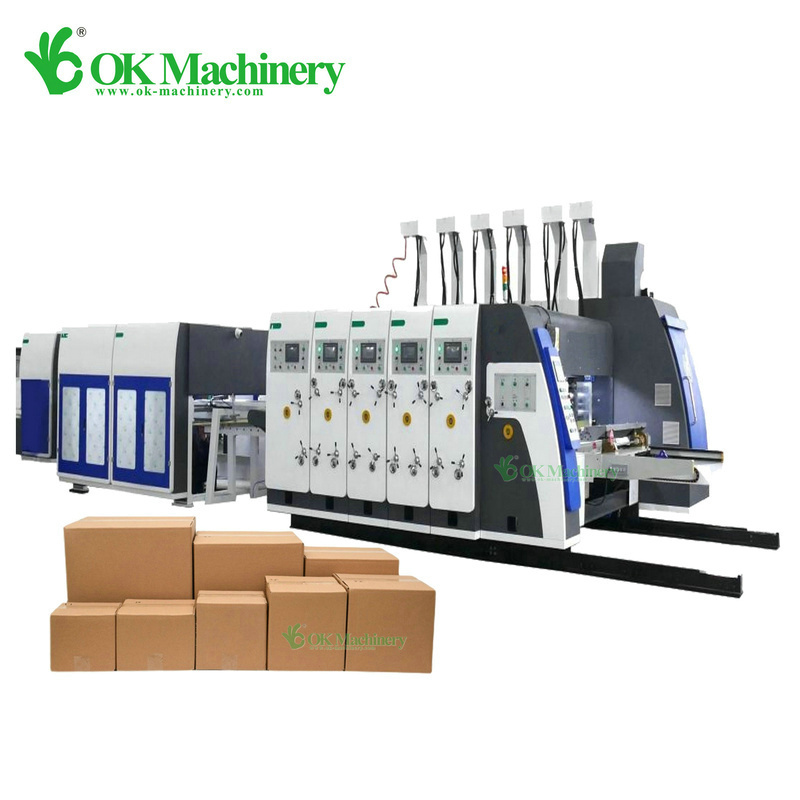

BKBK01 Fully Automatic Corrugated Board Printing
paper box making machine fully automatic
Motorized control machine units move, the warming belt is alarming when moving, make sure working safety.
Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation.
When machine units separate, each brake system work automatically, make sure gear positioning accurately,
fix printing phase, ensure gear engaged correct when machine units lock. Machine unit adopts pneumatic
locking system. Main motor frequency conversion control, energy saving. Main motor with start protecting device,
machine can not run when machine units aren’t lock.
Machine unit move
Application
Technical Parameters
|
Model :
|
OK-SBX01
|
Min coverage size(mm):
|
350mm*700mm
|
|
|
Machine inside width (mm):
|
2200MM
|
Design speed（PCS/Min）:
|
150pcs/min
|
|
|
Max feeding paper size(mm):
|
1200mm*2000mm
|
Working speed（PCS/Min）:
|
100pcs/min
|
|
|
Max effective printing size(mm)
|
1200mm*1800mm
|
Standard Thickness of printing plate:
|
6mm
|
|
|
positive knife min slotting space (sloting unit independently)
|
150*150*150*150
|
Printing precision
|
±0.5mm
|
|
|
negative knife min slotting space (sloting unit independently)
|
280*80*280*80
|
Thickness of cardboard
|
1.2-9mm
|
|
|
Max die cutting size(mm)
|
1200mm*1900mm
|
Wall thickness
|
40mm
|
|
Detail of OK Machine
3 in 1 bottle water procution line video . this video will show you washing bottle inside and outside , filling water into bottle put cap on bottle and capping it . after all will inlet with Flat conveyor belt .
Bottle line automatic water filling machine /water filling machine for sale
Related Products
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, gluing and so on. Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision. The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit. Motorized digital phase adjustment with “automatic zero return” and “memories” function ，PLC control with touch screen .The machine adopts lead edge , low demand for the cardboard, fast.
1.Crease wheel
Using high quality steel, with grinding process and plating hard chromium.
Pressure roller surface be grinded and hard chromium plating ,do balance processing
Equipped special design wheel is keep from crack.
Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
2. Slot knife adjustment on axial direction
Seamless steel pipe is selected and run smoothly after grinding and balancing.
Slotted knife width 7mm, alloy material, after heat treatment grinding, tooth shape slotted knife, sharp edge, high precision. The slotting knife box height adjustment adopts four knife synchronous adjustment, and the slotting blade adopts four knife manual synchronous transverse movement. Hand-tuned fast clearance fine-tuning self-locking device with dial display adjustment direction and value
3.Slotting phase adjustment
Structure of planetary gear type
Slotting phase adopt 360 degree electric synchronous adjustment.
Company Introduction
BKBK01 Automatic liquid plant water bottling and capping machine production line bottle water filling machine
After Sales Service
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. automatic water filling machine video
BKCC01 Automatic water filling line plant/water filling production line/water filling machine
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. automatic water filling machine video
BKCC01 Automatic water filling line plant/water filling production line/water filling machine
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
