Discount Diamond Pattern HDPE High Density PE Plastic Temporary Road Mats For Swamp

Discount Diamond Pattern HDPE High Density PE Plastic Temporary Road Mats For Swamp

FOB Reference Price: Get Latest Price

≥500 Pieces

US $3.5

≥1000 Pieces

US $3

≥5000 Pieces

US $2.5

≥10000 Pieces

US $1.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: OEM ODM

Thickness:: 6-300mm

Size:: 4'x8';customized, All size available

Product name:: floor protection mat for large vehicles on site

Color:: white,black,yellow,red,blue

Application:: Construction, civil engineering, drilling ,landscaping

Feature:: Waterproof,light, portable,easy to use, sample to install

Certificate:: ISO9001:2008

Shape:: Sheet\board\rod\plate\rod\bar\strips\shaped Parts

Density:: 0.93-0.98g/cm3; temporary road mat

Abrasion:: 80,steel=100 ; ground mat

Breaking Elongation:: >300% ; road mat

Quick Details

Processing Service:: Cutting, Moulding, can be customized

Place of Origin:: Shandong, China

Brand Name:: QICHENG

Model Number:: OEM ODM

Thickness:: 6-300mm

Size:: 4'x8';customized, All size available

Product name:: floor protection mat for large vehicles on site

Color:: white,black,yellow,red,blue

Application:: Construction, civil engineering, drilling ,landscaping

Feature:: Waterproof,light, portable,easy to use, sample to install

Certificate:: ISO9001:2008

Shape:: Sheet\board\rod\plate\rod\bar\strips\shaped Parts

Density:: 0.93-0.98g/cm3; temporary road mat

Abrasion:: 80,steel=100 ; ground mat

Breaking Elongation:: >300% ; road mat

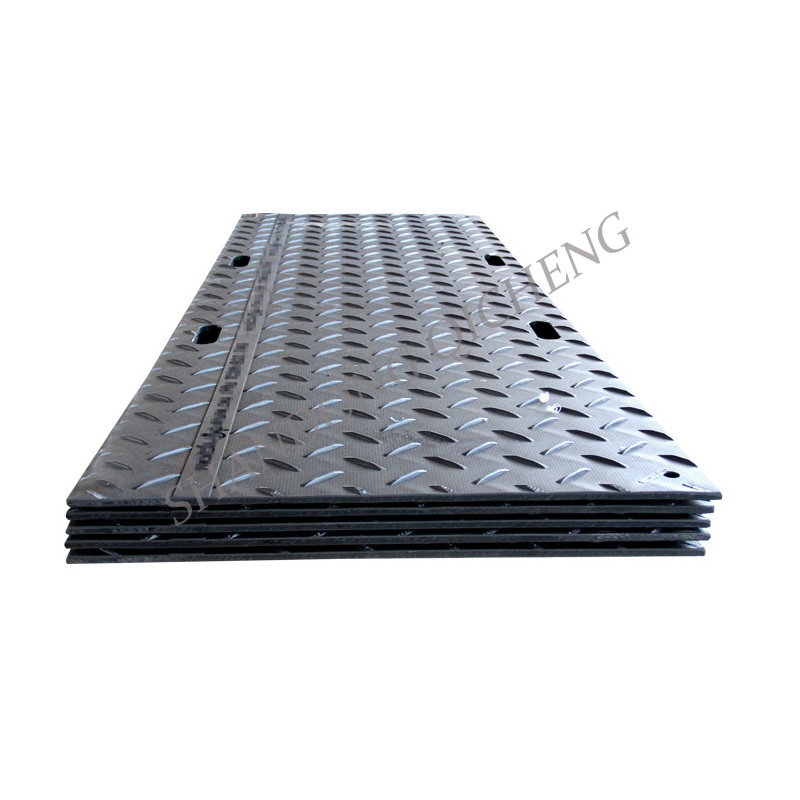

Products Description

Temperarary Road Mats

UHMWPE/HDPE mats as the temporary roads, avoid the damage to environment and roads, improve the work efficiency, reduce the effect cased on construction site. Now

the road mats are widely used in the construction project, oil industry,drill project,

land transport etc..

Characteristic :
★Heavy Duty Road Mat, bear higher load

★Incredibly Tough & Flexible
★Unique Dual Grip Capability

★Environmental

★Easier transportation

★Save cost and used many times

★Color and Size is made according to the customer's requirements

★ Unique skid resistance surface ,Protects against severe ruting and eco damage to ground and sensitive sites.

THE ADVANTAGE OF ROAD MATS !

Details Images

Product Paramenters

①Material Type of Temperarary Road Mats

There are two kinds material : one kind is Ultra High Molecular Weight Polyethylene (UHMWPE) ,another kind is High Density Polyethylene .
The property for HDPE road mats and UHM-PE road mats :

Item	Units	ASTM test	HDPE	UHMW-PE
Tensile strength	PSI	D-638	4000	3100
Flexural modulus	PSI	D-790	200000	110000
Notched impact	Ft-lbs/in of notch	D-256	1.3	18
Heat deflection temperature at 66psi	℉	D-648	172	-
Maximum continuous service temperature in air	℉		-	180
Water absorotion	%	D-570	0.10	slight
Coeff icient of liner thermal expansion	In/in℉10-5	D-696	7	11.1

②Standard size for road mats

③ Textured surface type:

The first and second is extruded type;the last two type are pressed type.

④Different Connection way for between road mats :

The connection parts are galvanized iron with strong structure .

Property	Standard	Unit	UHMWPE-M4
Physical Properties
Density	GB1033-86	g/cm3	0.93
Water Absorption	GB1034-86	%	< 0.01
Max Working Temperature	-	°C	90
Minimum Working Temperature	-	°C	-269
Mechanical Properties	-	-	-
Tensile Strength	GB1040-79	MPa	21
Ultimate Tensile Strength	GB1040-79	MPa	38
Elongation	GB1040-79	%	12
Break Elongation	GB1040-79	%	340
E-Modulus	GB1040-79	MPa	820
Notched Impact Strength	GB1843-80	KJ/m2	ok
Bending Strength	GB9341-88	MPa	26
Bending E-Modulus	GB9341--88	MPa	760
Compression Strength (deformation 10%)	GB1041-79	MPa	27
Compression E-Modulus	GB1041-79	MPa	550
Shear Strength	GB1041-79	MPa	33
Hadrness	GB2411-80	Shore D	65
Static Coefficient of Friction	GB10006-88	-	0.07-0.15
Dynamic Coefficient Friction	GB10006-88	-	0.07-0.11
Thermal Properties	-	-	-
Coefficient of Linear Expansion	GB1036-89	°C-1	1.5×10-4
Coefficient of Heat Conductivity ( 23 °C )	GB3399-82	Cal/cm sec °C	8.5×10-4
Special Heat ( 23 °C)	GB3399-82	Cal/g°C	0.44
Electrical Properties	-	-	-
Volume Resistivity	GB1410-78	Ohm cm	>1015
Surface Resistivity	GB1410-78	Ohm	>1015
Dielectric Constant ( 1MHZ )	GB1409-78	-	3
Dielectric Strength	GB1408-78	Kv/mm	70

Production Process

Our Temperarary Road Mats use virigin

raw material ,it could guarantee that our

final products are with higher quality and longlife time .

The mix process for mixing raw material with evenly and high efficiency.

The forming process -we use high precision forming machine to produce the road mats with higher capacity .

The process of finishing ,we could make different surface according to customer's reqiurements .

The testing process ,each batch of our products will be tested by our standard test room .So we could gurantee that our products are with qualified goods after leaving our factory .

The packing and transported process .

We will make perfect package for our each batch of goods .

Application

1)Our road mats is used in the construction project !

Temporary access roadways, robust working platforms for cranes or to form large working pads making them ideal for creating a salld foundation for staging, generators and lighting rigs;

2)The road mats is used in oil and gas project for our clients!

Land based Oil & Gas exploration, extraction and delivery (pipeline) projects ,as the higher strength, it is welcomed for our clients !

3) The road mats in Construction&Transmission !

The requirement for non-conductive (EPZ) work areas and the avoldance of environmental damage to sensitive eco systems and cross contamination between sites
