Quick Details
-
Dimension(L*W*H):
-
2250mm*750mm*2200mm
-
Weight:
-
1000 KG
-
Features:
-
Normal/Side Backhoe shift
-
Product name:
-
Backhoe Excavator
-
Type:
-
Tractor Implement
-
Keywords:
-
Tractor Loader Backhoes
-
Engine power:
-
16-150hp
-
Advantage:
-
Flexible Cost Saving
-
Swinging:
-
140
-
Operating pressure:
-
16mpa
-
Digging height:
-
2500-4300mm
-
Excavation depth flat bottom:
-
1600-3350mm
-
Transfer height:
-
1400-3000mm
Quick Details
-
Application:
-
For digging
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Geetien/OEM
-
Dimension(L*W*H):
-
2250mm*750mm*2200mm
-
Weight:
-
1000 KG
-
Features:
-
Normal/Side Backhoe shift
-
Product name:
-
Backhoe Excavator
-
Type:
-
Tractor Implement
-
Keywords:
-
Tractor Loader Backhoes
-
Engine power:
-
16-150hp
-
Advantage:
-
Flexible Cost Saving
-
Swinging:
-
140
-
Operating pressure:
-
16mpa
-
Digging height:
-
2500-4300mm
-
Excavation depth flat bottom:
-
1600-3350mm
-
Transfer height:
-
1400-3000mm
Detailed description

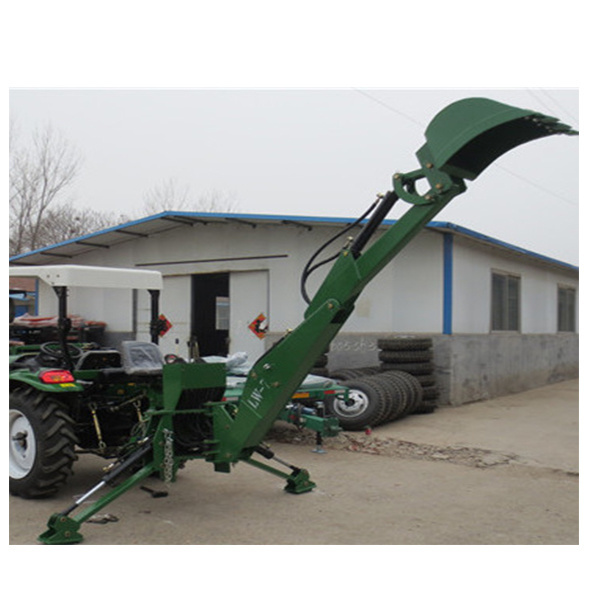

A towed backhoe is one that can be transported by vehicle. Hooked or connected to a vehicle so as to be moved from one position to another by a vehicle towing the backhoe. For projects that require a backhoe to move easily, a towed backhoe may be a simpler and more affordable option. Its smaller size allows it to fit in smaller Spaces, making it ideal for specific jobs. The smaller size of the backhoe also means that in addition to cars, trucks or other vehicles, tractor, lawn mower or ATV towing can be used.
Manufacturing Technique
|
Model
|
LW—6
|
LW—7
|
LW—8
|
LW—9
|
LW—10
|
LW—12
|
|
Macthed power
|
16-35 hp
|
25-75 hp
|
45-85hp
|
50-100 hp
|
70—125hp
|
80-150
|
|
Excavation depth
|
1850 mm
|
2150 mm
|
2640 mm
|
2900 mm
|
3000 mm
|
3500
|
|
Excavation depth flat bottom
|
1600 mm
|
2000 mm
|
2500 mm
|
2760 mm
|
2800 mm
|
3350
|
|
Digging height
|
2500 mm
|
3400 mm
|
3510 mm
|
3900 mm
|
4000 mm
|
4300
|
|
Transfer height
|
1400 mm
|
1760 mm
|
2000 mm
|
2362 mm
|
2637 mm
|
3000
|
|
Discharge height
|
1733 mm
|
1878 mm
|
1952 mm
|
2413 mm
|
2540 mm
|
2770
|
|
Reaching the midline digging radius
|
2800 mm
|
3360 mm
|
3930 mm
|
4377 mm
|
4586 mm
|
4800
|
|
Bucket operating weight
|
1300 kg
|
1200 kg
|
1600 kg
|
1900 kg
|
2600 kg
|
2700
|
|
Arm digging force
|
790 kg
|
950 kg
|
1000 kg
|
1270 kg
|
1720 kg
|
1900
|
|
Bucket rotation Angle
|
160°
|
160°
|
160°
|
150°
|
150°
|
172°
|
|
Swinging
|
140°
|
140°
|
140°
|
160°
|
160°
|
180°
|
|
Operating pressure
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
|
Bucket width
|
300 mm
|
370 mm
|
420 mm
|
470 mm
|
520 mm
|
570 mm
|
|
Bucket capacfty
|
0.03 m3
|
0.036 m3
|
0.048 m3
|
0.054 m3
|
0.06 m3
|
0.07 m3
|
Product application
