Quick Details
-
Warranty:
-
5years
-
Brand Name:
-
HTSOLAR
-
Model Number:
-
HT-F100W-32P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1050*540*3mm
-
Structure:
-
TPT+EVA+Sunpower solar cell+EVA+TPT
-
Back material:
-
ETFE
-
Frame::
-
frameless
-
VMP:
-
18V
-
Connector:
-
plug-in connector
-
Operating Temperature:
-
-40°C to +90°C
-
IMP:
-
6.6A
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PERC, TOPCON
-
Panel Efficiency:
-
17.6
-
Warranty:
-
5years
-
Brand Name:
-
HTSOLAR
-
Model Number:
-
HT-F100W-32P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1050*540*3mm
-
Structure:
-
TPT+EVA+Sunpower solar cell+EVA+TPT
-
Back material:
-
ETFE
-
Frame::
-
frameless
-
VMP:
-
18V
-
Connector:
-
plug-in connector
-
Operating Temperature:
-
-40°C to +90°C
-
IMP:
-
6.6A
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

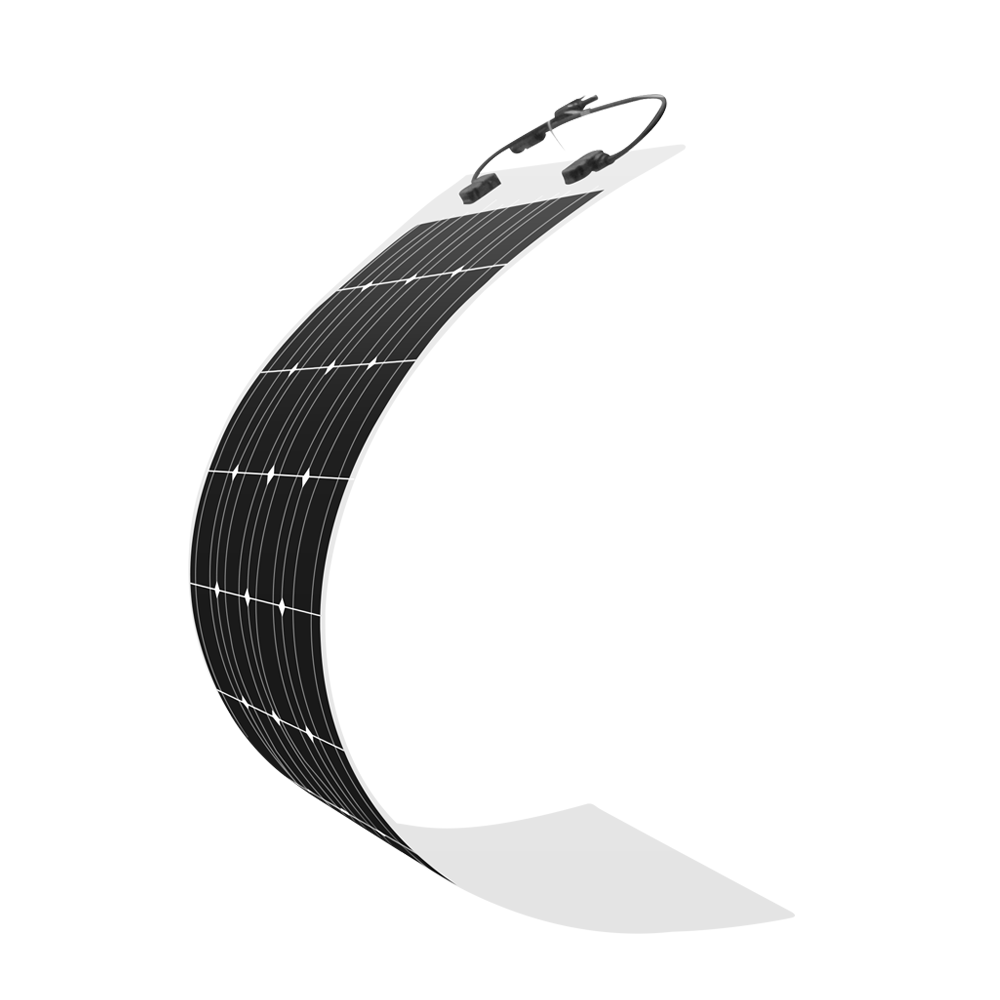

Widely Using
> Easy installation
> 30~50 degree bendable
> Use for camping,home and travelling.
>RV/VANS/AIRCRAFT/BOAT/SUV/CAR/GOLF CART
|
Maximum power:
|
150W
|
180W
|
100W
|
|
Size:
|
1480*680*3MM
|
1480*680*3MM
|
1190*540*3mm
|
|
Open Circuit Voltage:
|
21.6
|
21.88
|
21.6V
|
|
Short Circuit current:
|
6.95
|
8.23
|
6.14A
|
|
Maxmium power voltage:
|
22.6
|
23.5
|
17.9V
|
|
Maximum power current:
|
7.23
|
8.56
|
5.59A
|
|
Cell efficiency:
|
19.6%
|
19.7%
|
19.5%
|
|
MAX Power
|
100W
|
|
Open-Circuit Voltage(Voc)
|
22.09
|
|
Optimum Operating Voltage(Vmp)
|
18.26
|
|
Optimum Operating Current(Imp)
|
5.47
|
|
Size
|
1190*540*3MM
|
|
No. of Cells
|
36(4*9)
|
|
MAX Power
|
150W
|
|
Open-Circuit Voltage(Voc)
|
21.3
|
|
Optimum Operating Voltage(Vmp)
|
17.8
|
|
Optimum Operating Current(Imp)
|
8.98
|
|
Size
|
1480*670*3MM
|
|
No. of Cells
|
36(4*9)
|
|
MAX Power
|
180W
|
|
Open-Circuit Voltage(Voc)
|
23.4
|
|
Optimum Operating Voltage(Vmp)
|
19.8
|
|
Optimum Operating Current(Imp)
|
9.09
|
|
Size
|
1480*670*3MM
|
|
No. of Cells
|
36(4*9)
|
