- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leizhan
-
Voltage:
-
220V,380V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
1500 kg
-
Core Components:
-
Reject separator
-
PLC Brand:
-
Leizhan
-
Product name:
-
Paper machine reject sorter
-
Function:
-
Paper pulping clean
-
Material:
-
Stainless steel or carbon steel
-
Capacity(t/d):
-
15-60
-
Working speed:
-
High
-
Automatic Grade:
-
Full automatic
-
Experience:
-
40 years
-
After-sales Service Provided:
-
Online Support
-
Keyword:
-
Reject separator
-
Key words:
-
Paper pulp machine
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
15-60T/D
-
Max. workable width:
-
as design
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leizhan
-
Voltage:
-
220V,380V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
1500 kg
-
Core Components:
-
Reject separator
-
PLC Brand:
-
Leizhan
-
Product name:
-
Paper machine reject sorter
-
Function:
-
Paper pulping clean
-
Material:
-
Stainless steel or carbon steel
-
Capacity(t/d):
-
15-60
-
Working speed:
-
High
-
Automatic Grade:
-
Full automatic
-
Experience:
-
40 years
-
After-sales Service Provided:
-
Online Support
-
Keyword:
-
Reject separator
-
Key words:
-
Paper pulp machine

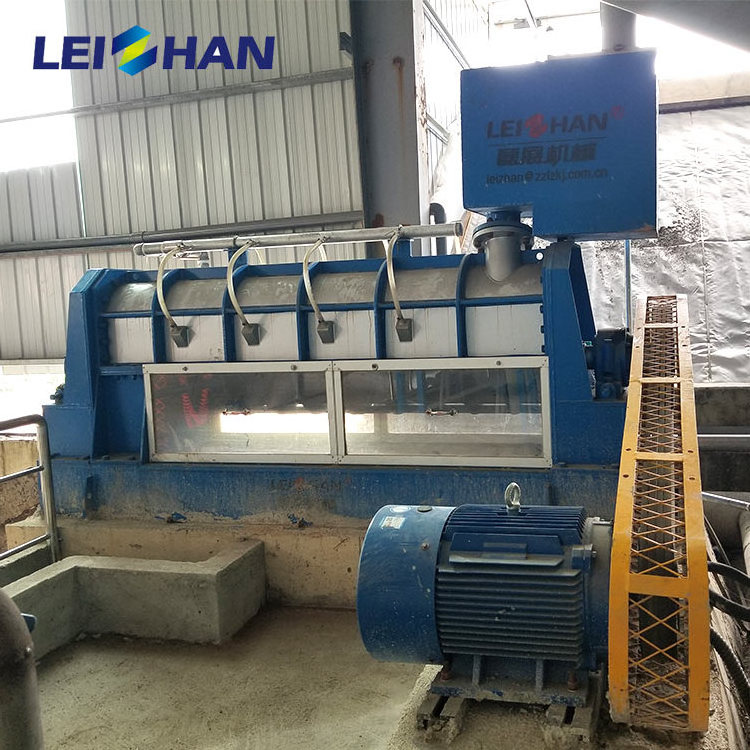

Paper Mill Waste Paper Recycling Machine Pulping Equipment Reject Sorter Reject Separator
Reject separator is the main equipment used for defibering and separating impurities in tailing pulp. It is mainly used in screening system as a part of waste paper processing line or used with other vibration screen It use of closed operation, nosplash, improve the working environment, continuous slag, clogging the sieve, the treatment effect is good, with ease fiber function, reducing fiber loss, reduce production costs.
Working Principle
PZ series slag discharge separator (reject separator) is an ideal equipment in the waste paper pulping system using close operation system, no water splash, changing the working condition. Continuous discharge, not easy to jam sieve plate, with good treatment effect. Which also have fiber relief function, reduce the fiber loss and production cost.
Technical Data
|
Model |
PZ1 |
PZ2 |
|
Production C apacity(t/d) |
15-30 |
30-60 |
|
Motor P ower (Kw) |
22 |
30-37 |
Features
1. Used for fiber relief and impurities separate for tailing in the coarse screen system for waste paper pulp.
2. Specially designed rotor produce centrifugal force in the process of high speed rotation and backwash water can relief pulp effectively, achieve pulp and impurities easily separate.
3. Closed Working condition, clean environment.
4. Openable upper cover makes it easy and convenient to maintain.
separated impurities
1. International package (Wooden case, carbon cast and pallet);
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation and some small parts can be transported by air
Note: Details follow contract.
♥ We provide technology consultation
♥ We provide project evaluation
♥ We provide details design of factory
♥ We provide installing and testing the whole production line
♥ We supply spare part for long time
