Quick Details
-
Size:
-
13500X3000X1550MM
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Hydraulic Tipper Trailer Low Bed Truck Builders Trailer
-
Keywords:
-
low bed truck
-
Axle:
-
13 Ton Fuwa Brand
-
Suspension:
-
Mechanical Suspension
-
Main Beam:
-
Height:500mm 14/8/16mm
-
Function:
-
Transport Heavy Duty Equipment
-
Landing Gear:
-
Standard 28Ton
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Usage:
-
Heavy Equipment Machinery Transport
-
Brake System:
-
Dual Line Braking System
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
25001-30000 kg
-
Brand Name:
-
Eleph
-
Size:
-
13500X3000X1550MM
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Hydraulic Tipper Trailer Low Bed Truck Builders Trailer
-
Keywords:
-
low bed truck
-
Axle:
-
13 Ton Fuwa Brand
-
Suspension:
-
Mechanical Suspension
-
Main Beam:
-
Height:500mm 14/8/16mm
-
Function:
-
Transport Heavy Duty Equipment
-
Landing Gear:
-
Standard 28Ton
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Usage:
-
Heavy Equipment Machinery Transport
-
Brake System:
-
Dual Line Braking System

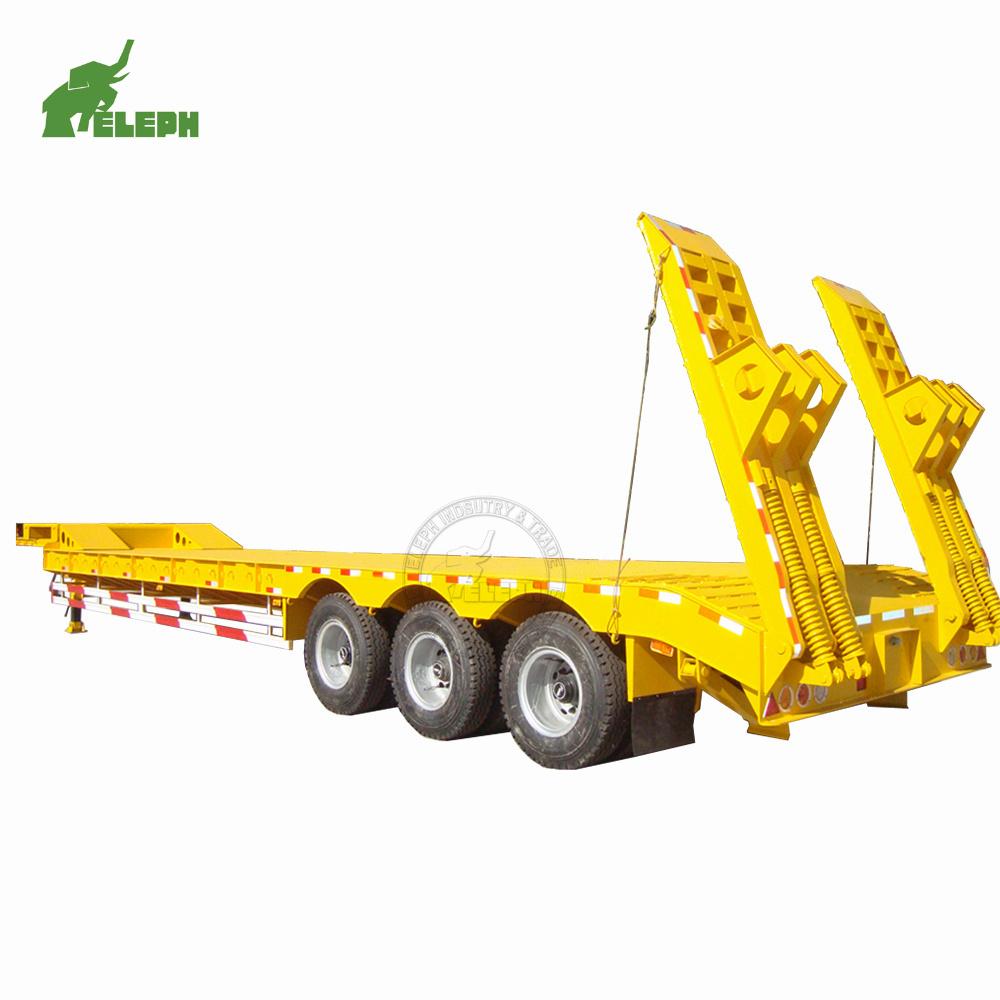

Heavy Duty Low Bed Semi Trailer
|
Heavy Duty Machinery Transport Lowbed Truck Semi Trailer |
||||
|
Model |
ALP9350 LBST |
|||
|
Dimension(Optional) |
Axle No. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
Dimension Made by Customer Machine Size, Standard Length is 13500mm (contact supplier for more) |
1 |
20 |
4 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
2 |
40 |
8 |
||
|
3 |
60 |
12 |
||
|
4 |
80 |
16 |
||
|
5 |
100 |
20 |
||
|
Manufacture |
Qingdao Eleph Industry & Trade Co., Ltd |
|||
|
Wheel Base (mm) |
1310 |
|||
|
leaf-spring Pcs |
10 |
|||
|
Axle |
13/16/18 T |
|||
|
Suspension |
Heavy Duty Mechanic Suspension with Leaf Springs |
|||
|
Main Beam Material |
Q345B manganese plates, automatic submerged arc welded |
|||
|
Brake System |
Dual line braking system with automatic braking system/chambers |
|||
|
Brake Air Chamber |
Double Model |
|||
|
Kingpin |
2' or 3.5' Interchangeable |
|||
|
Platform |
4-6 mm diamond steel plate |
|||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
|||
|
Brake Air Chamber |
Four double and two single chamber |
|||
|
Electrical System |
24V, 7core socket, lights according to European standards. |
|||
|
Mainbeam Size |
Upper plate |
14mm |
||
|
Lower plate |
16mm |
|||
|
Mid Web |
8 mm |
|||
|
Height |
500-520mm |
|||
|
Spare tire carrier |
2 sets |
|||
|
Color and Logo |
Depends on the buyer’s requirement. |
|||
|
Pin Height |
According to the height of the tractor saddle. |
|||
