Quick Details
-
Brand Name:
-
WUPP
-
Model Number:
-
CS-530A1
-
Car Make:
-
DC12V-24V Universal
-
Color:
-
Black
-
Input:
-
DC12V-24V
-
Certificate:
-
CE/ROHS/UL
-
Product Name:
-

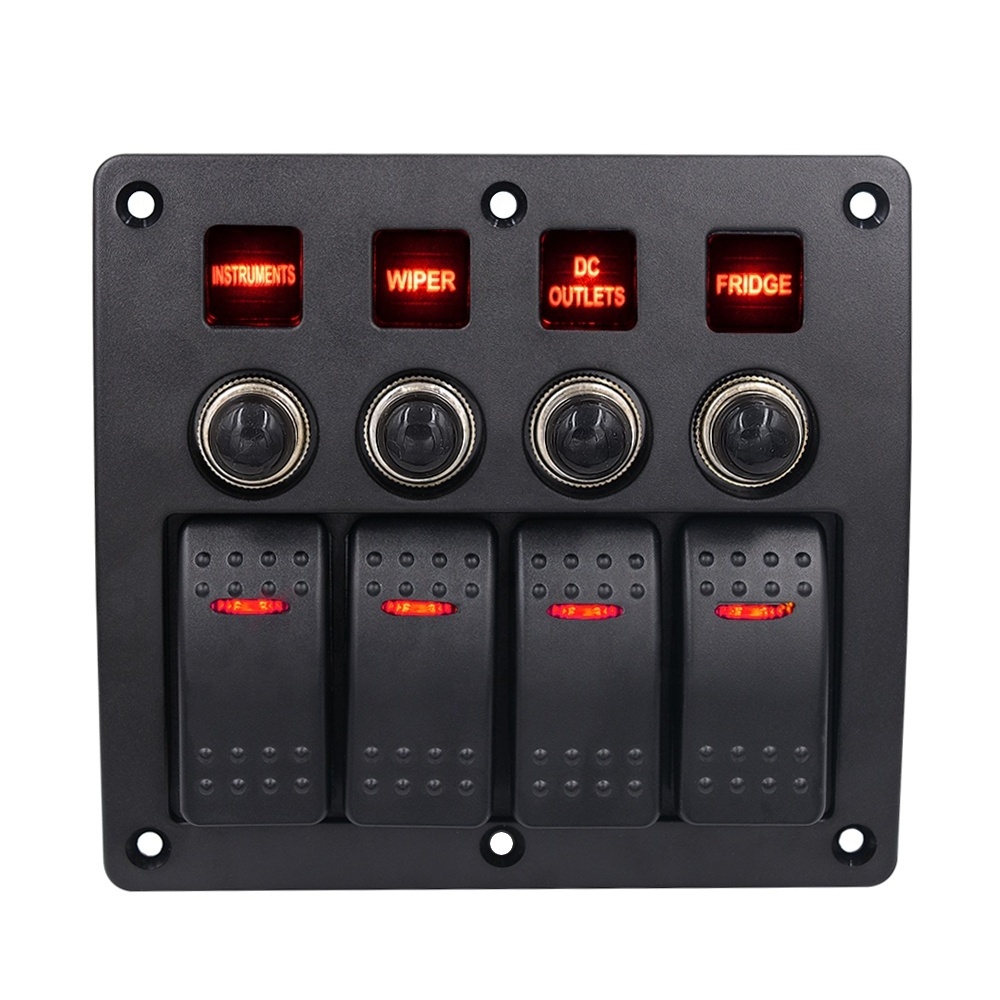

Boat Marine Rocker Switch Panel 4 switches
-
Size:
-
13*12cm*7.5cm(5.12*4.72*2.83inch)
-
Material:
-
ABS, PC, PBT
-
Maximum Power:
-
120-260W
Quick Details
-
OE NO.:
-
CS-530A1
-
Warranty:
-
12 Months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Model Number:
-
CS-530A1
-
Car Make:
-
DC12V-24V Universal
-
Color:
-
Black
-
Input:
-
DC12V-24V
-
Certificate:
-
CE/ROHS/UL
-
Product Name:
-
Boat Marine Rocker Switch Panel 4 switches
-
Size:
-
13*12cm*7.5cm(5.12*4.72*2.83inch)
-
Material:
-
ABS, PC, PBT
-
Maximum Power:
-
120-260W
Products Description
|
Product Name
|
3pin 4-position combined panel switch with lamp and lens
|
|
Product Model
|
CS-530A
|
|
Product Size
|
13*12cm*7.5cm(5.12*4.72*2.83inch）
|
|
Opening Size
|
10.1*8.6cm（3.98*3.39inch）
|
|
Product Material
|
ABS, PC, PBT high and low temperature resistant, flame retardant and environmental friendly materials
|
|
Product Color
|
black
|
|
Light Color
|
Blue, red
|
|
Input Voltage
|
DC12V/24V
|
|
Maximum Power
|
120-260W
|
|
Working Temperature
|
-25℃-80℃
|
|
Waterproof Grade
|
IP65
|
|
Relevant Certificates
|
CE/ROHS/UL
|
|
Net Weight
|
292.2g
|
|
Gross Weight
|
350.5g
|
|
Product Accessories
|
Deliver six self tapping screws, functional stickers and scratch resistant gaskets
|
|
Product Use
|
It can be used as headlamp switch, fog lamp switch, visual width lamp switch, on-board refrigerator switch, on-board vacuum cleaner switch, etc
|
|
Scope Of Use
|
It is applicable to the installation and use of high-grade large-scale transportation tools such as ships, yachts, recreational vehicles and buses
|
Product Advantages:
【1】 The product is a 4-position switch panel, including 4 switches, which can control the switching status of 4 consumers at the
same time
same time
【2】 The input voltage of the product is 12/24v. 12/24v can be installed and used by all ships and trucks, with a very wide range of applications
【3】 The products are ABS, PC and PBT high and low temperature resistant, flame retardant and environmental friendly materials, which can be used in the environment with the lowest temperature of -25 ° and the highest temperature of 80 °
【4】 The product is equipped with an overload protector. When the user controlled by a single switch exceeds the maximum input current of the corresponding overload protector, it will automatically cut off power without causing any damage to the user. After the overload protector is pressed again, the user with the corresponding current can continue to use
