2. display screen
3. 3 different light indicator(warm water, hot water and cold water)
4. 3 water taps
5. drip tray
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel, Garage, Commercial, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GWS
-
Model Number:
-
2208
-
Dimensions (L x W x H (Inches):
-
19 x 11.7 x 20.5 ( inches)
-
Power (W):
-
420W/90W
-
Voltage (V):
-
220V/110V
-
Product name:
-
RO Water Purifier
-
Function:
-
hot water, cold water and normal water
-
Color:
-
Customized
-
Heating Power:
-
420W
-
heating Capacity:
-
5L/h
-
heating temperature:
-
85-95 ℃
-
Compressor Cooling power:
-
90W
-
cold Capacity:
-
2L/h
-
cold water temperature:
-
6-10 ℃
-
Related Voltage:
-
220-240V
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
1 Year
-
Type:
-
Hot & Cold
-
Application:
-
Hotel, Garage, Commercial, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GWS
-
Model Number:
-
2208
-
Dimensions (L x W x H (Inches):
-
19 x 11.7 x 20.5 ( inches)
-
Power (W):
-
420W/90W
-
Voltage (V):
-
220V/110V
-
Product name:
-
RO Water Purifier
-
Function:
-
hot water, cold water and normal water
-
Color:
-
Customized
-
Heating Power:
-
420W
-
heating Capacity:
-
5L/h
-
heating temperature:
-
85-95 ℃
-
Compressor Cooling power:
-
90W
-
cold Capacity:
-
2L/h
-
cold water temperature:
-
6-10 ℃
-
Related Voltage:
-
220-240V
Product Description
NINGBO GOOD WATER SOURCE ENVIRONMENTAL PROTECTION ELECTRICAL APPLIANCE CO.,LTD
is a export oriented manufacturer of desktop water cooler, mini water cooler, wall-mounted instant boiling water heater, water purifier bottle, water pitcher, etc
The company covers the land area of above 10000 square meters. It enjoys favourable geographical location and convenient transportation.
The company is with different products equipment and different products lines. It has been ISO9000 certified and also has
completed R&D, quality control, sales and after-sales service system, etc. The filters inside the products in compliance with NSF standard 42. We also have our own filter lab to test the filters function. The filters inside our products are with high temperature disinfection, ultrasonic welding, UV disinfection and all the test parameters are in compliance with drinking water criterion.
Our goals are Quality leads to market and improvement leads to progress,Attitude is everything, detail is everything, Take science and technology as motive force, live with quality, Customer is our god, quality is god's requirement
We are in line with "quality innovation to win the market, the good faith management cast the future." philosophy, rigorous and meticulous work style, high cost-effective products, try our best to build up domestic packaging materials of the first-class brand. We are willing to make the friend and sincere cooperation, create brilliant with all over the world!
is a export oriented manufacturer of desktop water cooler, mini water cooler, wall-mounted instant boiling water heater, water purifier bottle, water pitcher, etc
The company covers the land area of above 10000 square meters. It enjoys favourable geographical location and convenient transportation.
The company is with different products equipment and different products lines. It has been ISO9000 certified and also has
completed R&D, quality control, sales and after-sales service system, etc. The filters inside the products in compliance with NSF standard 42. We also have our own filter lab to test the filters function. The filters inside our products are with high temperature disinfection, ultrasonic welding, UV disinfection and all the test parameters are in compliance with drinking water criterion.
Our goals are Quality leads to market and improvement leads to progress,Attitude is everything, detail is everything, Take science and technology as motive force, live with quality, Customer is our god, quality is god's requirement
We are in line with "quality innovation to win the market, the good faith management cast the future." philosophy, rigorous and meticulous work style, high cost-effective products, try our best to build up domestic packaging materials of the first-class brand. We are willing to make the friend and sincere cooperation, create brilliant with all over the world!
We do hope that we will have a good business cooperataion, thanks!

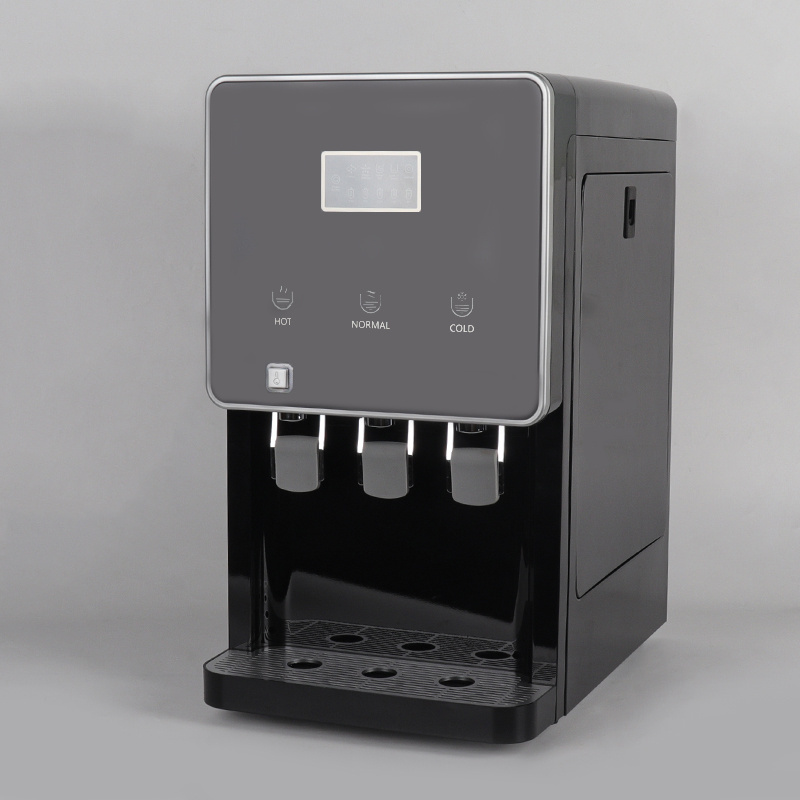

Products quick details shown
1. flat top cover
Display screen function and application see below photo shown
Products function and details as following:
Table Top Water dispenser with RO system With Child lock -Product model No:GWS-L05A -Products dimension: L 480 x W 295 x H 520(mm)
＿Function: Hot&Cold&Warm,
WITH display screen
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 505*325*550mm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
＿Filtration system: PP+CTO+RO+T33
＿RO membrane & Booster pump: 75GPD -Pipe in system
The other products function details as following:
Table Top Water dispenser with UF system With Child lock
Product model No: GWS-L04A -Products dimension: L 480 x W 295 x H 520(mm)
＿Function: Hot&Cold&Warm,
＿Function: Hot&Cold&Warm,
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿RelatedVoltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 47*38.5*55cm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with b
rand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with
food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
＿Filtration system: PP+CTO+UF+T33
-Pipe in system
POU table top water dispenser With Child lock
POU table top water dispenser With Child lock
-Product model: GWS-L02A
-Products dimension: L 480 x W 295 x H 520(mm)
＿Function:
Hot&Cold&Warm,
Hot&Cold&Warm,
＿Heating Power/Capacity: 420W/5L/h,85-95 ℃
＿Compressor Cooling power/Capacity: 90W/2L/h,6-10 ℃
＿Related Voltage/Frequence: 220-240V~50/60hz
＿Packing(mm)L*W*H: 505*325*550mm
＿Logo printing: OEM
＿Product Color: Goldern and Black
＿Body material: top front panel is glass material, top silver plating frame, painting goldern drip tray, the other front panel with
brand new ABS painting black
＿Side plates: Galvanized iron sheet
＿Compressor brand: ARNOLDAN
＿Water tank: SS304 Welding tank with food grade silicone tube
＿Water tank volume: Hot/Cold 1.5/3.2L
-Pipe in system
Respected user:
Hello!
Thank you for choosing the series of straight drink machines. We are a high-tech enterprise specializing in R&D and
production of drinking water treatment equipment. This series of straight drink machine can completely eliminate your
drinking water troubles, ensure that you can enjoy fresh, clean and hygienic high-quality drinking water at any time, and
provide healthy drinking water for your home life. Before you use this unit, please read this manual carefully and accept our suggestions. It will enable you to use the machine
more standard and reasonably, so that the machine can perform better and better, so that you can always get a steady
stream of quality drinking water. If you encounter difficulties in using or have any comments or suggestions about our
services and products, please contact our local distributor or after-sales service department.
Thank you again for your choice!
Feature
This machine is a fully automatic straight drink machine. It is equipped with a 5-stage filter. It is equipped with a 2 gallons3 / 8
pressure tank. After installation, the user only needs to connect the water source and plug in the power supply to realize
the automatic water production function. Using RO membrane technology, the treatment process is pure physical filtration
principle, without adding any chemicals, chemical changes and chemical reactions, purified water can be directly
consumed. After the water tap of the normal temperature is turned on, the red light is turned on after the red switch is
turned on, the RO water system starts working, and the UV sterilizer is energized. When the cold water is full, the water
system stops working, the green switch is turned on, the blue light is on, and the light starts. Refrigeration, when the water
temperature is lower than 10 ° C, the blue light is extinguished to indicate the heat preservation state, and the cold water
can be poured. ☆ Polypropylene melt blown filter (PP): It can effectively remove visible objects larger than 5 microns in water. ☆UDF/GAC filter: It can absorb the chlorine, organic chemicals, odor;
☆ Granular activated carbon filter (CTO): It has high adsorption capacity and can remove the color and odor in water. ☆RO membrane filter (RO): Reverse osmosis membrane filter (RO): the application of reverse osmosis principle, intercepting harmful substances in the water, the effluent is pure water; at the same time, the harmful substances are
discharged into the water purifier through the concentrated water outlet. ☆ Rear activated carbon filter (T33): More thorough adsorption of the color and odor in the water purifier, adjust the taste
of pure water, to ensure that the effluent water is sweet and delicious. This series of drinking fountains is elegant and solemn, leading the trend of the times, safe and energy-saving, large
amount of hot water, wading parts using food-grade materials, drinking water is safer, municipal water is used as raw water, after filtration, the water quality is in line with "life drinking" Water quality processor health safety and function evaluation
specifications - reverse osmosis treatment device (2001) requirements, applicable to units, hotels, office buildings, schools, entertainment and other places.
Main structure drawing:
Components：
1, the panel box 2, the panel 3, the top cover 4, the water box 5, the water box cover 6, the lamp shade 7, the water
tap 8, the fixed plate 9, the switch board 10, the water drain plate 11, the drain joint 11, the float ball 11, the filter
cartridge box, the silicon tube tube, the circuit board, the hot tank, the cold tank, the foam, the foam, the
temperature control, the silicon carbide tube, the pressure type temperature control, the heating switch, the cooling
switch. Power line 27, condenser 28, water inlet connector 29, waste water connector 30, filter 31, compressor 32, drain pipe 33, air pipe 34, left plate 35, right plate 36, bottom plate 37, middle plate 38, cover 39, sealing ring 40, transformer 41, filter element clip 42, pp43, cto44, RO membrane 45, t3346, door 47, water pump 48, waste water valve
49, water inlet valve
Installation, Commissioning and Use
Installation, Commissioning and Use
The installation method of this machine should be selected according to the actual situation in your kitchen. The host can
be placed around the wall about 15cm, as shown in the figure below (pictured); the installed room should have floor drain. ★Installation
1. First check the inlet water pressure. If the inlet pressure is greater than 0.4Mpa, a pressure reducing valve must be
installed at the pipeline position. 2. Prepare the necessary installation tools and installed accessories, determine the installation location, install the water
inlet tee, and the main unit. 3. Install the PE pipe in the following parts according to the process flow: (Figure 3) ◆Between the inlet ball valve and the PPF filter
★Commissioning and Use
After the correct installation, the filter elements of each level should be cleaned as follows:
1. Pull out the T33 filter outlet from the main unit, connect the extension pipe to discharge, open the inlet ball valve, and
rinse the filter elements in turn; repeatedly rinse until the water is clear and no color, then pull out the original pipe. 2. Pipeline inspection: After the machine has been producing water for 30 minutes, check the parts and pipelines for
water leakage and water seepage. 3. Finish the pipeline: organize and fix the various installation pipelines, and then clean the installation site. 4. This machine is controlled by the opening and closing of the mechanical float valve. Normal use is as convenient and
safe as using tap water. 5. Open the water ball valve, the straight drink machine starts to produce water, plug the plug into the 220V ~ / 50Hz
power supply, at this time the power light is on, wait for the hot water tap to release the water to open the heating switch
and the cooling switch, after turning on the heating switch, the red light is on, Indicates heating, red light extinguishes to
indicate heat preservation. At this time, the water temperature is above 90 °C, you can use hot water to turn on, turn on the
cooling switch, blue light or green light is on, start cooling water, water is less than 10, blue light is off, it means heat
preservation, you can pour Use with cold water.Main Technical Parameters
Rated Voltage /frequency：220 V-240V～50-60 Hz
Rated Power：510 W
Electric shock resistance：Ⅰ
Enter Water Pressure：0.1-0.4 Maps
Rated Total Net Water Capacity：2000 L
Water flow：11.7 L/h
Heating Capacity：85℃-95℃，5L/h
Heating Power：420W
Cooling Capacity：≤10℃，2L/h
Cooling Power：90W
Freezing Medium ：R134a/32g
Power Consumption：1.3kW•h/24h
Climate Type：T
Water/Temperature: Municipal tap water/5—38℃
1, main unit 2, bracket 3, self-tapping screws 4, expansion screws
|
components
|
work life
|
The water intake of the machine is treated according to the required municipal tap water. However, the water quality of tap water varies greatly from place to place. The water quality varies from season to season. In addition, the daily water consumption of different families varies widely. Therefore, it should be based on the actual use and experience of the family to determine the
specific replacement cycle. |
|
|
||
|
PPF
|
3 months
|
|
|
|
||
|
UDF
|
6 months
|
|
|
|
||
|
CTO
|
6 months
|
|
|
|
||
|
RO
|
24-36 months
|
|
|
|
||
|
T33
|
12 months
|
|
|
|
||
When the filter cartridge needs to be replaced, it is recommended that you contact your local dealer for replacement or
repair. Do not operate by yourself! ! !
In order to avoid water leakage accident caused by improper operation, causing unnecessary losses
Precautions
▲The inlet pressure must be tested before installation. If the water pressure is higher than 0.4Mpa, the pressure relief valve
must be installed at the inlet end. ▲The inlet pipe must be installed on the cold water pipe, and the inlet water temperature should not exceed 38 °C. ▲Do not fold or fold the water inlet and outlet pipes, so as not to affect the water flux, resulting in the machine not
working properly. ▲Do not disassemble the parts on the machine to prevent leakage or damage to the machine. ▲ Close the inlet ball valve before going to bed at night or when leaving for a long time during the day. ▲This machine is forbidden when the inlet water temperature is below 5 degrees Celsius. ▲Close the water valve when you are not using it for a long time. ▲When no one is in the house, please turn off the water source and power supply. This product is for indoor use only. ▲The power cord of this product is connected to the Y-type connection. The power cord can only be replaced by a
professional. Do not replace it yourself.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Southeast Asia(50.00%),North America(30.00%),Southern Europe(20.00%).
There are total about 51-100 people in our office.etc
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Water dispenser,Table water dispenser,nwater pitcher, water purifier bottle, etc
4. why should you buy from us not from other suppliers?
We are with almost 10 years products experiences, professional development products teams, strictly QC control, experiences
products workers assembly operation, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
1. Q: What is the production time?
A: 25-30 days after deposit received.
2. Q: What is MOQ?
A: 120pcs for compressor cooling system, 280pcs for electronic cooling system.
3. Q: What is the guarantee term for product?
A: Compressor 3 years, Plastic parts 1 year and offer 1% of total order quantity spare parts for FREE CHARGE!
4. Q: What is the payment term?
A: 30-40% deposit and balance should be paid before container load.
5. Q: Can I put my own Logo on machine?
A: Yes, we are specializing in OEM order. Logo, carton design, color are all can be customizable.
6. Q; Which kind of voltage and frequeency is available?
A: 220V-240V 50/60Hz 110V-127V 50/60Hz
We are based in Zhejiang, China, start from 2015,sell to Southeast Asia(50.00%),North America(30.00%),Southern Europe(20.00%).
There are total about 51-100 people in our office.etc
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Water dispenser,Table water dispenser,nwater pitcher, water purifier bottle, etc
4. why should you buy from us not from other suppliers?
We are with almost 10 years products experiences, professional development products teams, strictly QC control, experiences
products workers assembly operation, etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
1. Q: What is the production time?
A: 25-30 days after deposit received.
2. Q: What is MOQ?
A: 120pcs for compressor cooling system, 280pcs for electronic cooling system.
3. Q: What is the guarantee term for product?
A: Compressor 3 years, Plastic parts 1 year and offer 1% of total order quantity spare parts for FREE CHARGE!
4. Q: What is the payment term?
A: 30-40% deposit and balance should be paid before container load.
5. Q: Can I put my own Logo on machine?
A: Yes, we are specializing in OEM order. Logo, carton design, color are all can be customizable.
6. Q; Which kind of voltage and frequeency is available?
A: 220V-240V 50/60Hz 110V-127V 50/60Hz
Contact details as following:
NINGBO GOOD WATER SOURCE ENVIRONMENTAL PROTECTION
ELECTRICAL APPLIANCE CO., LTD.
Add: 2/F,Building 2,No 147,DuShan,SanQiShi Village,SanQiShi Town,
YuYao City, NingBo,China
TEL: (86) 13884494576
Wechat: Jackliu8886
Whatsapple: (86) 13884494576
Email: jackliu_qingqing@vip.126.com
jackliu@miniwatercoolerdispenser.com
Website:
ELECTRICAL APPLIANCE CO., LTD.
Add: 2/F,Building 2,No 147,DuShan,SanQiShi Village,SanQiShi Town,
YuYao City, NingBo,China
TEL: (86) 13884494576
Wechat: Jackliu8886
Whatsapple: (86) 13884494576
Email: jackliu_qingqing@vip.126.com
jackliu@miniwatercoolerdispenser.com
Website:
https://goodwatersource.en.alibaba.com
https://www.miniwatercoolerdispenser.com
Hot Searches
