Quick Details
Quick Details
-
Type:
-
Industrial Computer Accessories
-
Brand Name:
-
Kang Tai KTB
-
Place of Origin:
-
Beijing, China
Features:
●
2U 19" Rackmount Industrial Computer,supports 2x 3.5" or 2x 2.5" front hard drive bay
●
Intel H110 chipset，Supports 6~9th Intel Core i3/i5/i7 processors
●
The whole board supports up to 64GB ，Support SATAIII、mSATA
●
Support VGA+ DVI display interface；2x LAN
●
Support 6x COM、4x USB3.0、5x USB2.0
●
Support 5x PCI、1x PCIe 16X、1x PCIe 4X
●
Support 1U single power/FLEX , 2U single power , and redundant power supply.
|
Product Specifications:
|
|
|
|
Model
|
KTB-2010-706G2-T
|
|
|
Product Name
|

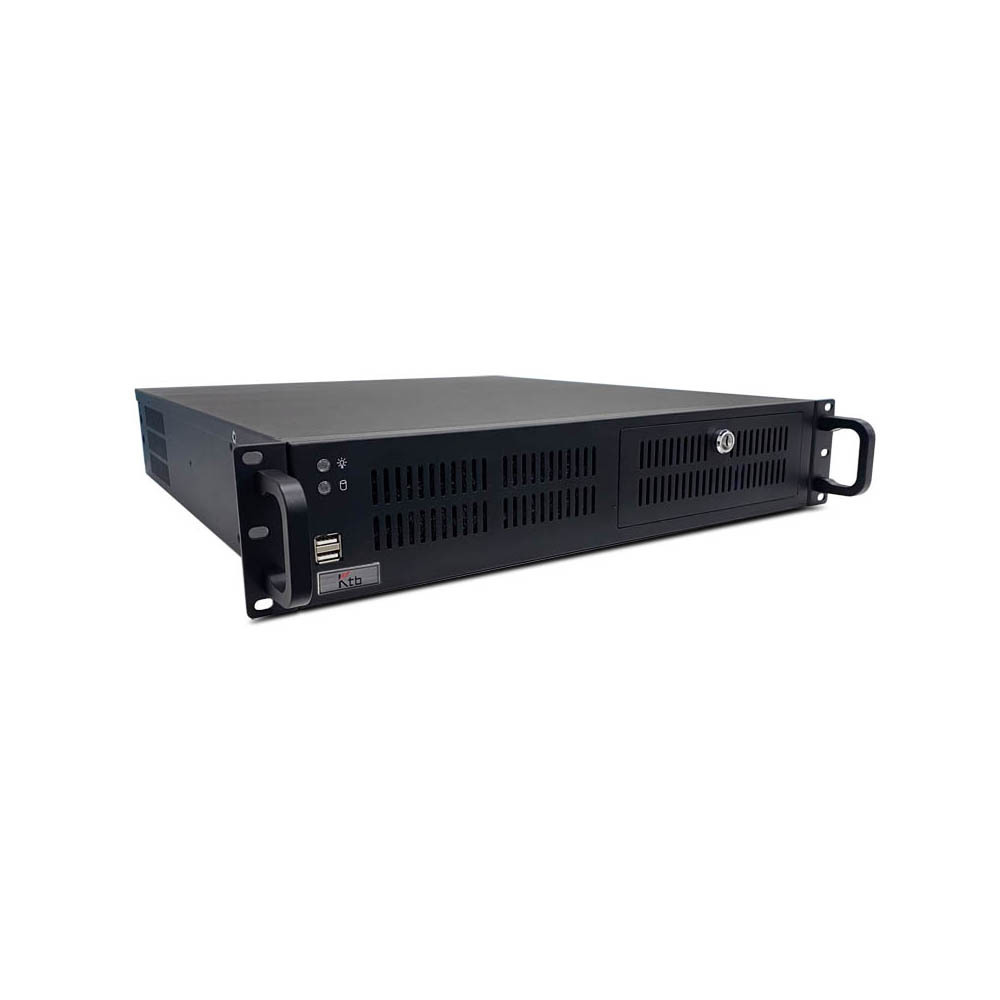

KTB 2U Rackmount Industrial Computer
|
|
|
Color
|
Black
|
|
|
Material
|
Using 1.2mm SGCC environmentally friendly plate steel,and the outer surface is sprayed with powder black.
|
|
|
Processor System
|
Support 6 -9th LGA1151 Intel Core i7/i5/i3 Processor
|
|
|
Chipset
|
Intel H110
|
|
|
Memory
|
2 DDR4 DIMM memory slots， full board supports up to 64GB
|
|
|
Storage
|
4×STATIII
|
|
|
BIOS
|
64Mb SPI FLASH
|
|
|
Display
|
Provide VGA+DVI display interface
VGA: 1 standard DB15 VGA interface, supports resolution up to 1920x 1080 @ 60Hz
DVI: 1 standard DVI interface, supports resolution up to 1920x 1200 @ 60Hz
|
|
|
Network
|
Onboard 2 Intel 10/100/1000Mb adaptive network cards, using Intel 219V/211 network card chip
|
|
|
Serial port
|
Provide 6×com，Among them,COM1 supports RS232/485/422， COM2 supports RS232/485， COM3-6 support RS232
|
|
|
USB
|
4×USB3.0 ，5×USB2.0 ，including a built-in USB2.0 vertical (for encryption)
|
|
|
DVD
|
DVD/DVDRW（optional）
|
|
|
AUDIO
|
Realtek ALC662 ; Supports Line-out and Mic-in
|
|
|
OTHERS I/O
|
PS/2 ，1x LPT
|
|
|
GPIO
|
Provide a 2x 5-pin 2.54mm GPIO pin interface, Supporting 4 inputs and 4 outputs
|
|
|
Watchdog
|
Watchdog function, supports 1 to 255 seconds of system restart
|
|
|
Expansion Slot
|
5×PCI slots，1×PCIe 16X slot，1×PCIe 4X slot
|
|
|
Power Requirement
|
1U single power/FLEX supply, 2U single power supply, and redundant power supply.
|
|
|
Operating environment
|
Operating Temperature:0 ~ 60 °C
Operating humidity: 5%~95%,
No condensation Non-Operating Temperature:-20 ~85℃
|
|
|
OS
|
Win7/8/10 ，Linux
|
|
|
Dimensions
|
480mm x 430mm x 90 mm (W x D x H)
|
|
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 18 years of OEM/ODM experience. We are confident to provide you with better quality, better price satisfactory products.
Q2: Do you accept OEM/ODM orders?
A2: Of course, we have our own R&D team to support the customization of motherboard design and machine design, testing and production.
Q3: What terms of payment do you accept?
A3: We suggest you try Alibaba Trade Guarantee first. It will be more advantageous for you.
Q4: Do you provide sample service?
A4: Yes, we can provide samples on your request before mass production
Q5: How long is your product warranty?
A5: Under normal circumstances, we provide 2 years warranty for all products. If you want to extend the warranty period, we can negotiate according to the actual situation of your order.
Q6: What kind of packaging do you provide for the motherboard?
A6: We usually use bulk packing as the standard, but if you need retail packing, please let us know before placing your order and we will provide it for you.
