Quick Details
-
Blade Length (mm):
-
3300 mm
-
Backgauge Travel (mm):
-
20 - 1000 mm
-
Throat Depth (mm):
-
150 mm
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
7000 KG
-
Place of Origin:
-
China
-
Hydraulic system:
-
Rexroth
-
Electronic system:
-
Schnieder
-
Main Motor:
-
Siemens
-
Seal ring:
-
Valqua
-
Control system:
-
Estun/Delem
Quick Details
-
Max. Cutting Width (mm):
-
9000
-
Max. Cutting Thickness (mm):
-
90 mm
-
Shearing Angle:
-
0-3
-
Blade Length (mm):
-
3300 mm
-
Backgauge Travel (mm):
-
20 - 1000 mm
-
Throat Depth (mm):
-
150 mm
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
7000 KG
-
Place of Origin:
-
China
-
Hydraulic system:
-
Rexroth
-
Electronic system:
-
Schnieder
-
Main Motor:
-
Siemens
-
Seal ring:
-
Valqua
-
Control system:
-
Estun/Delem

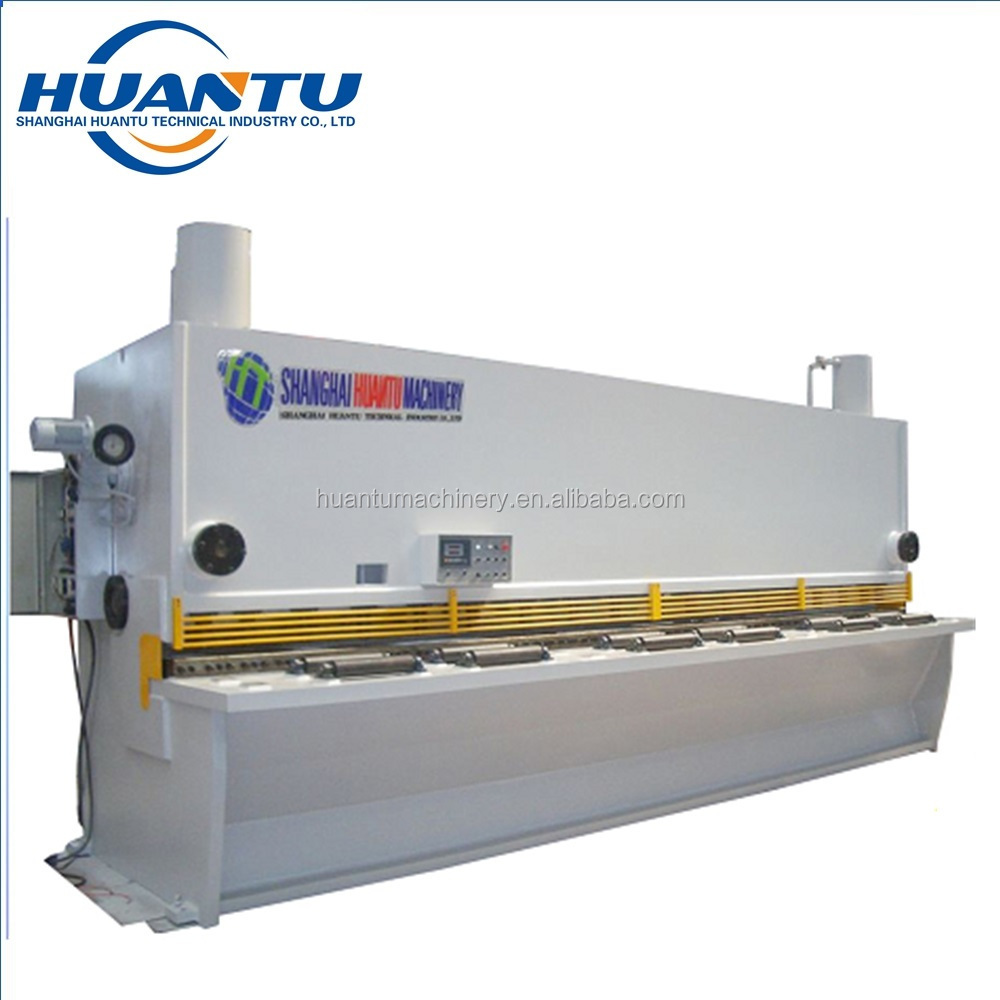

Mechanical sheet cutting, mesh cutting machine, mesh shears, C11Y metal shearing
1. fabricated steel structure, with compact, construction and good rigidity stability
2. integrated hydraulic transmission system, with good reliability
3. Back gauge using intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers
4. moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the sheared edge of the material. The hold-down assembly adopts the butterfly springs. There are antiskid heel block on the hold-down device of hold-down plate. The pressure is bigger, but it doesn’t damage the sheet-metal surface Our shearing machine is driven by a self-contained, totally enclosed gearbox mounted directly on the main shaft. Its construction is compact and the gear is well lubricated with low noise and long life
6. Our shearing machine hasn’t the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy
7. front and back gauges are provided with the scale plate displaying the scale. The back gauge may be easily adjusted in synchronism
Mechanical sheet cutting, mesh cutting machine, mesh shears, C11Y metal shearing
|
Model CNC |
Shearing Thickness |
Shearing Width |
Strokes |
Back gauge Range |
Shearing Angle |
Main Motor Power |
|
(mm) |
(mm) |
(time/min) |
(mm) |
( . ) |
(kw) |
|
|
4*3200 |
4 |
3200 |
18 |
20-500 |
1 30’ |
5.5 |
|
6*3200 |
6 |
3200 |
14 |
20-500 |
1 30’ |
7.5 |
|
8*3200 |
8 |
3200 |
12 |
20-500 |
1 30’ |
11 |
|
10*4000 |
10 |
4000 |
12 |
20-600 |
1 30’ |
15 |
|
12*6000 |
12 |
6000 |
6 |
20-600 |
1 30’ |
22 |
|
12*8000 |
12 |
8000 |
5 |
20-600 |
1 30’ |
22 |
|
16*3200 |
16 |
3200 |
12 |
20-600 |
2 |
22 |
|
16*4000 |
16 |
4000 |
8 |
20-600 |
2 |
22 |
|
20*4000 |
20 |
4000 |
5 |
20-600 |
2 30’ |
30 |
|
25*4000 |
25 |
4000 |
6 |
20-600 |
2 30’ |
37 |
|
32*3200 |
32 |
3200 |
5 |
20-600 |
3 |
37 |
|
40*3200 |
40 |
3200 |
5 |
20-600 |
3 |
45 |
|
50*3000 |
50 |
3000 |
5 |
20-600 |
3 |
90*3 |
|
50*6000 |
50 |
6000 |
5 |
20-600 |
3 |
90*5 |
|
60*3500 |
60 |
3500 |
5 |
20-600 |
3 30’ |
90*4 |
