The disc mower consists of a set of horizontally-mounted cutting discs that rotate perpendicular to the ground. The cutting discs are equipped with knives that cut through the grass and other vegetation, which is then collected on the mower’s bed. Disc mowers are available in a range of sizes and configurations to accommodate different needs and requirements.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Use:
-
cutting grass
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Shuoxin
-
Product name:
-
tractor mower
-
Function:
-
Grass cutting
-
Matching power:
-
40-140HP
-
Working width:
-
1.7/2.1/2.4/2.8M
-
Power Type:
-
PTO Shaft Hitch
-
Hitch type:
-
3-point Linkage Mounted Tractors
-
PTO Speed:
-
540 R/min
-
Blades number:
-
2/3 per disc
-
Blades Material:
-
Manganese Steel
Quick Details
-
Weight (KG):
-
556
-
Marketing Type:
-
New Product 2023
-
Type:
-
Disc Mower
-
Use:
-
cutting grass
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Shuoxin
-
Product name:
-
tractor mower
-
Function:
-
Grass cutting
-
Matching power:
-
40-140HP
-
Working width:
-
1.7/2.1/2.4/2.8M
-
Power Type:
-
PTO Shaft Hitch
-
Hitch type:
-
3-point Linkage Mounted Tractors
-
PTO Speed:
-
540 R/min
-
Blades number:
-
2/3 per disc
-
Blades Material:
-
Manganese Steel
Products Description

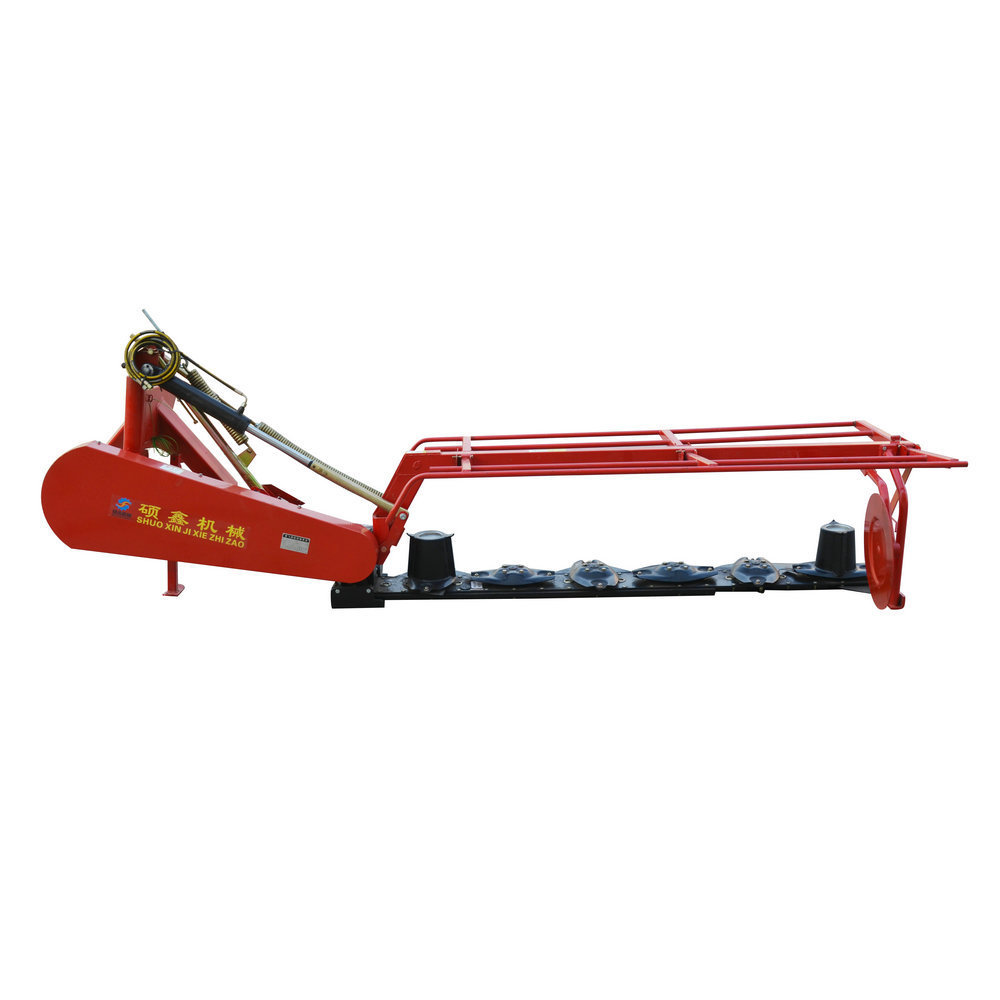

Disc Mower
is a popular type of mower that uses a set of rotating discs to cut through grass and other vegetation. It has gained popularity in recent years due to its ease of use, efficiency, and versatility.
Disc Mower range
consists of 4 discs, 5 discs, 6 discs and 7 discs. Cutting width covers 1.7/2.1/2.4/2.8 meters.
Width 1.7 Meters With 4 Discs
Width 2.1 Meters With 5 Discs
Width 2.4 Meters With 6 Discs
Width 2.8 Meters With 7 Discs
Features and Components of Disc Mower
The key features of a disc mower include its cutting discs, knives, bed, and hitch. The cutting discs are responsible for cutting the grass and other vegetation, while the knives ensure a clean cut. The bed is located underneath the cutting discs and collects the cut vegetation. The hitch connects the mower to the tractor or other machinery.
Hydraulic lift is standard configuration
Iron guide and plastic cover are standard configuration
Disc with 2 kinves/blades
Disc with 3 kinves/blades
Details Images
3 point linkage mounted & PTO shaft
3 point linkage mounted for hanging and PTO shaft as power support
Heavy 4 belts drive systems & Steering shaft drive
used to power Disc Mowers avoids expensive maintence common to most mower types, and enables long periods of low cost operation.
Iron Belt protection cover
Iron with painting cover to protect the 4 belts
Manganese steel blade
High Strength stainless steel
rust resistance
knives
Product Paramenters
|
Model
|
9G-1.7
|
9G-2.1
|
9G-2.4
|
9G-2.8
|
|||
|
Number of Disc
|
4
|
5
|
6
|
7
|
|||
|
Knives/disc
|
2/3
|
2
|
2/3
|
2
|
|||
|
Working Width(m)
|
1.7
|
2.1
|
2.4
|
2.8
|
|||
|
Dimension(mm)
|
3200*1250*1350
|
3700*1250*1350
|
4000*1250*1350
|
4400*1250*1350
|
|||
|
Weight(kg)
|
475
|
480
|
510
|
566
|
|||
|
Hydraulic
|
Standard
|
|
Optional
|
|
|||
|
Iron Cover
|
Standard
|
|
Optional
|
|
|||
|
Matched Power(HP)
|
40-90
|
50-120
|
70-130
|
90-140
|
|||
|
working rate ha
|
1.3
|
1.6
|
2
|
2.3
|
|||
Our Advantages
Advantages of Disc Mower
One of the main advantages of the disc mower is its ease of use. It is lighter and more maneuverable than the drum mower, making it easier to transport and navigate on rough terrain.
Disc mowers are also less prone to clogging, which helps to ensure a smoother and more efficient mowing process.
Additionally, the cutting height is easily adjustable on most disc mowers, which increases their versatility.
|
Recommendations for Choosing the Right Mower
|
Recommendations for Choosing the Right Mower
|
|
|
Field Size
|
For larger fields, a drum mower may be more efficient due to its wider cutting width.
|
|
|
Terrain
|
For rough terrain, the disc mower may be easier to maneuver and transport.
|
|
|
Vegetation
|
For heavier vegetation, the disc mower may be less prone to clogging and provide a cleaner cut.
|
|
|
Budget
|
For those on a budget, the drum mower may be a more cost-effective option.
|
|
|
Maintenance
|
For those with the time and resources for regular maintenance, the disc mower may provide greater longevity and durability.
|
|
|
Comparison of Drum Mower and Disc Mower
|
Recommendations for Choosing the Right Mower
|
|
|
Cutting Mechanism
|
The drum mower uses horizontally mounted drums while the disc mower uses rotating discs perpendicular to the ground.
|
|
|
Weight
|
The drum mower is typically heavier than the disc mower, making it more difficult to maneuver and transport.
|
|
|
Clogging
|
The disc mower is less prone to clogging than the drum mower.
|
|
|
Cost
|
The disc mower is typically more expensive than the drum mower.
|
|
|
Maintenance
|
The disc mower requires more frequent maintenance and replacement of cutting discs and knives than the drum mower.
|
|
|
Mowers have been performance tested and proven to reduce plugging and wrapping in both light and heavy hay crops.
|
|
Each cutter bar has been designed with added stiffness to provide exceptional strength in all working conditions.
|
|
Oval discs allow for superior flow of material over the cutter bar and a better distribution of your hay crop.
|
|
Robust, double-sided steel knives are perfectly timed to overlap at just the right distance to provide a smooth, clean, clog-free cut.
|
|
The gear-driven cutter bar houses oiled and sealed bearings to reduce contamination and provide ease of maintenance.
|
|
A hydraulic mower bar cylinder effortlessly lifts the unit for end of field turns and transport.
|
|
Ground pressure of the cutter bar can be easily adjusted for a variety of ground conditions.
|
|
Crop dividers come standard to provide clear distinction between cut and standing hay.
|
|
Mowers feature a mechanical breakaway to protect units from damage when striking an unexpected obstacle.
|
