Quick Details
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GiantLin
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
120-96-87cm
-
Weight (KG):
-
1000 kg
-
Name:
-
GL2-25 lego block machine price
-
Raw material:
-
Caly, mud, adobe, soil, earth, cement
-
Color:
-
As per requirements
-
Model:
-
GL2-25
-
Molding cycle:
-
20-25s
-
Keywords:
-
clay interlocking brick machine price
-
Hydraulic Pressure:
-
16MPA
-
Pallet size:
-
No need
-
Worker:
-
3 workers
-
Production capacity:
-
2 pcs/ mold
Quick Details
-
Type:
-
Interlock Block Making Machine
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
5760 pcs/8hours, 2880 pcs/8hours
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GiantLin
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
120-96-87cm
-
Weight (KG):
-
1000 kg
-
Name:
-
GL2-25 lego block machine price
-
Raw material:
-
Caly, mud, adobe, soil, earth, cement
-
Color:
-
As per requirements
-
Model:
-
GL2-25
-
Molding cycle:
-
20-25s
-
Keywords:
-
clay interlocking brick machine price
-
Hydraulic Pressure:
-
16MPA
-
Pallet size:
-
No need
-
Worker:
-
3 workers
-
Production capacity:
-
2 pcs/ mold

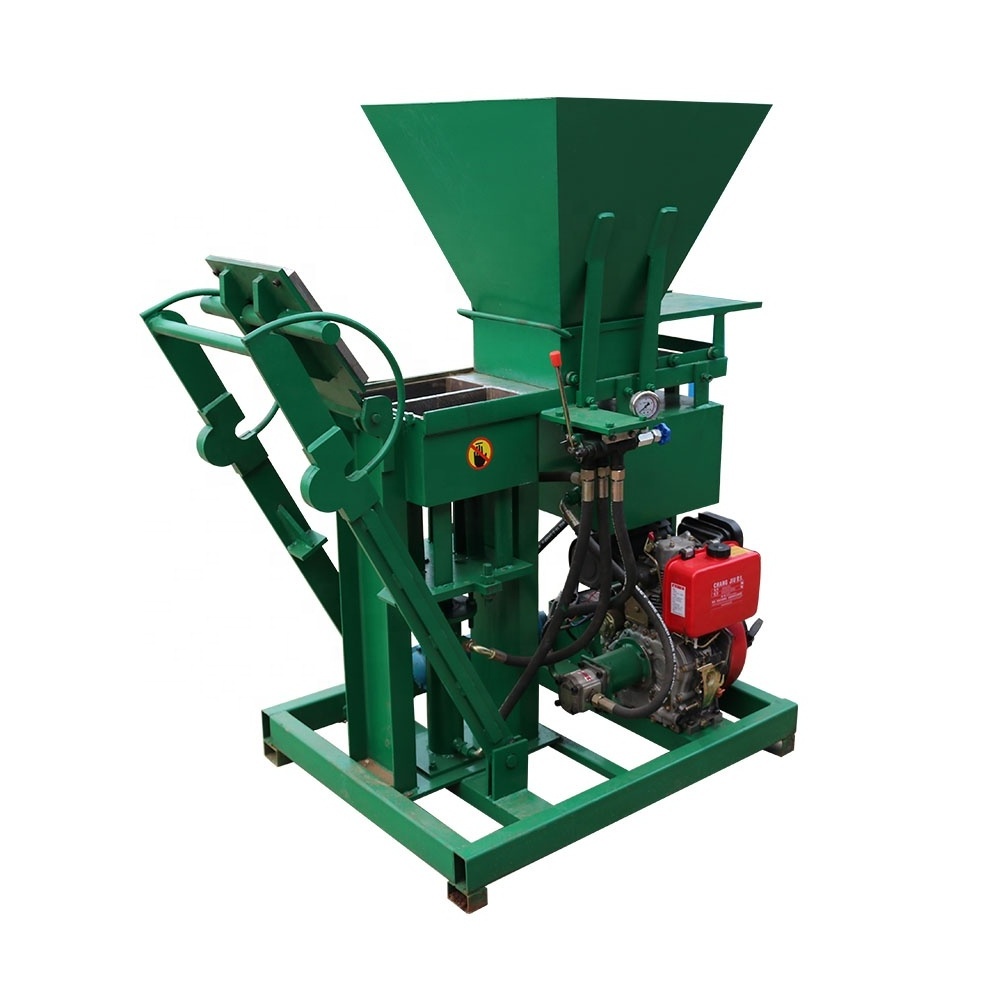

GL2-25 2 pcs per mold small ISSB solid clay brick making machine price in UAE
Advantage:
1. Small portable clay brick machine, need small place, easy to move
2. Mold changebale: Clay interlocking hollow blocks, solid bricks, small pavements
3. Hydraulic press: produce strong bricks
4. Electric or diesel engine optional
5. High production capacity: 2 pcs per mold, 2880 pcs/8 hours
Gl2-25 diesel small hydraulic pressure soil lego block machine price in Russia, Tanzania Introduction
| Item | Name | Function |
| A | Hopper | Store raw material |
| B | Hydraulic station | Storage hydraulic oil |
| C | Electric Motor or diesel engine | 4kw or 5.5hp |
| D1 | Mold | Brick shaping area |
| D2 | Extra mold | Small S shape pavements |
| D3 | Extra mold | Small I shape paving brick |
| Total power: 4kw; need 1-2 workers | ||
Workers Number: 3 Workers in Total
One Worker for Loading soil into Material Hopper
One Worker for Operating Brick Machine
One Worker for Carry fresh brick to curing sites
Factory Area; 600-1000M2
Material Ratio for Bricks: 5%-10% cement and 90-95% Soil
Max. size bricks : 300-150-100mm
Raw Material Consumption in one day
We take 300*150*100 bricks as example and recommend 8% cement
GL2-25 all different types of soil interlocking bricks, and small pavements
More photos of GL2-25 semi automatic hydraulic interlocking hollow block machine price for sale
