Quick Details
-
Product name:
-
Infrared passenger flow counter
-
Application:
-
Chain stores, supermarkets, scenic spots, libraries, etc
-
Size:
-
65mm*50mm*22mm
-
Power supply:
-
Lithium battery and USB
-
Data cache:
-
1 year
-
Installation method:
-
3M double-sided tape or screw fixed
-
Infrared viewing distance:
-
15 meters
-
Color:
-
Black White
-
Display:
-
OLED display
Quick Details
-
Brand Name:
-
FOORIR
-
Place of Origin:
-
Sichuan, China
-
Model Number:
-
HX-HE2
-
Product name:
-
Infrared passenger flow counter
-
Application:
-
Chain stores, supermarkets, scenic spots, libraries, etc
-
Size:
-
65mm*50mm*22mm
-
Power supply:
-
Lithium battery and USB
-
Data cache:
-
1 year
-
Installation method:
-
3M double-sided tape or screw fixed
-
Infrared viewing distance:
-
15 meters
-
Color:
-
Black White
-
Display:
-
OLED display
|

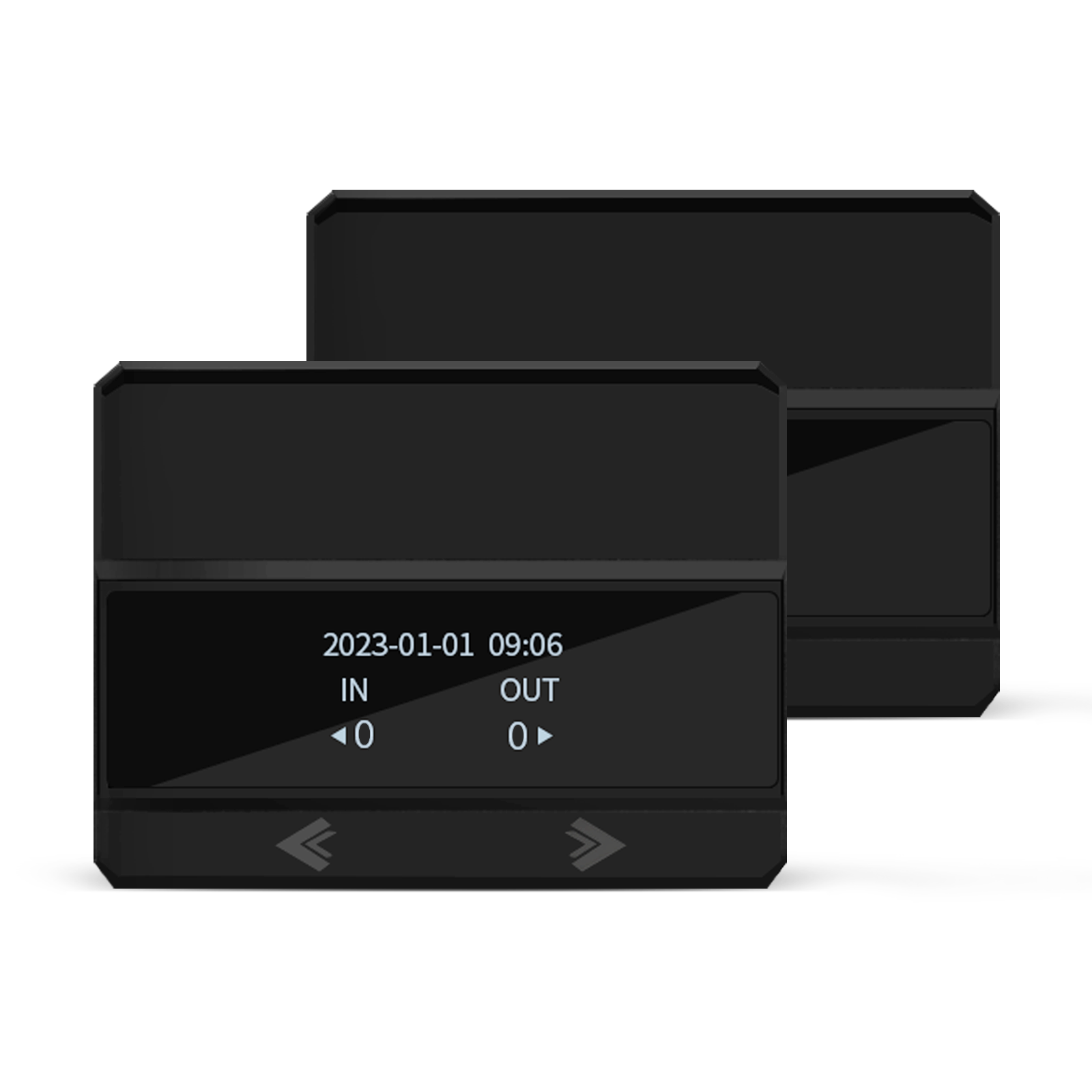

Infrared passenger flow counter
|
|
|
|
Model
|
HX-HE2
|
|
|
Sight distance (coverage)
|
Indoor 1m-20m、outdoor 1m-17m
|
|
|
Accuracy
|
≥80%
|
|
|
Height range
|
1.0m-1.4m
|
|
|
power
|
0.004~0.37W
|
|
|
Power supply mode
|
3.7VLi-ion(2000mAh)/Type-cWired power supply
|
|
|
Communication mode
|
WI-FI(2.4Ghz)
|
|
|
IP Addressing
|
DHCP
|
|
|
Offline cache
|
5years
|
|
|
Data upload method
|
TCP/HTTP POST
|
|
|
work temperature
|
-0°C~40°C
|
|
|
Work humidity
|
10~80 %RH( Non condensing )
|
|
|
Storage temperature
|
-40°C~70°C
|
|
|
Storage humidity
|
5~90 % RH( Non condensing )
|
|
|
Protaction Class
|
IP30
|
|
|
Standard accessories
|
Charger x1、2000mAH Battery X2, bracket X2, adhesive X2, certificate x1, instruction x1, warranty card x1
|
|
|
Product specification
|
size(mm)65x 50 x 25、 Net weight (g):78
|
|
|
Package specification
|
size(mm):185 x150x67、weight(g):370( Including accessories )
|
|
|
Outer box specification
|
size(mm):390x370x325( The whole box can hold 20 sets )、 Net weight (g)：674
|
|
|
Installation
|
Wall mounting
|
|
Passenger flow control，screen display
Know the passenger flow information in the area, warning of excessive number of people, more quickly to do personnel control
，Provide customized large screen display service, if you need to customize, please contact us.
Sales countries
Battery powered, long service time
Infrared passenger flow is small and convenient, equipped with a rechargeable battery, can last two months on a single charge
WIFI LINK
S
Through WIFI link to the device platform, it can query passenger flow data in real time and generate data tables according to 5 minutes/half hour/hour/day/week/month/year
We can provide you with a free website platform to monitor and analyze data. The platform supports both Chinese and English modes. If you need to customize other languages, please contact us for more details
Support for custom
We support product customization service, Lora/NB lot can be customized, manual, packaging, charger, body LOGO can be customized, if you need to customize, please contact us
