Quick Details
-
Model Number:
-
DQ001
-
Max. Current:
-
16A
-
Product name:
-

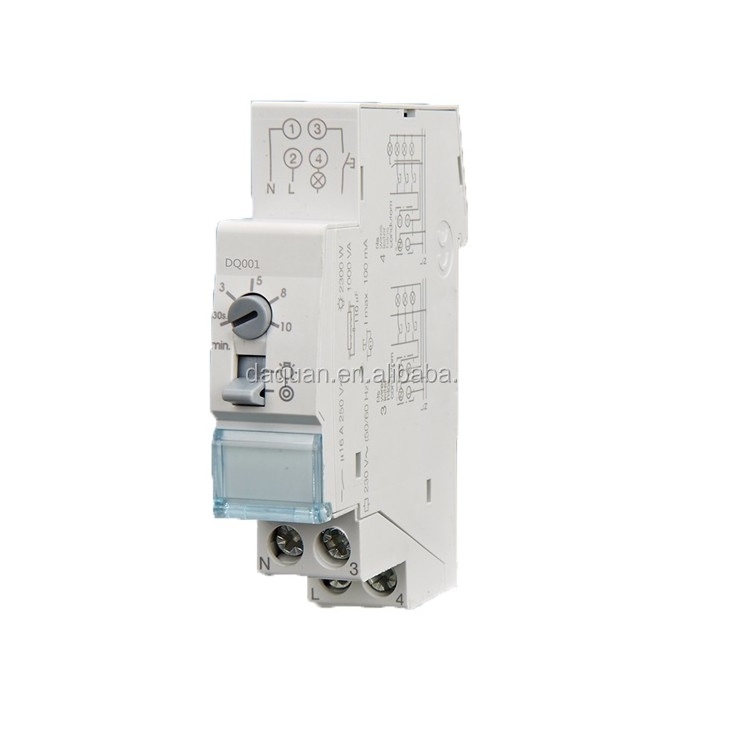

Staircase Delay switch
-
Certifications:
-
CE ROHS
-
Width:
-
17.5mm
-
Time Range:
-
30s to 10mins
-
Certification:
-
no
Quick Details
-
Max. Voltage:
-
240V
-
Place of Origin:
-
China
-
Brand Name:
-
DAQCN
-
Model Number:
-
DQ001
-
Max. Current:
-
16A
-
Product name:
-
Staircase Delay switch
-
Certifications:
-
CE ROHS
-
Width:
-
17.5mm
-
Time Range:
-
30s to 10mins
-
Certification:
-
no
Features
The provide control of lighting circuits with automatic switch-off after a pre-set time.
Compact design with a 2 position switch permanent/time lighting control facility.
Adjustable time delay setting 30 sec to 10 minutes.
1Mod=17.5mm
| Item No. | DQ001 |
| Type of Contacts | 1NO |
| Rated Operational Ac Voltage | 195/230/253V |
| Breaking Capacity | 16A 250V AC1 |
| Max.power With Incandescent Lamps | 2300W |
| Type Of Connection | With Screw |
| Acceptable Current Rating With Ac1 | 16A |
| Connection Cross-Sect.Flexible Cable | 1/6mm² |
| Connection Cross-Sect.Rigid Cable | 1.5/10mm² |
| Fixing Mode | Din-Rail |
| Frequency | 50/60Hz |
| Operating Temperature | -10~55℃ |
| Storage Temperature | -20~60℃ |
| Protection Grade | IP 20 |
