Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Data Center, Computer room, company wiring
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Structure:
-
Fiber+Parallel Steel/FRP+Reinforcement
-
Strength member:
-
Steel Wire/FRP
-
Jacket Material:
-
PVC/LZSH
-
Jacket Color:
-
Black/White
-
Length:
-
1km 2km 3km
-
Package:
-
Carton box
Quick Details
-
Brand Name:
-
THT
-
Model Number:
-
GJX(F)H/GJYX(F)CH
-
Type:
-
Indoor outdoor bow-type drop cable, Bow-type drop cable
-
Place of Origin:
-
Henan, China
-
Application:
-
Data Center, Computer room, company wiring
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Structure:
-
Fiber+Parallel Steel/FRP+Reinforcement
-
Strength member:
-
Steel Wire/FRP
-
Jacket Material:
-
PVC/LZSH
-
Jacket Color:
-
Black/White
-
Length:
-
1km 2km 3km
-
Package:
-
Carton box
Product Description

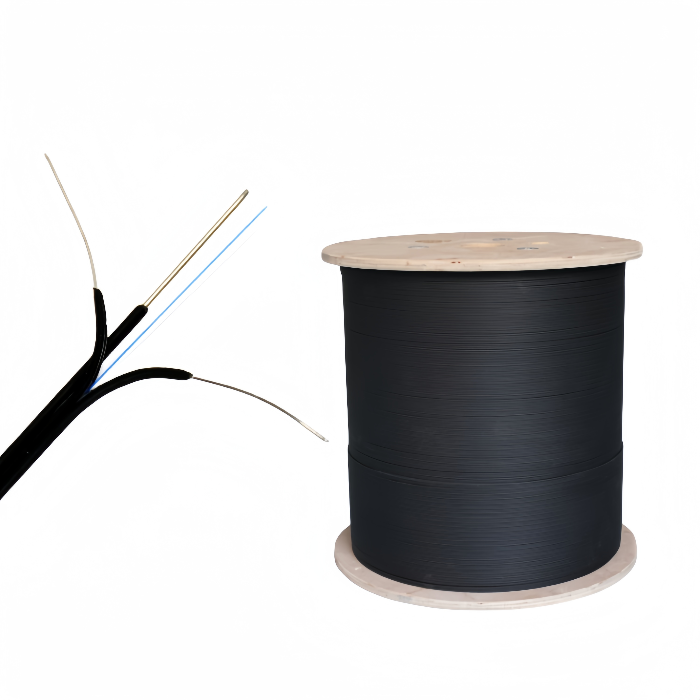

Factory price GJYXCH 2 core drop FTTH fiber optical cable with 1KM length per roll
About our
GJYXCH 2 core drop FTTH fiber optical cable with 1KM length per roll
, it mainly has two kinds: for indoor use, and for outdoor use.
Bow-type drop cable for indoor use:
It is made by placing the optical communication unit in the center, placing two parallel non-metallic reinforcing pieces or metal reinforcing members on both sides, and extruding black or other colored PVC or low-smoke halogen-free sheaths.
Bow-type drop cable for outdoor use:
It is made by placing the optical communication unit in the center, placing two parallel non-metallic reinforcing pieces or metal reinforcing members on both sides, a steel wire reinforcement is attached on the outside, and finally, a black or other colored PVC or low-smoke halogen-free sheath is extruded.
Specification
|
Product name
|
GJYXCH 2 core drop FTTH fiber optical cable with 1KM length per roll
|
|
Model
|
GJX(F)H/GJYX(F)CH
|
|
|
some other models like GJXBH, GJYXBCH
|
|
Fiber type
|
G657A1, SM
|
|
Fiber count
|
1-12
|
|
Parallel wire
|
0.45mm *2
|
|
Messenger wire
|
1.0mm
|
|
Outer sheath material
|
LSZH/PVC
|
|
Outer sheath color
|
Black/White
|
|
Cable Length:
|
1km/drum; 2km/drum; /3km/drum
|
|
Insertion Loss:
|
≤0.30dB
|
|
Return Loss:
|
≥50dB
|
|
Test Wavelength:
|
1310/1550nm
|
Packing & Delivery
Other Recommendation
Company Introduction
Zhengzhou
T
ian
H
e
T
elecommunication Technology Co., Ltd.
, known as
THT
, is a state-level specialized and innovative "little giant" and high-tech enterprise, and has more than 50 years of factory experience.
We are engaged in research and development, manufacturing, sales and service of optical fiber preform, optical fibers, optical cables, communication support facilities, and other relative corollary equipment.
We’ve been the supplier of many optical cable foreign trade companies in China for many years. Our products have been exported to many countries like USA, Mexico, Brazil, Venezuela, UK, Italy, Russia, Korea, Singapore, South Africa, Egypt, etc. We’re ready to work with you hand in hand, to provide advanced technique, high-quality products, thoughtful service in the field of communications network.
FAQ
1. Are you a manufacturer?
Yes, we are indeed a factory, and have more than 50 years of manufacturing experience.
2. What is your product range?
We are specialized in manufacturing different kinds of products: Optical fibers, Indoor Cables, Outdoor Cables, Lan Cables, Patch Cable and other relative corollary equipment.
3. Do you provide OEM service?
Yes, we do.
4. How many countries have you exported to?
We’ve been the supplier of many trading companies in China for many years. And we've exported to many countries like USA, Mexico, Brazil, Venezuela, UK, Italy, Russia, Korea, Singapore, South Africa, Egypt, etc.
5. Do you provide samples?
Yes, we do. Welcome to apply for samples. We can provide most of the product samples free, but you need to undertake the delivery fee. If you're satisfied and place order finally, we can minus the freight you've paid accordingly.
6. What is your payment term?
We accept payment by T/T, L/C and Western Union.
We are specialized in manufacturing different kinds of products: Optical fibers, Indoor Cables, Outdoor Cables, Lan Cables, Patch Cable and other relative corollary equipment.
3. Do you provide OEM service?
Yes, we do.
4. How many countries have you exported to?
We’ve been the supplier of many trading companies in China for many years. And we've exported to many countries like USA, Mexico, Brazil, Venezuela, UK, Italy, Russia, Korea, Singapore, South Africa, Egypt, etc.
5. Do you provide samples?
Yes, we do. Welcome to apply for samples. We can provide most of the product samples free, but you need to undertake the delivery fee. If you're satisfied and place order finally, we can minus the freight you've paid accordingly.
6. What is your payment term?
We accept payment by T/T, L/C and Western Union.
Welcome to contact us for any questions!
