Quick Details
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Column plate
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
BJ493
-
Size:
-
5995*2230*3280mm
-
Cargo Tank Dimension:
-
4170*2200*2200mm
-
Horse power:
-
103
-
Torque:
-
225N.m
-
Wheel base(mm):
-
3360
-
Brake F/R:
-
Air brake Drum/Drum
-
Tyre:
-
7.00R16
-
Battery:
-
12V
-
Clutch Type and Size:
-
Monolithic dry diaphragm spring-260*160mm
-
Spring left:
-
3/5+2
-
Rear Axle Ratio:
-
5.375
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Express transportation
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Column plate
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
BJ493
-
Size:
-
5995*2230*3280mm
-
Cargo Tank Dimension:
-
4170*2200*2200mm
-
Horse power:
-
103
-
Torque:
-
225N.m
-
Wheel base(mm):
-
3360
-
Brake F/R:
-
Air brake Drum/Drum
-
Tyre:
-
7.00R16
-
Battery:
-
12V
-
Clutch Type and Size:
-
Monolithic dry diaphragm spring-260*160mm
-
Spring left:
-
3/5+2
-
Rear Axle Ratio:
-
5.375
Product Description
Specification
|
Model/Type
|
|
|

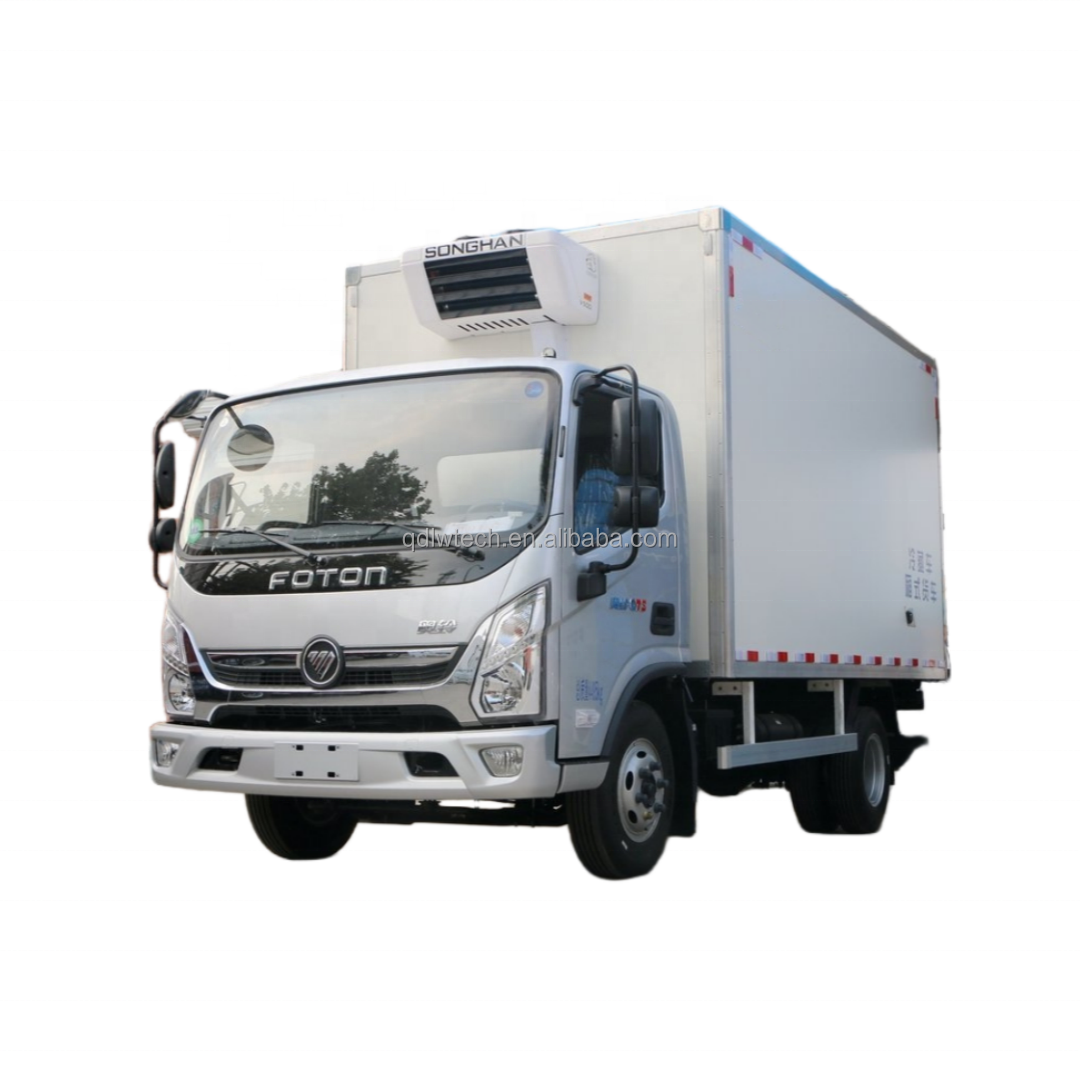

5 Tons Light Frozen Cargo Truck
|
|
||
|
Summarise
|
Brand
|
|
FOTON
|
|
||
|
|
Model
|
|
Aumark E
|
|
||
|
|
Drive Mode
|
|
4X2,LHD
|
|
||
|
|
Wheelbase
|
|
3360mm
|
|
||
|
|
Overall Dimension with box
|
|
5995X2230X3225mm
|
|
||
|
|
Cargo box Dimension
|
|
4170*2200*2200mm
|
|
||
|
|
Max. Speed
|
|
105KM/H
|
|
||
|
|
Kerb weight(kgs)
|
|
2660
|
|
||
|
|
Load capacity(kgs)
|
|
5000
|
|
||
|
|
Max.GVW(kgs)
|
|
8000
|
|
||
|
|
Max.Gradeability
|
|
25-30%
|
|
||
|
|
Wheel Track(mm)
|
|
1590/1485
|
|
||
|
Engine
|
Model
|
|
4JB1
|
|
||
|
|
Cylinder
|
|
4
|
|
||
|
|
Type
|
|
in Line, water cooling, four stroke, direct injection
|
|
||
|
|
Displacement
|
|
2.77L
|
|
||
|
|
Emission Standars
|
|
EURO 3
|
|
||
|
|
Max.Power/kw/HP
|
|
76KW/103HP
|
|
||
|
|
Max. Torque
|
|
225N·m/1200-2200rpm
|
|
||
|
Transmission
|
Model
|
|
5G32
|
|
||
|
|
Transmission operation type
|
|
MT
|
|
||
|
|
Forward Gear
|
|
5
|
|
||
|
|
Reverse Gear
|
|
1
|
|
||
|
Gear Box
|
Type
|
|
Single dry diaphragm spring,Hydraulic booster control
|
|
||
|
|
Size
|
|
φ260×φ160
|
|
||
|
Steering Gear
|
Type
|
|
Circulating pump
|
|
||
|
Brake
|
Type
|
|
Hydraulic-Drum/Drum
|
|
||
|
|
|
|
|
|
||
|
|
Parking brake
|
|
Central Drum
|
|
||
|
|
Auxiliary brake
|
|
Engine exhaust brake
|
|
||
|
Cab
|
Passenger
|
|
3 Person,Single cab with sleeper
|
|
||
|
|
Type
|
|
1880
|
|
||
|
Tyre
|
Size
|
|
7.00R16
|
|
||
|
|
Qty
|
|
6+1
|
|
||
|
Chassis
|
Front Axle
|
Capacity(kgs)
|
3000kgs
|
|
||
|
|
|
Brake type
|
Drum
|
|
||
|
|
Rear Axle
|
Type
|
Casting,Steyr,Wheel side reduction
|
|
||
|
|
|
Capacity(kgs)
|
5000kgs
|
|
||
|
|
|
Ratio
|
5.375
|
|
||
|
|
Suspension
|
Spring leaf
|
3/5+2
|
|
||
|
|
|
Type-Front
|
Non - independent suspension vertical leaf spring
|
|
||
|
|
|
Type-Rear
|
Non - independent suspension vertical leaf spring
|
|
||
|
|
Frame
|
Width
|
810/750mm
|
|
||
|
|
|
Girder cross section
|
110/180/140×60/65/65×4.5mm
|
|
||
|
Others
|
Window/Rear view mirror
|
Manual
|
|
|
||
|
|
AC
|
|
Optional
|
|
||
|
|
Media
|
|
MP3+Radio+USB
|
|
||
|
|
Battery
|
|
12V
|
|
||
|
Refrigerator Unit
|
Brand
|
|
Chinese brands(Thermo King/Carrier is optional)
|
|
||
|
|
Temperaturer
|
|
-5/-18/-28 degrees optional
|
|
||
More Products
FAW VH Refrigerator Truck -18 Degree
FAW VH Refrigerator Truck -28 Degree
Details Images
|
More Models&Types
|
|
|
|
5-7 Ton Loading Light Duty Cargo Truck with Closed Box
|
3-5 Ton Loading Light Duty Cargo Truck with Closed Box
|
|
|
Overall Dimensions/Cargo Box Dimension
|
5995*2000*2320mm/4230*2050*2000mm/
|
|
|
Load capacity
|
7000kgs
|
|
|
Engine Type and Power
|
Diesel-141 Horse Power
|
|
|
Max Speed
|
120KM/H
|
|
