Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0.2~40mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Durmaduct
-
Weight (KG):
-
8000 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fabric Laser Cutter
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
500W / 1000W / 2000W / 3000W/4000W
-
Cutting materials:
-
Stainless Steel Carbon Steel Sheet
-
Laser source:
-
MAX IPG RAYCUS
-
Working area:
-
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
-
Laser head:
-
Raytools, WSX
-
Color:
-
Black-white
-
Model:
-
BS-G series
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
140meter/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0.2~40mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Durmaduct
-
Weight (KG):
-
8000 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fabric Laser Cutter
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
500W / 1000W / 2000W / 3000W/4000W
-
Cutting materials:
-
Stainless Steel Carbon Steel Sheet
-
Laser source:
-
MAX IPG RAYCUS
-
Working area:
-
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
-
Laser head:
-
Raytools, WSX
-
Color:
-
Black-white
-
Model:
-
BS-G series
Product Description

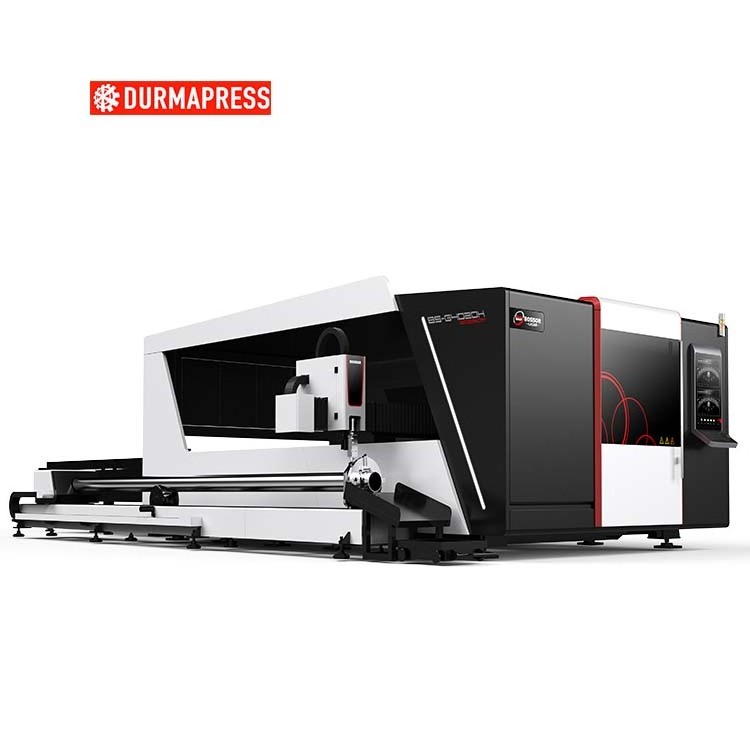

Exchange Worktable Tube&Sheet Fiber Laser Cutting Machine
BS3015E
is a perfect standard plane fiber laser cutting machine, which is popular in the industry. It has the highest
speedamong those with the same level and may cut 400 small circles per minute. With the maximum speed of 140m
and maximumacceleration of 1.2G, it has the highest accuracy among those with the same leve
and may cut the bicycle with the size of 1/5 of coin.
Specification
|
item
|
value
|
|
Machine Name
|
Fiber laser cutting machine
|
|
Cutting Thickness
|
0.2~40mm
|
|
Application
|
Cutting Metal material plate and tube
|
|
Laser power
|
500W / 1000W / 2000W / 3000W/4000W
|
|
Cutting materials
|
Stainless Steel Carbon Steel Sheet
|
|
Laser source
|
MAX IPG RAYCUS
|
|
Working area
|
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
|
|
Laser head
|
Raytools, WSX
|
|
Color
|
Black-white
|
|
Model
|
BS-E series
|
Standard Components
IPG Laser Source
IPG’s mid power CW fiber lasers cover output power range from 100 to 4000 W and feature a wide range of operating wavelengths, single-mode and multi-mode options, low amplitude noise, high stability and extremely long pump diode lifetime. Lasers are typically air-cooled up to 500 W average power. Compact water-cooled units are also available for average powers up to 4 kW. Redesigned electronics offers extended control functionality. The
lasers are available with a wide variety of fiber terminations or collimation optics.
Tube Cutting
220mm diameter , 6 meters long front pneumatic rear pneumatic with Yaskawa Servo Motor
Atlanta Rack
Taiwan YYC
Linear Guides
Topsinn filter system
YASKAWA Servo Motor
Air conditional
Water Chiller
Automatic Lubrication System
Wireless controller
