Quick Details
-
Panel Size:
-
Customized size
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MT-FINP3SP1A41
-
Pixel Pitch:
-
1.875mm,2mm,2.5mm, 3mm, 4mm, P2, P3, P4, P5
-
Product name:
-
Front Service Full Color Pantalla de LED Flexible
-
Pixel Density:
-
284444ddots/m2
-
Module size:
-
256x128mm
-
Module resolution:
-
128*64
-
Certificate:
-
CE ROHS for flexible led panel
-
Warranty:
-
2 Years
-
Refresh rate:
-
1920-3840Hz
-
Gray level:
-
14bit
-
Life span:
-
100,000hours
-
Brightness:
-
>6000 nilts/m2
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
Maxtop
-
Color:
-
Full color
-
Panel Size:
-
Customized size
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MT-FINP3SP1A41
-
Pixel Pitch:
-
1.875mm,2mm,2.5mm, 3mm, 4mm, P2, P3, P4, P5
-
Product name:
-
Front Service Full Color Pantalla de LED Flexible
-
Pixel Density:
-
284444ddots/m2
-
Module size:
-
256x128mm
-
Module resolution:
-
128*64
-
Certificate:
-
CE ROHS for flexible led panel
-
Warranty:
-
2 Years
-
Refresh rate:
-
1920-3840Hz
-
Gray level:
-
14bit
-
Life span:
-
100,000hours
-
Brightness:
-
>6000 nilts/m2

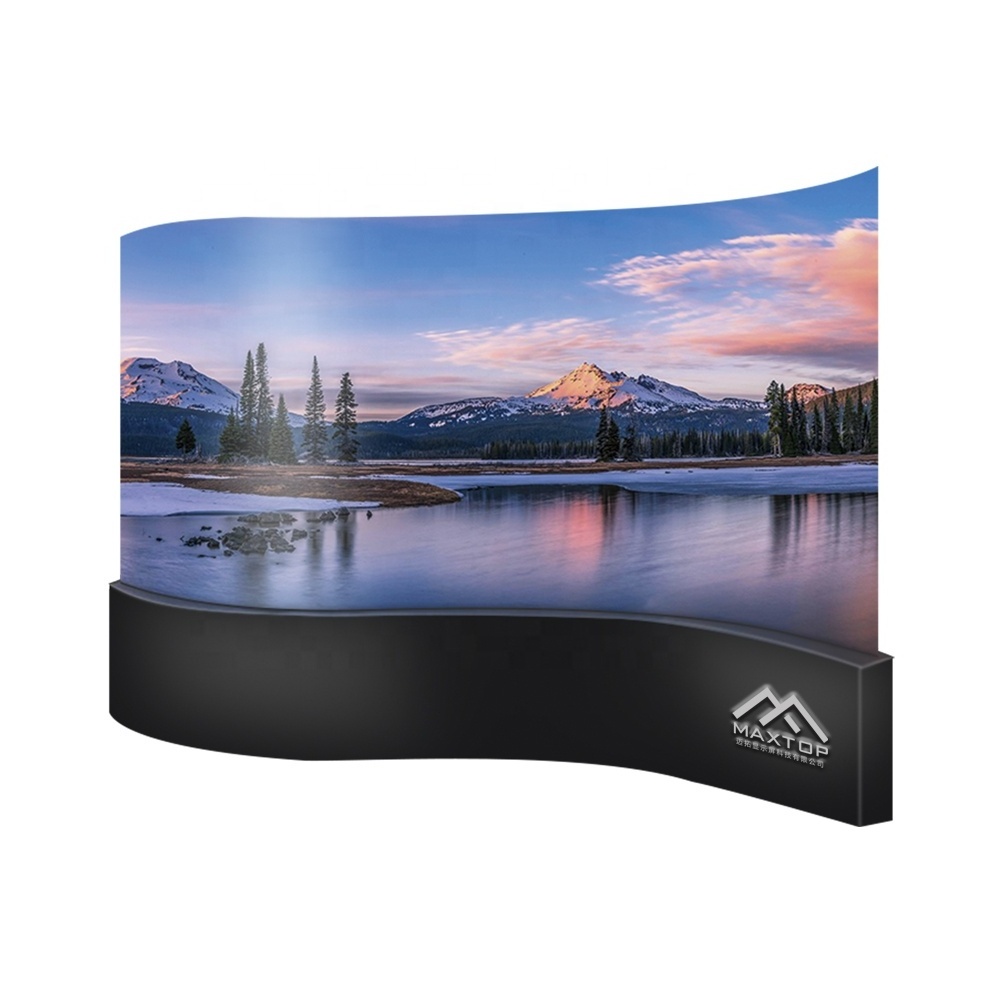

MAX TOP Flexible led panel
Technical Specifications:
| Pixel Pitch | 4mm |
| Pixel Density | 62500dots/m2 |
| Module Resolution | (W) 64 dots X (H) 32 dots |
| Module Size | 256mm (W) X 128mm (H) X 1.6mm (D)(Thickness (Including Magnet)16mm |
| Module Weight | 0.23Kg |
| Bending Arc | Center Bending Curvature≤120° Diagonal Bending≤120° (Recommended Bending Curvature≤90°) |
| Bending Times | <1000 Times |
| Driving mode | 16 Constant Current |
| Scan Mode | 1/16 |
| Working Voltage | DC5V±0.2V |
| Max Module Current | 3.8A |
| Power Consumption (Max.) | 19W |
| Power Interface | VH4 |
| Signal Interface | HUB75D(IDC16) |
| Brightness (Max.) | ≥1100cd/m2 |
| Color Temperature | 9000±500K |
| Viewing Angle |
Horizontal Viewing Angle 120° Vertical Viewing Angle 120° |
| Best Viewing Distance | ≥4m |
| Gray Level | ≥14 Bit |
| Luminance & Chromaticity Correction | Supporting |
| Refresh Rate | ≥1920Hz(Depending on the system loading) |
| Load Range | (W) 128 dots (H) 256 dots |
| Luminance Adjustment Range | 0 to 255 adjusting |
| MTBF | 50,000 hr |
| Working Temperature | -20 ℃ to 60 ℃ |
| Working Humidity | 10%-90%RH No Condensation |
| Storage Temperature | -40 ℃ to 80 ℃ |
Q1. Can I have a sample order for LED display?
A: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
Q2. What about the lead time?
A:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for LED display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
