Crane Lifting Spreader Beam

FOB Reference Price: Get Latest Price

≥5 Pieces

US $1250

≥15 Pieces

US $1200

≥30 Pieces

US $1100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: Crane Lifting Spreader Beam

Model:: LB Series

Brand:: Xingzhou

Material:: High Quality Alloy Steel

Mechanical Structure:: Iron channel structure

Load Range:: 1-100 Tons

Adjustable Range:: 2-10 m

Effective Length:: 3-10 m

Self-Weight:: 200-5000 Kg

Color:: Yellow

Quick Details

Warranty:: 1.5 years

Place of Origin:: Jiangsu, China

Brand Name:: Xingzhou

Product Name:: Crane Lifting Spreader Beam

Model:: LB Series

Brand:: Xingzhou

Material:: High Quality Alloy Steel

Mechanical Structure:: Iron channel structure

Load Range:: 1-100 Tons

Adjustable Range:: 2-10 m

Effective Length:: 3-10 m

Self-Weight:: 200-5000 Kg

Color:: Yellow

Product Description

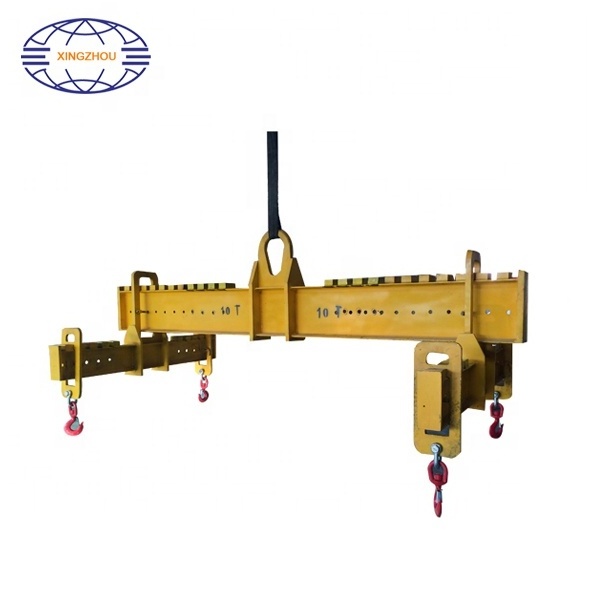

Crane Lifting Spreader Beam

Item No.	LB Series
Features	- Main Usage: Heavy duty, lifting and moving a wide range of industrial loads - Material: High-quality low-carbon alloy steel - Load Range: 1Ton-100Tons according to different beam - Mechanical Structure: iron channel structure and box-beam structure - Other Type: single beam/double beam/ H-beam/ T-beam/ Tic-Tac-beam/ rotor beam, etc. - Safety, Reliable
Performance	lifting and moving a wide range of industrial loads
MOQ	1 unit
Warranty	2 Years
Payment	L/C, T/T, Western Union
Packing Details	Iron Pack
Diagrammatic Drawing

S teel Lifting beam can be used to lift and move a wide range of industrial loads. The hooks on both ends can be adjusted to any location you want. Lifting beam is a good choice when the headroom is limited and restricts the use of overhead rigging in the application. Lifting beam is usually made from a beam and a single lifting point at the top with several lift points at the bottom.

The strong facility and capacity of lifting beam can make big size structure and the lift unit can reach 150 Tons. Xingzhou Industrial & Mining Equipment Co. Ltd can design and produce other lifting beam according to your specific application.

Technical Parameter (For Reference Only):

Rated Load Ton	Adjustable Range m	Effective Length m
2	2-3	3
3.2	3-5	5
5	3-5	5
8	4-6	6
10	4-6	6
12.5	4-6	6
16	6-8	8
20	6-8	8
25	6-8	8
32	8-10	10
40	8-10	10

There are other type of Metallurgy Clamps and coil lifter including lifting beam, roll lifter, steel bar lifter, single roll lifter, double roll lifter and Round ingot lifter. We can also produce lifter for lifting hot steel water gantry hook. Hanging ears and hooks are made by molded steel or round steel, multi-ply slab Welded. There are abrasion ply in the contacted position among hanging hook, ear and the hot steel box ear.

They all can be designed by three structures, mechanical structure, electrical motorized structure or hydraulic structure.

We can design and produce other type of lifters and sclamps according to your specific requirement.
