Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
Other
-
Cutting Thickness:
-
1-25mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Raycus
-
Weight (KG):
-
3000 KG
-
Product name:
-

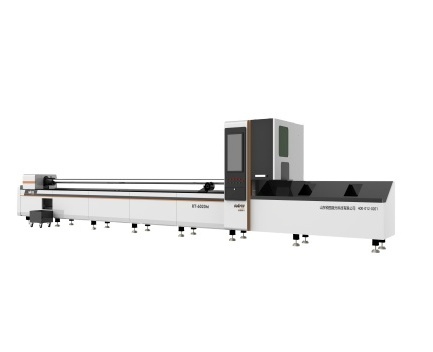

Fiber Laser Cutting Machine
-
model:
-
RT6012M,RT6017M,RT6020M
-
Maximum length of pipe:
-
6m/8m/10m/12m
-
diameter:
-
20-220mm
-
power:
-
1000w-4000w
-
linear axis speed:
-
80mm/min
-
rotating shaft speed:
-
2G
-
positioning accuracy:
-
±0.03mm
-
Repeated positioning accuracy:
-
±0.05mm
-
Power Supply:
-
380V±10%/50 HZ
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
120m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
Other
-
Cutting Thickness:
-
1-25mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Raycus
-
Weight (KG):
-
3000 KG
-
Product name:
-
Fiber Laser Cutting Machine
-
model:
-
RT6012M,RT6017M,RT6020M
-
Maximum length of pipe:
-
6m/8m/10m/12m
-
diameter:
-
20-220mm
-
power:
-
1000w-4000w
-
linear axis speed:
-
80mm/min
-
rotating shaft speed:
-
2G
-
positioning accuracy:
-
±0.03mm
-
Repeated positioning accuracy:
-
±0.05mm
-
Power Supply:
-
380V±10%/50 HZ
Product Overview
Product Paramenters
|
Model
|
RT6012M
|
RT6017M
|
RT6024M
|
RT6035M
|
|
|
||
|
Pipe processing diameter
|
10-120mm
|
10-170mm
|
15-250mm
|
15-350mm
|
6050*2050mm
|
6050*2550mm
|
||
|
Tube processing length
|
6500
|
6500
|
6500
|
6500
|
|
|
||
|
X-axis travel
|
140
|
220
|
260
|
380
|
|
|
||
|
Y-axis travel
|
6500
|
6500
|
6500
|
6500
|
|
|
||
|
Z-axis travel
|
140
|
140
|
200
|
240
|
|
|
||
|
W axis maximum speed
|
200r/min
|
120r/min
|
80r/min
|
60r/min
|
|
|
||
|
maximum load
|
170KG
|
400KG
|
500KG
|
1200KG
|
|
|
||
|
tailings
|
≤50mm
|
≤50mm
|
≤50mm
|
≤50mm
|
|
|
||
|
X-axis maximum moving speed
|
70m/min
|
70m/min
|
70m/min
|
70m/min
|
|
|
||
|
X-axis maximum acceleration
|
1.2G
|
1.2G
|
1.2G
|
1.2G
|
|
|
||
|
Y-axis maximum moving speed
|
80m/min
|
80m/min
|
80m/min
|
80m/min
|
|
|
||
|
Y-axis maximum acceleration
|
1.2G
|
1.2G
|
1.2G
|
1.2G
|
|
|
||
Products Description
Max Laser Source
Raycus/Max/IPG, multiple choice
Different brands, different laser power are available. The higher power, the thicker cutting thickness.
Different brands, different laser power are available. The higher power, the thicker cutting thickness.
Raytools Laser Head
We can provide all high quality laser heads on the market. It's been tested by us for a long time.
Fuji
/Yaskawa all of our long-term partners.
all of our long-term partners.
Fuji Servo Motor and Driver
By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time. It guarantees the working stability and accuracy.
Yaskawa is also provided.
FSCUT 3000S Control System
Professional optical fiber cutting control system,
cooperate with
Advantech industrial computer.
Support remote control.
S&A/Hanli Water Chiller
The external water cooling system is equipped with a deionizer, filter, temperature regulator and allows you
to reduce the frequency of water changes.
Temperature control accuracy: ± 1 ° С.
to reduce the frequency of water changes.
MOTOREDUCER Reducer
High power, small size, large torque, high rigidity, high efficiency, low noise, low backlash
High precision machine bed
Completely independent research and development, by the party welding lathe bed base, through the large gantry milling machine. For large machine bed we have many years of experience in processing, the internal stress release completely again after finishing, ensure the machining accuracy. High strength, stability, ensuring 20 years of use without distortion.
Pneumatic chuck
Suitable for laser professional pipe cutting machine.
The double pneumatic chuck of the industrial pipe cutting machine adopts an eight-cylinder structure, which has stronger holding force, full-stroke clamping and higher automation.
