Quick Details
-
Dual Power Supply:
-
Support
-
Protocol:
-
UDP RTP HLS RTMP RTSP MMS TCP FLV Smooth streaming
-
Application:
-
Transcoding, Downscale, Transrating, Protocol Gateway, etc.
-
Video Codec:
-
H.264 MPEG2
-
Audio Codec:
-
MPEG1L2 HE-AAC(v1/v2) AAC-L ,AC3 E-AC3
-
Bitrate Control:
-
CBR VBR ABR
-
Closed Caption:
-
Support pass through
-
Teletext:
-
Support pass through
-
DVB Subtitle:
-
Support pass through
-
Interlaced/De-interlaced:
-
Support pass through
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wellav
-
Model Number:
-
OMP500
-
Dual Power Supply:
-
Support
-
Protocol:
-
UDP RTP HLS RTMP RTSP MMS TCP FLV Smooth streaming
-
Application:
-
Transcoding, Downscale, Transrating, Protocol Gateway, etc.
-
Video Codec:
-
H.264 MPEG2
-
Audio Codec:
-
MPEG1L2 HE-AAC(v1/v2) AAC-L ,AC3 E-AC3
-
Bitrate Control:
-
CBR VBR ABR
-
Closed Caption:
-
Support pass through
-
Teletext:
-
Support pass through
-
DVB Subtitle:
-
Support pass through
-
Interlaced/De-interlaced:
-
Support pass through
INTRODUCTION

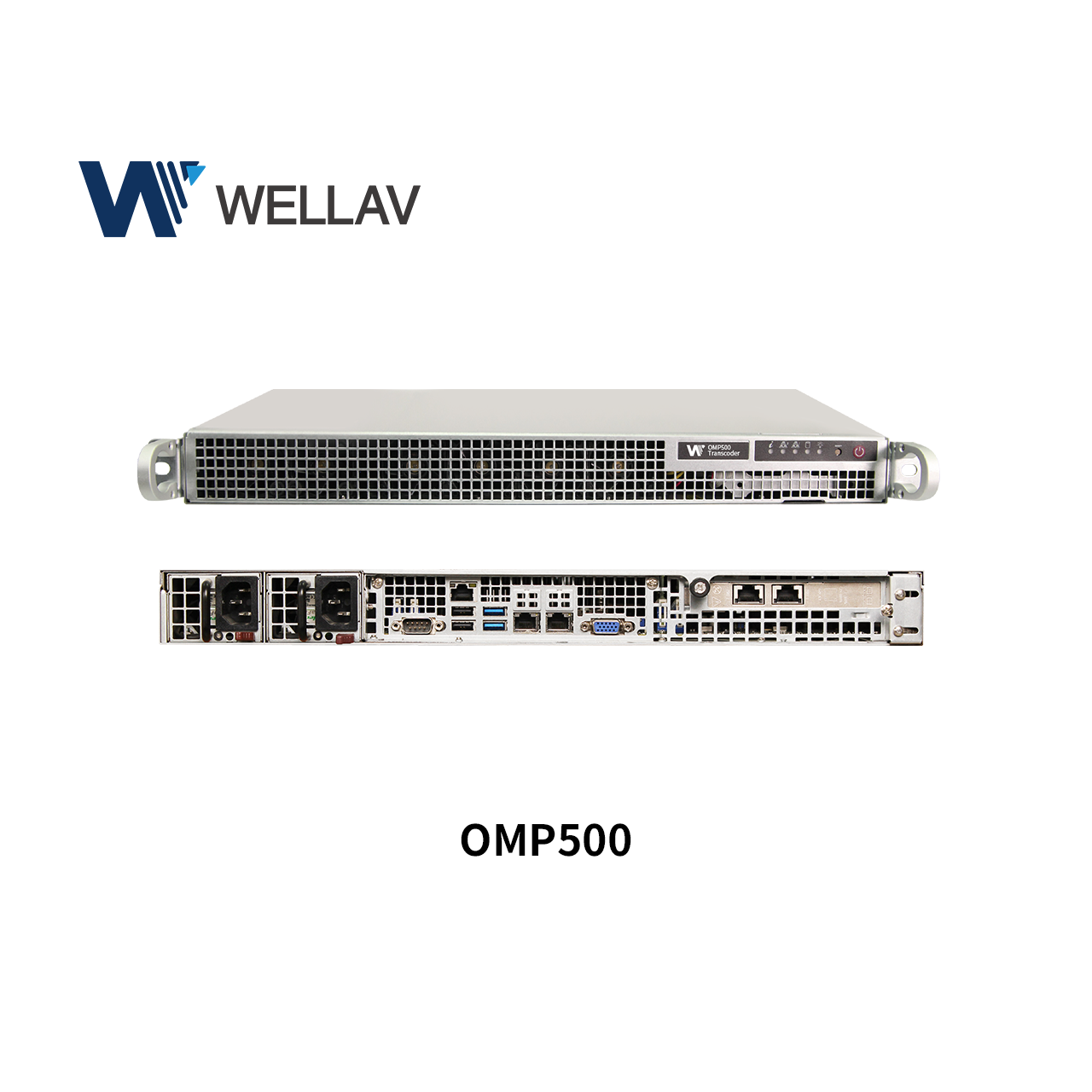

OMP500 is the software based multi-channel transcoder platform that supports both linear and OTT transcoding which allows to integrate different video format between networks and enable content streaming over public internet or via mobile network. Featured by B frame and de-interlacing, it can also transcode video between progressive and interlaced format seamlessly in high quality while low bandwidth. With UDP/RTP/HLS/RTSP and more lP protocol options the OMP500 can fit into any architecture to enable OTT delivery in your system. With three available models to choose from the OMP500 can enable OTT services on any budget. Ranging from a budget friendly entry level system for one OTT service to the highest performance model capable of providing up to forty OTT services.
APPLICATON
1. Convert H.264/MPEG-2 input into H.264 or MPEG-2 output for compatibility with different networks
2. Scale video resolutions and change frame-rates to accommodate HD or SD system requirements
3. Receive OTT sources over the public internet as Unicast, HLS, or RTMP and convert to traditional multicast UDP/RTP IPTV signal type
4. Transcode and package up to four adaptive bit-rate (H.264) profiles for traditional OTT uplink into Origin Server or Content Delivery Network (CDN)
5. Reduce bandwidth by changing codecs and resolution (commonly known as " rate-shaping" or " trans-rating")
HIGHLIGHTS
- Supports previewing input video and detailed service analysis
- Interlace and deinterlace options, advanded de-jitter and denoise for best video /audio quality
- Logo/Graphic insertion, text overlay (licensed feature) and auxiliary data processing such as Closed Caption, Teletext and DVB subtitles
- Supports input channel, port level and system level redundancy
- Flexible and future proof, support new features by software/license upgrade
-
Provides management with easy to use web interface and SNMP protocol
TECHNICAL SPECIFICATION
| Input | |
| Interface | RJ45(GbE Port) |
| Protocols | UDP,RTP,HLS,RTMP,RTSP,MMS,TCP, FLV, Smooth streaming |
| Video Codecs |
MPEG-2 MP ML/HL H.264 MP L1.2/2.2/3.0/3.1,HP L3.1/4.0/4.1 |
| Video Resolutions |
HD: 1920*1080p 60/59.94/50/30/29.97/25fps 1920*1080i 30/29.97/25fps 1280*720p 60/59.94/50/30/29.97/25fps SD: 720*576p 50/25fps 720*576i 25fps 720*480p 60/30/29.97fps 720*480i 30/29.97fps |
| Audio Codecs | MPEG1L2,HE-AAC(v1/v2),AAC-LC,AC3,E-AC3 |
| Output | |
| lnterface | RJ45(GbE Port) |
| Protocols | HLS,RTMP,HDS, Smooth Streaming,MPEG-DASH,RTSP,FLV,MMS |
| Video Codecs |
H.264 MP L1.2/2.2/3.0/3.1,HP L3.1/4.0/4.1 MPEG-2 MP HL/ML |
| Video Resolutions |
HD: 1920*1080p @60/59.94/50/30/29.97/25fps 1920*1080i @30/29.97/25fps 1280*720p @60/59.94/50/30/29.97/25fps
SD: 720*576p @50/25fps 720*576i@25fps 720*480p @60/30/29.97fps720*480i @30/29.97fps And more resolutions |
| Bitrate Control | CBR,VBR,ABR |
| Video Bitrate |
100Kbps~15Mbps (depending on combination of profile, level and resolution)
|
| Audio codecs |
MPEG1-Layerll,AAC-LC,HE-AAC(v1/v2)AC3/E-AC3 Pass-through supported Up to 4 channels per video |
| DVB Subtitle | Support pass-through |
| Teletext | Support pass-through |
| Closed Caption | Support pass-through |
| Processing Capacity | |
| Entry Level system: | OMP500-00A |
| IPTV Mode | 3 HD (up to 1080p60) or 12 SD H.264/MPEG-2 transcoding |
| OTT Mode |
1 HD or 6 SD H.264/MPEG-2 transcoding with up to 4 profiles: HD: Profile 1: up to 1080p60 Profile 2: up to 720p60 Profile 3: up to 576p25 Profile 4: up tp 480p25 SD: Profile 1: up to 576p25 Profile 2: up to 480p25 Profile 3: up to 360p25 Profile 4: up tp 240p25 |
| High Performance system: | OMP500-01A |
| IPTV Mode | 10 HD (up to 1080p60) or 40 SD H.264/MPEG-2 transcoding |
| OTT Mode |
5HD or 20 SD H.264/MPEG-2 transcoding with up to 4 profiles: HD: Profile 1: up to 1080p60 Profile 2: up to 720p60 Profile 3: up to 576p25 Profile 4: up tp 480p25 SD: Profile 1: up to 576p25 Profile 2: up to 480p25 Profile 3: up to 360p25 Profile 4: up tp 240p25 |
| Ultra High performance system: | OMP500-02 |
| IPTV Mode | 20 HD or 80 SD H.264/MPEG-2 transcoding |
| OTT Mode |
10 HD or 40 SD H.264/MPEG-2ABR transcoding with up to 4 profiles: HD: Profile 1: up to 1080p60 Profile 2: up to 720p60 Profile 3: up to 576p25 Profile 4: up tp 480p25 SD: Profile 1: up to 576p25 Profile 2: up to 480p25 Profile 3: up to 360p25 Profile 4: up tp 240p25 |
| Physical & Environment | |
| Dimension ( Wx HxD) |
OMP500-00A: 426mm x 43mm x 356mm (16.8" x1.7" x 14") Package: 596mm x 175mm x 495mm (22.4" x6.9" x19.5")
OMP500-01A: 437mm x 43mm x 429mm (17.2" x1.7"x 16.9") Package: 686mm x 203mm x 610mm (27"x 8" x 24")
OMP500-02: 437mm x 43mm x 777mm (17.20" x 1.69"x 30.59") Package: 610mm x 204mm x 1016mm (24.02"x8.03" x 40"") |
| Weight |
OMP5OO-0OA:4.99 kg (11 lb ) OMP500-01A: 11.43 kg (25.2 lb) OMP500-02:16 kg (35.27lb) |
| Power |
OMP500-O0A: Single AC Power,10ov-240V/50-60HZ,Max 200W OMP500-01A: Dual AC Power,10OV-240V/50-60HZ,Max 400w OMP500-02: Dual AC Power,10OV-240V/50-60HZ,Max 520w |
| Operation temperature | 5℃- 35°℃(41°F -95°F) |
| Storage temperature | -40°c- 70C (-40°F - 158°F) |
ORDER INFORMATION
| Model | Description |
| OMP500-00A | Entry Level system supports 3 HD services or 12 SD services H.264/MPEG-2 linear transcoding, or 1 HD or 6 SD H.264/MPEG-2ABR transcoding with 4 profiles |
| OMP500-01A | High Performance system supports up to 10 HD services or 40 SD services H.264/MPEG-2 linear transcoding, or 5 HD services or 20 SD services H.264/MPEG-2 ABR transcoding with 4 profiles |
| OMP500-02 | Ultra High Performance system supports up to 20xHD or 80xSD H.264/MPEG-2 linear transcoding, or10xHD or 40xSD H.264/MPEG-2ABR transcoding with 4 profiles. |
