Precast concrete fence wall machine making two lines of wall panels in one go

Precast concrete fence wall machine making two lines of wall panels in one go

FOB Reference Price: Get Latest Price

≥1 Sets

US $4800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HENAN WISHES

Voltage:: 380V/50HZ OR CUSTOMIZATION

Power:: 5kw-10kw

Dimension(L*W*H):: Machine dimensions depend on the sizes of beam

Weight:: 1000 kg

Features:: Easy Operation

H beam width:: 12-25CM

H beam thickness:: 12-25cm

Panel Width:: 300-600mm

Panel thickness:: 50-120cm

Reinforcement material:: steel wires

Main process:: Puhsing and extrusion

Finished products:: load-bearing concrete beam

Capacity:: 300-450 meters per hour

Usage:: For supporting fence wall

Advantages:: High Efficent

Quick Details

Application:: Building materials machinary

Production Capacity:: 1.3-1.5m/min

Place of Origin:: Henan, China

Brand Name:: HENAN WISHES

Voltage:: 380V/50HZ OR CUSTOMIZATION

Power:: 5kw-10kw

Dimension(L*W*H):: Machine dimensions depend on the sizes of beam

Weight:: 1000 kg

Features:: Easy Operation

H beam width:: 12-25CM

H beam thickness:: 12-25cm

Panel Width:: 300-600mm

Panel thickness:: 50-120cm

Reinforcement material:: steel wires

Main process:: Puhsing and extrusion

Finished products:: load-bearing concrete beam

Capacity:: 300-450 meters per hour

Usage:: For supporting fence wall

Advantages:: High Efficent

Product Overview

Precast Fence Wall Making Machine

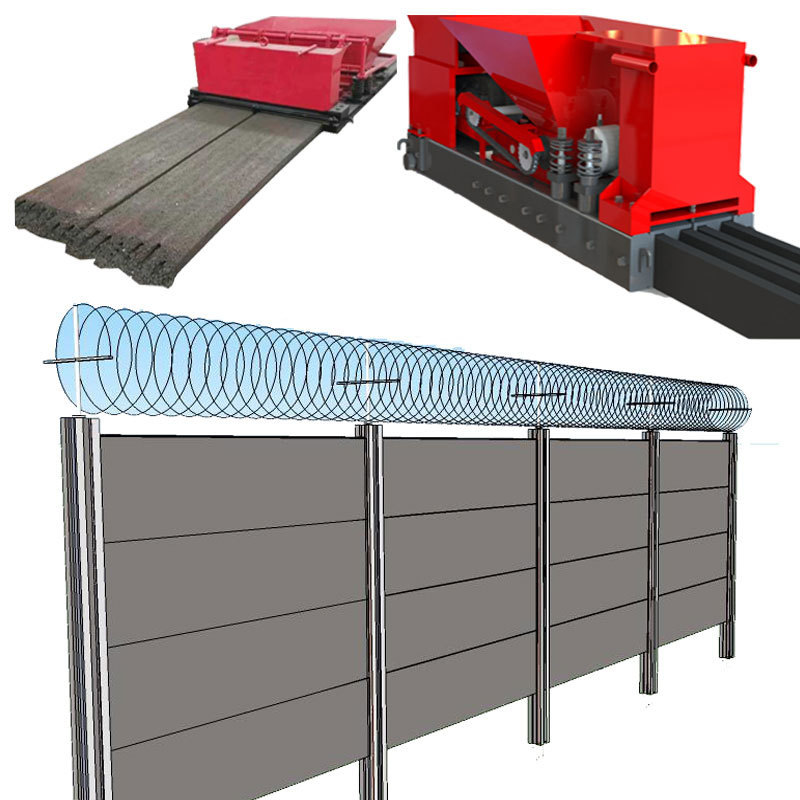

The precast concrete fence wall is a new type of wall structure composed of wall panels and H-shaped columns. The production of precast fence walls requires at least two main machines, namely the concrete boundary wall panel machine and the concrete H column machine. We called the two machines as precast concrete fence wall machine or precast boundary wall machine Both machines work on
the extrusion or pushing principle.

FEATURES AT A GLANCE

Concrete H column machine for fence walls

The equipment has many obvious features such as reasonable structure, convenient maintenance, flexible operation, low energy
consumption, and high production efficiency. It is also equipped with a lifting walking mechanism, which is flexible to move and
easy to disassemble. It is ideal and energy-saving production equipment to make concrete H posts.

The key parts inside the machine are made of wear-resistant alloy raw materials.

The new deceleration and transmission system makes the machine run more smoothly.

Convenient operation and control switch, easier to operate. No special skills required

About the Finished Products of H beam
The H beam or columns are mainly used for supporting the wall panels in the structure of the concrete boundary wall. We can design the concrete h column machine o make the different sizes (thickness×width ) of the H beams or coulns to fit the different thickness of wall panels. Please refer to below sizes of H columns and its matching wall panels
1. H columns|beams (150×150mm) to support the 50mm thick wall panels. Size 50×300m or 50×600mm
2. H columns|beams (180×180mm) to support the 75 or 80mm thickness wall panels sizes 75*600 or 80*600
3. H columns|beams (200×200mm) to support the 90 mm thickness wall panels size 90*600mm

Besides, we can design the machine to make the H beams sizes to fit your wall panels

Fence wall panel machine

The machine can make two lines of wall panels at one time

PRODUCT SPECIFICATIONS

No	Models	Beam sizes	No. of beams	For Wall panel thickness
1	TWT12X12	12X12CM	4 beams	4-5CM
2	TWT-15X15	15X15CM	3-4 beams	5-6CM
3	TWT 18X18	18X18CM	2 beams	7-8CM
4	TWT-20X20	20X20CM	2 beams	9-10CM
5	TWT-22X25	25X25CM	2 beams	12-15CM
