Quick Details
-
Power:
-
Manual/Electric
-
Min. Lifting Height:
-
280-500mm
-
Table Size:
-
Customized
-
Weight:
-
235kg
-
Certification:
-
CE
-
After-sales Service Provided:
-
No overseas service provided
-
Lift capacity(standard):
-
150-2000kg
-
Platform height(standard):
-
720-1700mm
-
Platform size:
-
Customized Available
-
Lift height:
-
30mm/stroke
-
Wheel type:
-
Pu
-
Net weight:
-
40-230kg
-
Basic color:
-
Orange/Yellow
-
Packing:
-
In Carton
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HANMOKE
-
Power:
-
Manual/Electric
-
Min. Lifting Height:
-
280-500mm
-
Table Size:
-
Customized
-
Weight:
-
235kg
-
Certification:
-
CE
-
After-sales Service Provided:
-
No overseas service provided
-
Lift capacity(standard):
-
150-2000kg
-
Platform height(standard):
-
720-1700mm
-
Platform size:
-
Customized Available
-
Lift height:
-
30mm/stroke
-
Wheel type:
-
Pu
-
Net weight:
-
40-230kg
-
Basic color:
-
Orange/Yellow
-
Packing:
-
In Carton
Hydraulic Portable Manual Lift Table
Ideal for transporting loads to and from work cells, the portable manual lift table can be used as work platforms or raised and lowered to facilitate load transfer to tables or benches .
Specifications:

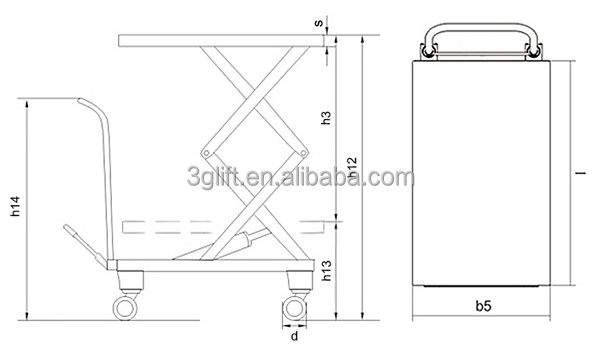

| Model | HPD-1000 | HPD-2000 | HPS-1000 | ||
| Load capacity | kg | 1000 | 2000 | 1000 | |
| Raised height | h12 | mm | 1000 | 1000 | 1700 |
| Lowered height | h13 | mm | 380 | 380 | 500 |
| Platform size | l x b5 | mm | 1200 x 610 | 1200 x 610 | 1200 x 610 |
| Tabletop thickness | s | mm | 80 | 80 | 80 |
| Lifting speed | mm/s | 15 | 15 | 15 | |
| Wheel dimensions | d | mm | Ø150 | Ø150 | Ø150 |
| Net weight | kg | 165 | 190 | 225 | |
| Gross weight | kg | 167 | 192 | 227 | |
| Packing size | mm | 1370/620/390 | 1370/620/390 | 1370/620/510 | |
| Packing volume | CBM | 0.33 | 0.33 | 0.44 | |
| Qty./20'GP | pcs | 65 | 65 | 52 |
Measurements:
• Welded all-steel frame with Powder-coat finish for maximum durability and protection .

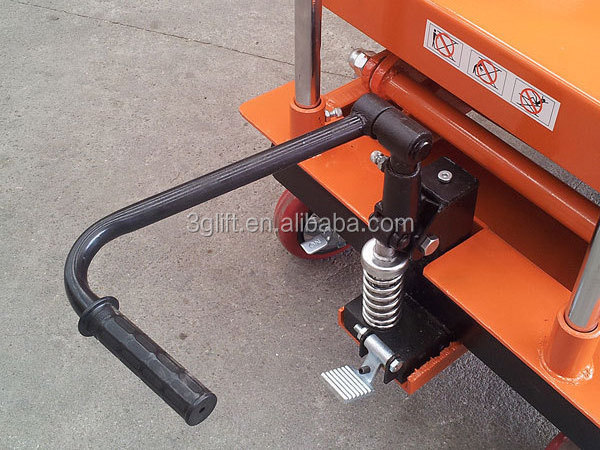

• Convenient foot pump for easy lifting and lowering .
• Dual-Cylinder design (standard on HPD models & HPS1000) .
• Overload protection ball valve prevents lifting loads past maximum capacity .
• Steering casters with brakes .
• Rigid l oad casters .
• Removable c
hromed handle frame is both attractive and durable
.
• Safety Instruction.
• Double scissor lift provides additional lifting height (standard on HPS models).
• Packed in standard export package (packed in cartons)
• Custom sizes and capacities can be designed for your specific needs .
