Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Stainless Steel Wire Mesh
-
Brand Name:
-
Hitex
-
Product name:
-
304 304L 316 316L Woven Stainless Steel Wire Mesh Cloth
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Woven Wire Mesh
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Stainless Steel Wire Mesh
-
Brand Name:
-
Hitex
-
Product name:
-
304 304L 316 316L Woven Stainless Steel Wire Mesh Cloth
304 304L 316 316L Woven Stainless Steel Wire Mesh Cloth

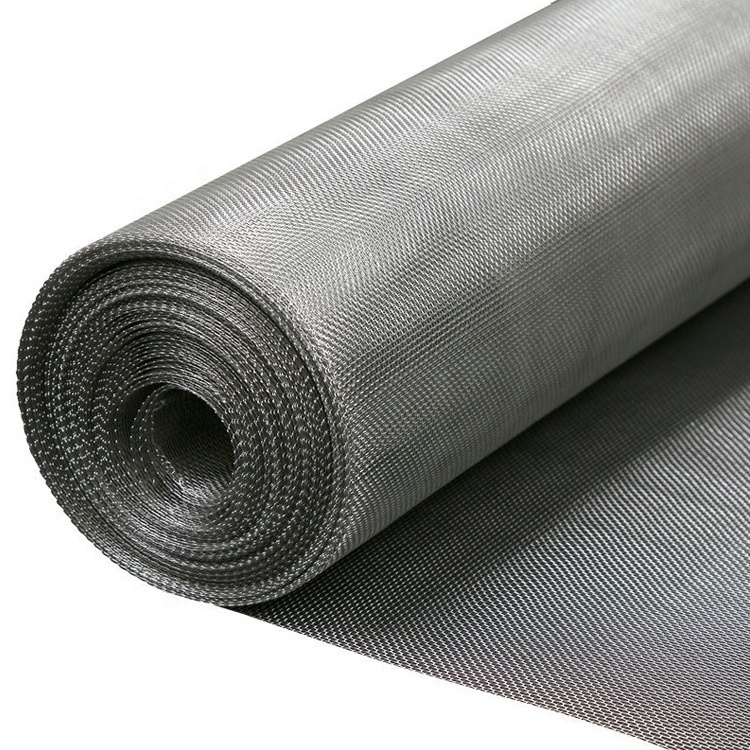

Stainless Steel Wire Mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
Used for water, oil and other liquid precision pressure filter,fuel filter, vacuum filter and is suitable for the aerospace, petroleum, chemical, chemical fiber, rubber,tire manufacturing, metallurgy, medicine, food and other industries, pressure is not easy to deformation,high temperature resistant, do the necessary material sintering net.
|
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area |
Weight |
||
|
Mesh Acount |
Inch |
mm |
inch |
mm |
% |
LB/100SQfoot |
|
10X10 |
0.02 |
0.51 |
0.08 |
2.03 |
64 |
26.1 |
|
20X20 |
0.02 |
0.508 |
0.03 |
0.76 |
36 |
55.2 |
|
30X30 |
0.013 |
0.33 |
0.0203 |
0.52 |
37.1 |
34.8 |
|
50X50 |
0.009 |
0.229 |
0.011 |
0.28 |
30.3 |
28.4 |
|
60X60 |
0.0075 |
0.191 |
0.0092 |
0.23 |
30.5 |
23.7 |
|
70X70 |
0.0065 |
0.165 |
0.0078 |
0.2 |
29.8 |
20.8 |
|
80X80 |
0.0065 |
0.165 |
0.006 |
0.15 |
23 |
23.2 |
|
100X100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
|
200X200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
|
300X300 |
0.0051 |
0.0381 |
0.0018 |
0.0457 |
29.7 |
3.04 |
|
400X400 |
0.001 |
0.0254 |
0.0015 |
0.37 |
36 |
3.3 |
|
500X500 |
0.001 |
0.0254 |
0.001 |
0.0254 |
25 |
3.8 |
*Specific products could be made according to customers’requirements.
l Material for Stainless Steel Wire Mesh and Woven Wire Cloth : 304 304L 316 316L
l Weaving Types of Stainless Steel Wiremesh: Plain Weave, Twilled Weave, Dutch Plain Weave, Dutch Twilled Weave, Reverse Weave, Five Heddle Weave
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
If you have any inquiry, welcome to ask for quote and we will relpy you as soon as possible.
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
