Quick Details
-
Product Weight（kg）:
-
18
-
Lamp Luminous Flux(lm):
-
20000
-
Beam Angle(°):
-
180
-
Place of Origin:
-
Italy
-
Brand Name:
-
Sirena
-
TYPICAL APPLICATIONS:
-
Aviation, airports, buildings, infrastructures
-
Certificaions:
-
ICAO; DGAC/STAC; UK CA; FAA
-
LED number:
-
3
-
Luminous effects:
-
Flash / Steady
-
Temperature range:
-
-30 / + 55
Quick Details
-
Warranty(Year):
-
2-Year
-
Lamp Body Material:
-
Aluminum
-
Light Source:
-
LED
-
Product Weight（kg）:
-
18
-
Lamp Luminous Flux(lm):
-
20000
-
Beam Angle(°):
-
180
-
Place of Origin:
-
Italy
-
Brand Name:
-
Sirena
-
TYPICAL APPLICATIONS:
-
Aviation, airports, buildings, infrastructures
-
Certificaions:
-
ICAO; DGAC/STAC; UK CA; FAA
-
LED number:
-
3
-
Luminous effects:
-
Flash / Steady
-
Temperature range:
-
-30 / + 55
Product Description

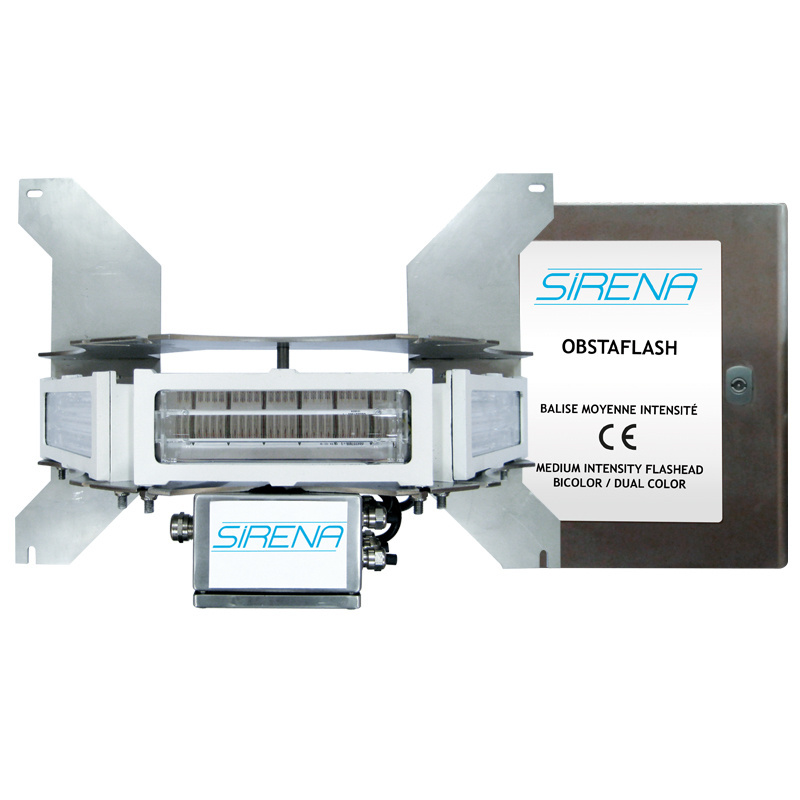

Medium Intensity Aircraft Warning Light engineered according to ICAO Medium Intensity Type A, B, C, B+A, C+A regulation.
OBSTAFLASH LED 180° is provided with 3 independent LED projectors 48V DC, powered by a stainless steel POWER CABINET. Wiring connector on the flash head included.
OBSTAFLASH LED 180° is available in the following LED versions: with red flashing light (50528), red steady light (50529), white flashing light (50530), dual color flashing light (50531), white flashing light and red steady (50532). OBSTAFLASH LED 180° is the ideal solution for day and/or night marking of all kind of obstacle higher than 45 meters. For obstacles below 150 meters the use of white or dual color during daytime obviates the need to paint the obstacle with red and white stripes.
KIT OBSTAFLASH LED 4×180° TYPE BC+A including 4 warning lights supplied with wiring cables (length to be agreed when ordering), 48V DC or 230V AC, powered by a stainless steel POWER CABINET.
OBSTAFLASH LED 180° is the ideal solution for buildings.
Voltages
48V DC, 230V AC (50/60Hz) +/-10% (through POWER CABINET)
For 48V DC versions, optional power supply through BATTERY CABINET (available on request)
Mechanical features
Aluminum and glass projector body
Stainless steel vertical support
Optical features
Horizontal beam spread 360° (at least 2 warning lights visible from each side of the obstacle)
Vertical beam spread >3°
Fixing
Through stainless steel vertical support with 4 fixing points
Technical features
POWER CABINET
– Safety alarm closing contact
– Surge protection
– NC and NO alarm dry contact in case of failure of the light or of the power supply
-Test button with three positions: remote (photocell) / day / night
– Master/slave configuration in case of use of more POWER CABINET through shielded cable 3G1,5
– 8 luminous LED indicators for an easy diagnostic
– Integrated photocell switch
– Possibility to connect intermediate Low Intensity Type B (NAVILITE 48V DC) lights for night operation only
– POWER CABINET available for 2,3 or 4 dual color warning lights or for 2 up to 12 red warning lights
Accessories
Twilight/night photocell according to ICAO and FAA norms (see accessories section)
GPS SYNCHRO interface for synchronisation of separate installations according to ICAO and FAA norms (see accessories section)
KIT DIAGNOSTIC GPRS allows remote diagnostic of lights and their power supply or of the batteries (see accessories section)
SYSTEM DESIGN SUPPORT
Our Team of experts can assist designers and installers with professional support in terms of norms and system configuration.
OBSTAFLASH LED 180° is provided with 3 independent LED projectors 48V DC, powered by a stainless steel POWER CABINET. Wiring connector on the flash head included.
OBSTAFLASH LED 180° is available in the following LED versions: with red flashing light (50528), red steady light (50529), white flashing light (50530), dual color flashing light (50531), white flashing light and red steady (50532). OBSTAFLASH LED 180° is the ideal solution for day and/or night marking of all kind of obstacle higher than 45 meters. For obstacles below 150 meters the use of white or dual color during daytime obviates the need to paint the obstacle with red and white stripes.
The product shall be used with an external photocell (see accessories section), connected to the POWER CABINET and oriented to the North (in the North Hemisphere).
KIT OBSTAFLASH LED 4×180° TYPE BC+A including 4 warning lights supplied with wiring cables (length to be agreed when ordering), 48V DC or 230V AC, powered by a stainless steel POWER CABINET.
OBSTAFLASH LED 180° is the ideal solution for buildings.
Voltages
48V DC, 230V AC (50/60Hz) +/-10% (through POWER CABINET)
For 48V DC versions, optional power supply through BATTERY CABINET (available on request)
Mechanical features
Aluminum and glass projector body
Stainless steel vertical support
Optical features
Horizontal beam spread 360° (at least 2 warning lights visible from each side of the obstacle)
Vertical beam spread >3°
Fixing
Through stainless steel vertical support with 4 fixing points
Technical features
POWER CABINET
– Safety alarm closing contact
– Surge protection
– NC and NO alarm dry contact in case of failure of the light or of the power supply
-Test button with three positions: remote (photocell) / day / night
– Master/slave configuration in case of use of more POWER CABINET through shielded cable 3G1,5
– 8 luminous LED indicators for an easy diagnostic
– Integrated photocell switch
– Possibility to connect intermediate Low Intensity Type B (NAVILITE 48V DC) lights for night operation only
– POWER CABINET available for 2,3 or 4 dual color warning lights or for 2 up to 12 red warning lights
Accessories
Twilight/night photocell according to ICAO and FAA norms (see accessories section)
GPS SYNCHRO interface for synchronisation of separate installations according to ICAO and FAA norms (see accessories section)
KIT DIAGNOSTIC GPRS allows remote diagnostic of lights and their power supply or of the batteries (see accessories section)
SYSTEM DESIGN SUPPORT
Our Team of experts can assist designers and installers with professional support in terms of norms and system configuration.
Specification
|
item
|
value
|
|
Warranty(Year)
|
2-Year
|
|
Type
|
Aviation Obstruction Lights
|
|
Support Dimmer
|
NO
|
|
Lifespan (hours)
|
50000
|
|
Working Time (hours)
|
50000
|
|
Product Weight（kg）
|
18
|
|
Input Voltage(V)
|
DC 48V
|
|
Lamp Luminous Flux(lm)
|
20000
|
|
Beam Angle(°)
|
180
|
|
IP Rating
|
IP66
|
|
Emitting Color
|
Red
|
|
Lamp Body Material
|
Aluminum
|
|
Light Source
|
LED
|
|
Place of Origin
|
Italy
|
|
Brand Name
|
Sirena
|
|
Lighting solutions service
|
Project Installation
|
|
TYPICAL APPLICATIONS
|
Aviation, airports, buildings, infrastructures
|
|
Certificaions
|
ICAO; DGAC/STAC; UK CA; FAA
|
|
LED number
|
3
|
|
Luminous effects
|
Flash / Steady
|
|
Temperature range
|
-30 / + 55
|
