Quick Details
-
Dimension(L*W*H):
-
5200*1850*2350mm
-
Weight:
-
7000 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
yes
-
Type::
-
water well drilling equipment
-
Drilling diameter:
-
90---250mm
-
Drilling depth:
-
0-300m
-
walking speed:
-
2km/h
-
Torque of Rotary:
-
8500-10000NM
-
Working pressure:
-
1.7-3.3MPA
-
Air consumption:
-
16---25m3/min
-
diesel power:
-
85KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5200*1850*2350mm
-
Weight:
-
7000 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
yes
-
Type::
-
water well drilling equipment
-
Drilling diameter:
-
90---250mm
-
Drilling depth:
-
0-300m
-
walking speed:
-
2km/h
-
Torque of Rotary:
-
8500-10000NM
-
Working pressure:
-
1.7-3.3MPA
-
Air consumption:
-
16---25m3/min
-
diesel power:
-
85KW

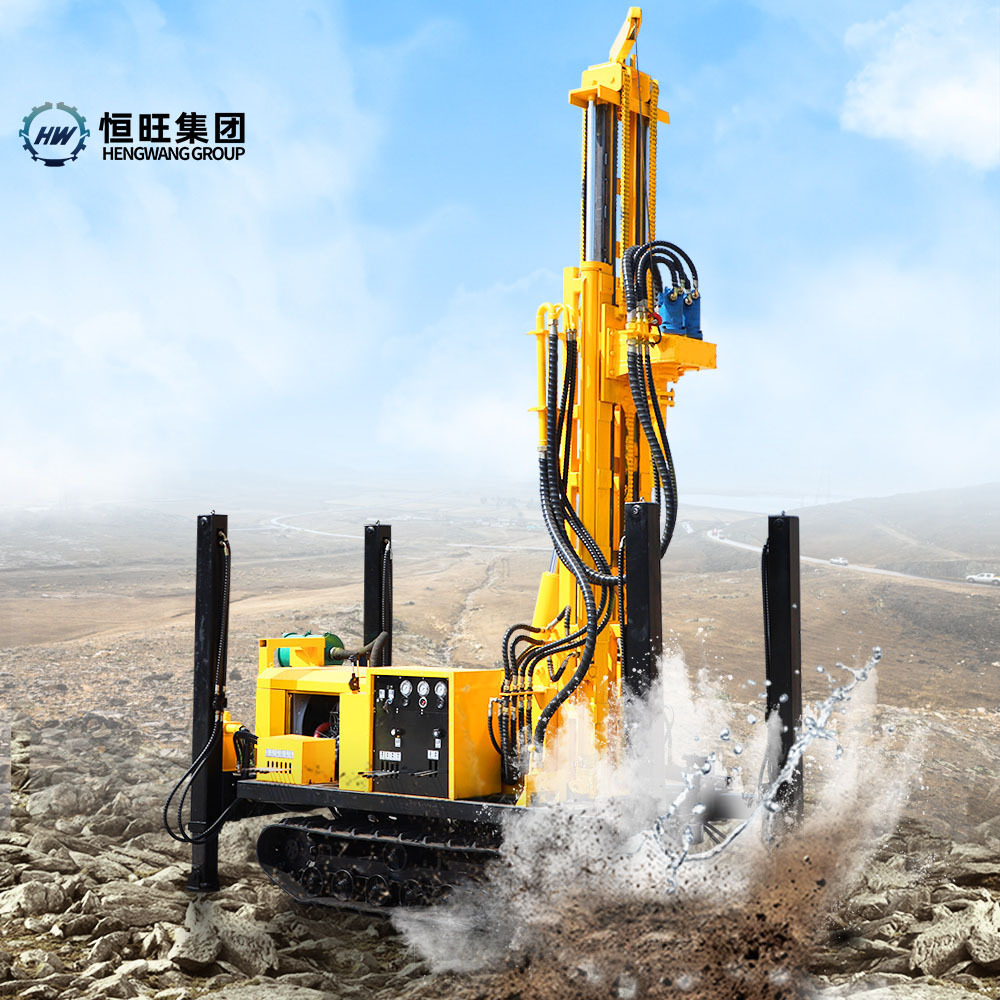

China Hengwang High Quality Portable Deep Water Well Rotary Crawler Drilling Rig
Product Description
HW-260L(CRAWLER TYPE)
Super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
HW series of
well drilling rig
is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling
wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water
engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine
adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded
multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life
of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console,
easy to operate.
Product Paramenters
|
deep well drilling rig machine for rock
|
|
|
|
|
|
|
||||||
|
Model
|
HQZ160L
|
HQZ180L
|
HQZ260L
|
HQZ320L
|
HQZ400L
|
HQZ500L
|
||||||
|
Overall weight (T)
|
2.6
|
4.5
|
4.8
|
9
|
10
|
11.5
|
||||||
|
Dimension (mm )
|
2300*1200*1900
|
3500*1700*2250
|
3900*1850*2350
|
5300*2200*2800
|
5400*2200*2870
|
6000*2200*2950
|
||||||
|
Drilling diameter(mm )
|
138-203
|
130-254
|
130-305
|
130-325
|
130-325
|
130-350
|
||||||
|
Drilling depth(m)
|
160
|
180
|
260
|
320
|
400
|
500
|
||||||
|
One-time advance length of the drill(mm)
|
2000
|
3600
|
3600
|
6600
|
6600
|
6600
|
||||||
|
Traveling speed(km/h )
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
||||||
|
Climbing ability(max )
|
30
|
30
|
30
|
30
|
30
|
30
|
||||||
|
Minimum Ground Clearance(mm)
|
250
|
250
|
250
|
230
|
300
|
350
|
||||||
|
Working Air Pressure(mpa )
|
1.45 - 2.5
|
1.45-2.5
|
1.7-3.0
|
1.7-3.3
|
1.7-3.5
|
1.7-3.5
|
||||||
|
Air consumption
|
15 - 27
|
17 - 31
|
17-31
|
17-35
|
17-35
|
17-42
|
||||||
|
Main machine power(kw)
|
73 /Yuchai
|
42/ Yunnei
|
76/Yunnei
|
85/Yuchai
|
110/Yuchai
|
115/Yuchai
|
||||||
Features:
1.High drilling efficiency, power provided by 85KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
1.High drilling efficiency, power provided by 85KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
Detailed Images
2024 forage d'eau drilling rig machine water well drilling rig 500m Hengwang water machine rig well drill for sale
2024 forage d'eau drilling rig machine water well drilling rig 500m Hengwang water machine rig well drill for sale
