Quick Details
-
Travel (W-axis) (mm):
-
200 mm
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
1.2
-
Production Capacity:
-
15-20 Sets/month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
AMCO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1600x1050x2250 mm
-
Weight (T):
-
1.2 T
-
Boring diameter:
-
14-60mm
-
Spindle travel:
-
200mm
-
Spindle speeds:
-
30-750/1000rpm
-
Spindle swing angle:
-
5°
-
Spindle cross travel:
-
950mm
-
Spindle longitudinal travel:
-
35mm
-
Ball seat move:
-
5mm
-
Angle of clamping device swing:
-
+50°:-45°
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Table Travel (X) (mm):
-
950 mm
-
Table Travel (Y) (mm):
-
35 mm
-
Table Travel (Z) (mm):
-
200 mm
-
Travel (W-axis) (mm):
-
200 mm
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
1.2
-
Production Capacity:
-
15-20 Sets/month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
AMCO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1600x1050x2250 mm
-
Weight (T):
-
1.2 T
-
Boring diameter:
-
14-60mm
-
Spindle travel:
-
200mm
-
Spindle speeds:
-
30-750/1000rpm
-
Spindle swing angle:
-
5°
-
Spindle cross travel:
-
950mm
-
Spindle longitudinal travel:
-
35mm
-
Ball seat move:
-
5mm
-
Angle of clamping device swing:
-
+50°:-45°
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support
valve seat cutter set
valve seat cutter set
valve seat cutter set

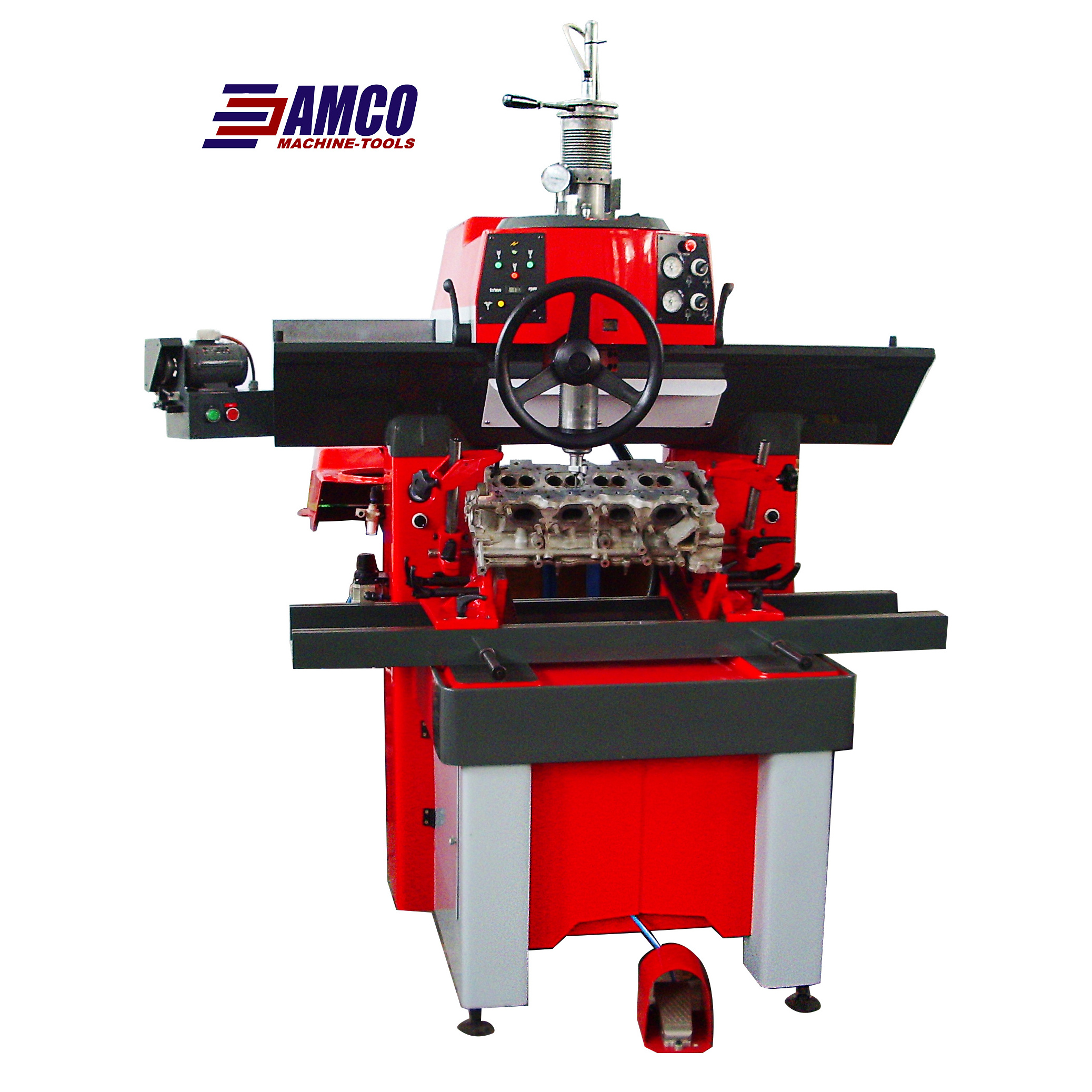

TQZ8560 is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc. The machine features are air-floating, vacuum clamping, high positing precision, easy operation. The machine is set with grinder for cutter and vacuum check device for workpiece.
Machine Features:
1. Air floating, auto-centering, vacuum clamping, high accuracy
2.Frequency motor spindle, stepless speed
3.Regrinding cetter with machine grinder
4.Rupply vacuum test device for checking the valve tightness
5.Widely used, rapid clamping rotary fixture
6.Supply all kinds angle cutter according order
|
Model |
TQZ8560 |
|
Spindle travel |
200mm |
|
Spindle speeds |
30-750/1000rpm |
|
Boring rang |
F 14- F 60mm |
|
Spindle swing angle |
5° |
|
Spindle cross travel |
950mm |
|
Spindle longitudinal travel |
35mm |
|
Ball seat move |
5mm |
|
Angle of clamping device swing |
+50°:-45° |
|
Spindle motor power |
0.4kw |
|
Air supply |
0.6-0.7Mpa;300L/min |
|
Max. Size of cylinder cap for repairing |
1200/500/300mm |
|
Machine weight(N/G) |
1050KG/1200KG |
|
Overall dimensions |
1600/1050/2170mm |
