Quick Details
-
Production Speed(Cycles/min):
-
35
-
Air Pressure(MPa):
-
0.8 MPa
-
Sheet Thickness(mm):
-
0.25 - 1 mm
-
Heating Power (kW):
-
60 kW
-
Air Comsumption(L/min):
-
2600 L/min
-
Water Comsumption(L/min):
-
10 L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
junda
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4500*2200*2500MM
-
Weight (T):
-
9 T
-
Power(KW):
-
75kw
-
Machine Name:
-
ice cream cup thermoforming Machine
Quick Details
-
Max.Forming Height(mm):
-
180 mm
-
Forming Width (mm):
-
450 mm
-
Forming Length (mm):
-
750 mm
-
Production Speed(Cycles/min):
-
35
-
Air Pressure(MPa):
-
0.8 MPa
-
Sheet Thickness(mm):
-
0.25 - 1 mm
-
Heating Power (kW):
-
60 kW
-
Air Comsumption(L/min):
-
2600 L/min
-
Water Comsumption(L/min):
-
10 L/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
junda
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4500*2200*2500MM
-
Weight (T):
-
9 T
-
Power(KW):
-
75kw
-
Machine Name:
-
ice cream cup thermoforming Machine
Disposable Ice Cream Cups Plate making Thermoforming machine

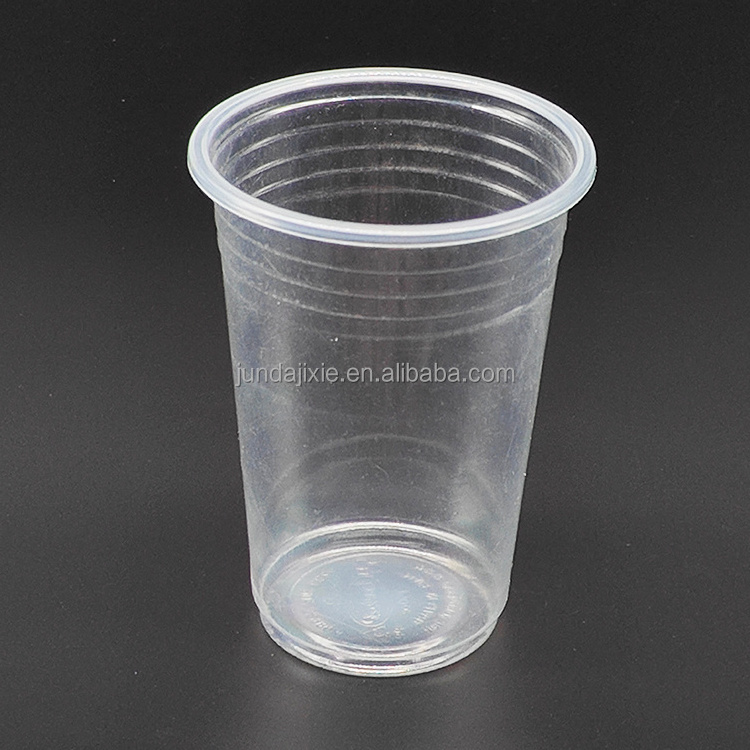

Samples:
Material we use
This machine mainly applies to consecutive production of disposable dishware
with HIPS,PET,PS PVC
Produce the packing products for the industries like medicine,light industry,tourist,toy and so on
The concrete goods are cooling drink cup,yoghourt cup.ice cream cup,fast food box.
Technology application
It is a combination of mechanical.electric and penumatic components.
The whole sysytem is controled by micro PLC.
It combines the material sending,heating,forming,cutting into one processing
Technical Parameters
| Sheet matereial | PP.PS.PVC.ABS,EPS,PLA |
| Sheet width | 400-630mm |
| Sheet thickness | 0.25-2.5mm |
| Max. forming area | 750*450MM |
| Max. travel | 160mm |
| Forming pressure | 0.5-0.8Mpa |
| Production effciency | 25-35(stroke/min)(Pieces Per Stroke) |
| Rated heating power | 75Kw |
| Starting power | 7.5Kw |
| Total weight | A-4.0 B-4.5 C-4.8 D-5.2(Ton) |
| Water temperature | 30°C |
| Overall dimensions |
4.5×2.2×2.5m 3 |
