4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system
4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system
4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system
4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system
4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system
4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system
4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system
4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system

4D Imaging Millimeter-wave Radar blind spot detective system collision avoidance system 77ghz vehicle tracking system

FOB Reference Price: Get Latest Price
≥10 Sets
US $1500
≥100 Sets
US $1400
≥500 Sets
US $1299
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
12 months
Brand Name:
EI
Accuracy Distance:
350M
Power Consumption(W):
≤ 20W
Function:
Waterproof, ADAS
Weight:
< 500g
Size:
130 x 90 x 39 mm
Interface:
Ethernet + CAN-FD
Temperature:
-40 ~ +85
Anti-Dusk/Water:
IP69K + IP67
Installation:
Bracket Mounting
Power Supply Model:
KL15 or KL30 Compatible
Frequency:
79 GHz
Maximum detection range:
350M
Distance accuracy:
0.03 m

Quick Details

Car Fitment:
Other
Voltages:
DC 9-36V
Frequency Band:
standard
Warranty:
12 months
Brand Name:
EI
Accuracy Distance:
350M
Power Consumption(W):
≤ 20W
Function:
Waterproof, ADAS
Weight:
< 500g
Size:
130 x 90 x 39 mm
Interface:
Ethernet + CAN-FD
Temperature:
-40 ~ +85
Anti-Dusk/Water:
IP69K + IP67
Installation:
Bracket Mounting
Power Supply Model:
KL15 or KL30 Compatible
Frequency:
79 GHz
Maximum detection range:
350M
Distance accuracy:
0.03 m
Product Description

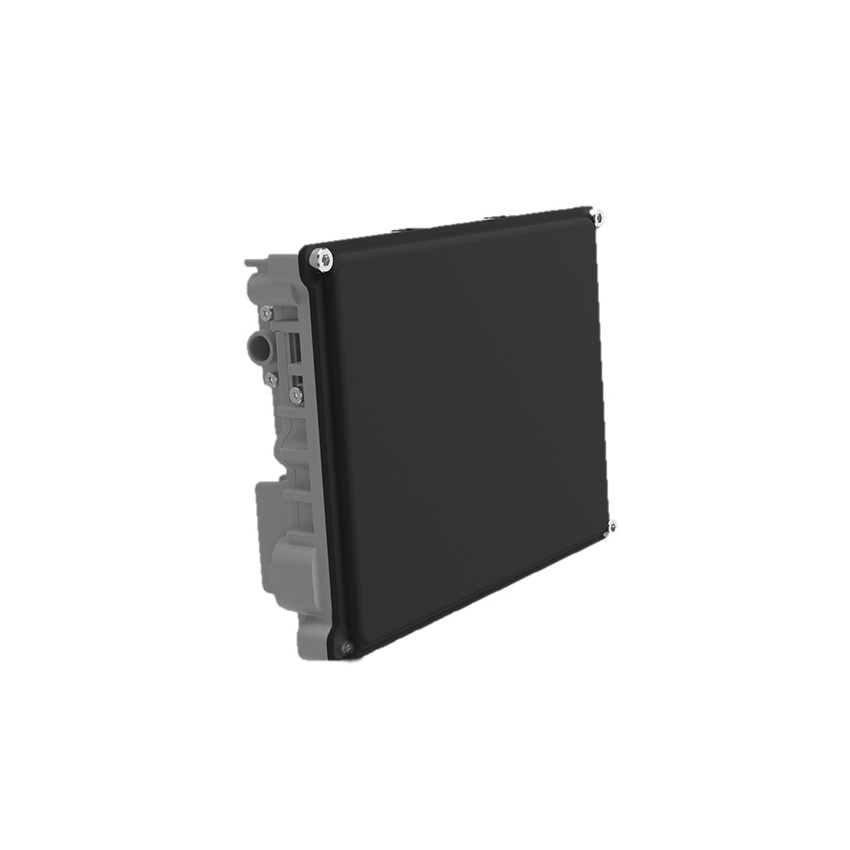

4D Imaging Radar Sensor- A1
4D imaging radar is high-resolution, long-range sensor technology that offers significant advantages over 3D radar, particularly when it comes to identifying the height of an object. This technology is important in the development of advanced driver-assistance systems (ADAS) for some Level 2 and 3 functions, and is a key enabler for Level 4 and 5 automated vehicles.

☆High Resolution
☆High Sampling Points ★Long Detection Range
★High Sampling Rate ☆High Point Cloud Density
☆Big Number Of Target Detection ★Working In Any Weather
★Low Cost

Maximum detection range
350 m
Weight
< 500g
Distance accuracy
0.03 m
Size
130 x 90 x 39 mm
Resolution of range
0.05 m
Interface
Ethernet + CAN-FD
Horizontal maximum detection Angle
120°
Voltage
9~36V
Horizontal Angle accuracy
0.1°
Power
≤ 20W
Horizontal Angle resolution
0.4°
Temperature
-40 ~ +85
Vertical maximum detection Angle
60°
Anti-Dusk/Water
IP69K + IP67
Vertical Angle accuracy
0.1°
Installation
Bracket Mounting
Vertical Angle resolution
0.8°
Power Supply Model
KL15 or KL30 Compatible
Maximum velocity detection range
-360 to 180 kph
Frequency
79 GHz
Speed precision
0.027 m/s
Instantaneous maximum current
3A
Resolution of velocity
0.2 m/s
Quiescent current
≤ 100μA
Maximum point cloud output
160,000/s


Maximum target output
256/cycle
