- Product Details
- {{item.text}}
Quick Details
-
Theoretical Shot Volume(cm³):
-
1200 cm³
-
Injection Rate (g/s):
-
10 g/s
-
Injection Weight (g):
-
130 g
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
23
-
Weight (KG):
-
23800
-
Place of Origin:
-
Fujian, China
-
Open Stroke(mm):
-
350 mm
-
Model Number:
-
KK-EVA
-
Brand Name:
-
KINGKUNG
-
Power (kW):
-
150 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
Hydraulic System:
-
40.5kw
-
Heating Plate:
-
76.8kw
-
Cooling Fan of Barrel:
-
1 Hp
-
Clamping Force:
-
180000 kgf
-
Oil Tank Size:
-
1000 L
-
Clamping Force (kN):
-
1764 kN
Quick Details
-
Mold Height(mm):
-
100 - 210 mm
-
Ejector Stroke(mm):
-
350 mm
-
Ejector Force(kN):
-
1764 kN
-
Theoretical Shot Volume(cm³):
-
1200 cm³
-
Injection Rate (g/s):
-
10 g/s
-
Injection Weight (g):
-
130 g
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
23
-
Weight (KG):
-
23800
-
Place of Origin:
-
Fujian, China
-
Open Stroke(mm):
-
350 mm
-
Model Number:
-
KK-EVA
-
Brand Name:
-
KINGKUNG
-
Power (kW):
-
150 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
Hydraulic System:
-
40.5kw
-
Heating Plate:
-
76.8kw
-
Cooling Fan of Barrel:
-
1 Hp
-
Clamping Force:
-
180000 kgf
-
Oil Tank Size:
-
1000 L
-
Clamping Force (kN):
-
1764 kN

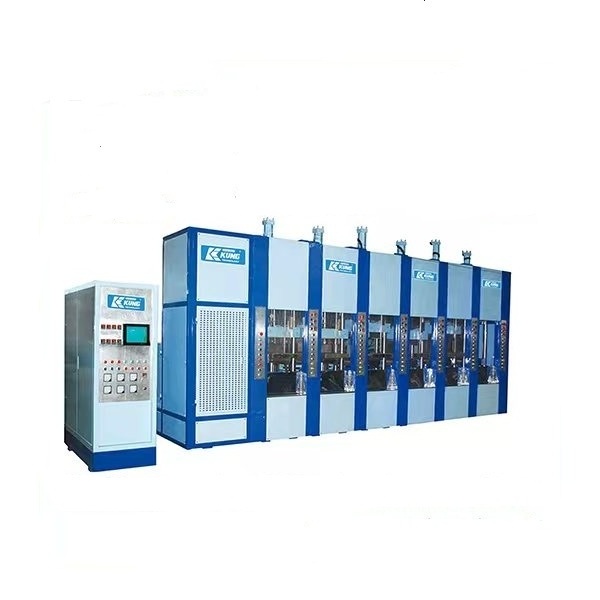

High Quality EVA Injection Molding Machine 6/8 Stations Slipper Sole Rainboot Making
|
Mold Closing System |
|
|
Work Stations |
6 |
|
Clamping Force (kg) |
180 000 |
|
Mold-Opening Stroke (mm) |
350 |
|
Standard Thickness of Mold (mm) |
100-210 |
|
Mold Plate Size (mm) |
2(290*550) |
|
Height of Injection Nozzle (mm) |
60 |
|
Method of Heating |
electric |
|
Heating Power (kw) |
8.04 |
|
Injection System |
|
|
Injectors (set) |
2 |
|
L/D Ratio of Screw |
23 |
|
Diameter of Screw (mm) |
60/70 |
|
Max Injection Capacity (cc) |
920/1200 |
|
Injection Pressure |
1100 |
|
Injection Speed (cm/sec) |
10 |
|
Rotating Speed of Screw (r.p.m) |
0-190 |
|
Temperature Control (section) |
4 |
|
Electricity Consumption |
|
|
Heater Barrel (kw) |
12.1 |
|
Motor for Injector Moving (kw) |
1.5 |
|
Heating Board of Mold (kw) |
76.8 |
|
Hydraulic System (kw)(50hz) |
40.5 |
|
Vacuum Pump (kw) |
2.2 |
|
Cooling Fan of Barrel (HP) |
1 |
|
Total Electricity (kw) |
150 |
|
Oil Tank Size (L) |
1000 |
|
Machine Weight (kg) |
23800 |
|
Machine size (m) |
6.5*4.5*2.8 |
KingKung Group Co.,Ltd., which specialized in one-stop solution for Shoe making machine (PVC, TR, EVA, PU, TPU ...)
New and used shoe sole mold
Shoes, sole and upper
Shoe material (PVC / PU leather ...)
Footwear Accessories
Chemicals for footwear
Other hot-selling Internet products, etc.
We introduce and offer the newest style and good quality products to our customers.Keeping serious quality control before
shipment.We offer good after-sales service, once you received the product, if there are any problems, inform us,and we are sure we can deal with that perfectly.
