- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RA-HS96
-
Place of Origin:
-
Guangdong, China
-
Sample Throughput:
-
96-well
-
Processing Volume:
-
20~1000ul
-
Extraction Time:
-
15min~60min
-
Magnetic Bead Recovery:
-
≥98%
-
Shock Function:
-
Yes
-
Operating Temperature:
-
RT~105℃
-
Temperature Accuracy:
-
0.1℃
-
Disinfection Method:
-
UV Light
-
Scanning:
-
Optional
-
Storage:
-
>1000
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
Raecho
-
Model Number:
-
RA-HS96
-
Place of Origin:
-
Guangdong, China
-
Sample Throughput:
-
96-well
-
Processing Volume:
-
20~1000ul
-
Extraction Time:
-
15min~60min
-
Magnetic Bead Recovery:
-
≥98%
-
Shock Function:
-
Yes
-
Operating Temperature:
-
RT~105℃
-
Temperature Accuracy:
-
0.1℃
-
Disinfection Method:
-
UV Light
-
Scanning:
-
Optional
-
Storage:
-
>1000
Product Description
Description

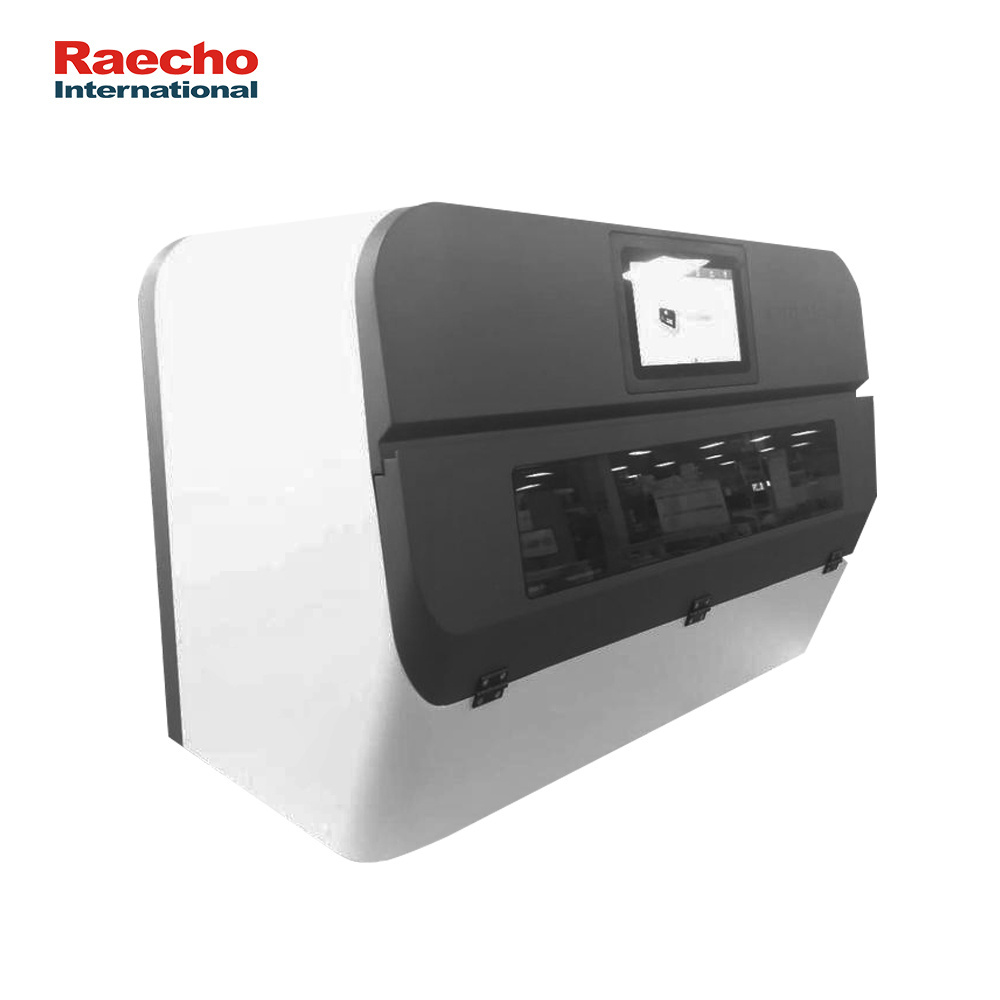

RA-HS96 is a high throughput, high sensitivity automatically nucleic acid purification system, with compatible Pre-loading nucleic acid extraction kits, it can achieve automatic nucleic acid purification of samples, including the whole blood, cells, tissue ect, which greatly save user’s time and strength the efficiency.
The equipment is also equipped with perfect protection funciton, such as efficient filtration system and door-opening protection, which can effectively avoid cross infection and ensure the quality of nucleic acid extraction result.
FEATURES
Display: 10.1 inch touch screen, easy to operate
Accurate temperature control and rapid temperature rise, can be adopted to actively reduce to room temperature and store samples in a short time at low temperature.
The module is integrated with shocking and heating, which can be mixed with shock while heating, saving extraction time.
Equipped with ultraviolet disinfection lamp, HDPE high efficiency filter and safety door protection function, it can effectively prevent aerosol ollution.
|
Product Specifications
|
|
|
|
Nucleic Acid Extraction Method
|
Paramagnetic particle method
|
|
|
Sample Throughput
|
96-well
|
|
|
Processing Volume
|
20~1000ul
|
|
|
Extraction Time
|
15min~60min
|
|
|
Magnetic Bead Recovery
|
≥98%
|
|
|
Magnetic Flux of Bar
|
3000~6000Gs , can change others
|
|
|
Operating Temperature
|
RT~105℃
|
|
|
Shock Function
|
Yes
|
|
|
Temperature Accuracy
|
0.1℃
|
|
|
Sample Protection Function
|
Power on self-check, power off protection, high-temperature alarm, over-temperature protection
|
|
|
Disinfection Method
|
UV Light
|
|
|
Safety Door Design
|
The instrument is suspended when the safety door is opened
|
|
|
Operating System
|
Windows system
|
|
|
Scanning
|
Optional
|
|
|
Storage
|
>1000
|
|
|
Interface
|
USB interface
|
|
|
Power Supply
|
AC100-240V 50Hz/60Hz
|
|
|
Package Size(W*D*H)mm
|
1138*733*1028
|
|
|
Gross Weight(kg)
|
130
|
|
