Quick Details
-
Power (kW):
-
3
-
Place of Origin:
-
China
-
Weight (KG):
-
120 KG
-
item:
-
turmeric grinder machine
-
power:
-
variable
-
Dust collect device:
-
Optional
-
Material contact parts:
-
SUS304 or SUS316L
-
Product name:
-

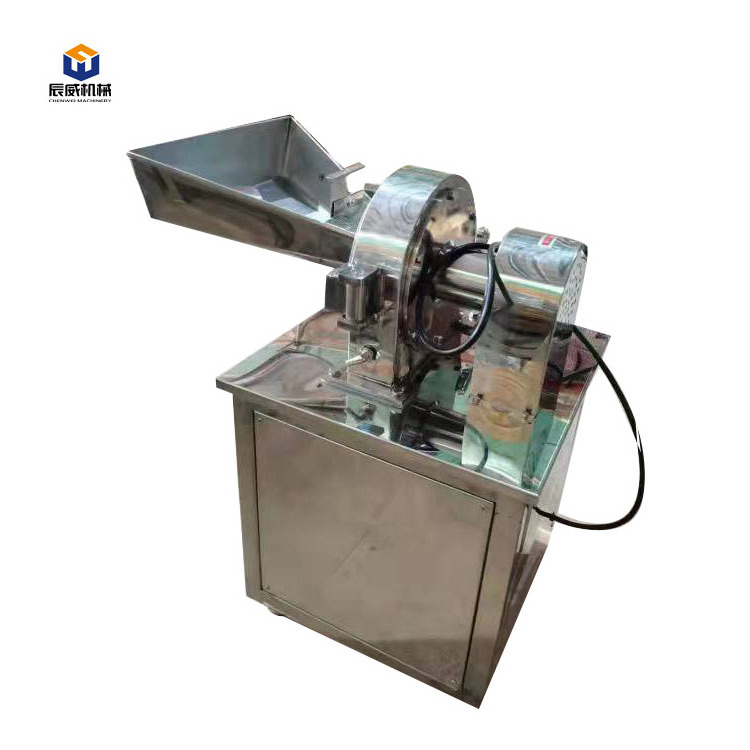

Fine Powder Pulverizer
Quick Details
-
Output (kg/h):
-
20 - 1500 kg/h
-
Feeding Size (mm):
-
10 - 12 mm
-
Output Size (mesh):
-
30 - 150 mesh
-
Power (kW):
-
3
-
Place of Origin:
-
China
-
Weight (KG):
-
120 KG
-
item:
-
turmeric grinder machine
-
power:
-
variable
-
Dust collect device:
-
Optional
-
Material contact parts:
-
SUS304 or SUS316L
-
Product name:
-
Fine Powder Pulverizer
Product Description
The high-efficiency pulverizer is mainly used to pulverize hard and brittle materials such as chemical raw materials, Chinese medicinal materials containing wood roots, leaves, blocks, low-oil grains, whole grains, such as ginger, chili, sugar, salt, pepper, beans, star anise, cinnamon, etc. , Dried vegetables, etc.
|
Model
|
Capacity (kg/h)
|
Speed (rpm)
|
Feed size
(mm)
|
Crush size (mm)
|
Power (kw)
|
Weight
(kg)
|
Size
(mm)
|
|
20
|
20-150
|
5200
|
10
|
30-150
|
3
|
120
|
720*530*880
|
|
24
|
50-300
|
4600
|
12
|
30-150
|
5.5
|
164
|
860*570*1060
|
|
28
|
80-500
|
4200
|
12
|
30-150
|
7.5
|
210
|
890*62081130
|
|
36
|
150-800
|
3570
|
12
|
30-150
|
15
|
320
|
1040*840*1330
|
|
42
|
200-1200
|
2700
|
12
|
30-150
|
18.5
|
410
|
1070*780*1350
|
|
50
|
300-1500
|
2000
|
12
|
30-150
|
30
|
660
|
1372*910*1561
|
Detailed Images
Cutterhead high-speed rotation shear grinding.There is a screen outside the cutter head for filtration. After crushing, the powder passes through the screen and enters the discharge port.
Stainless steel screen
:
Different sieve meshes match with different machines, uniform fixing position
Sieve mesh with 30-150 mesh for options according to the requirement
Sieve mesh with 30-150 mesh for options according to the requirement
Inspection machine of chilli pulverizer machine
Every product is checked for normal operation before shipment. This is the guarantee we provide to our customers. The following scene is the scene of wheat bran test machine.
Main Features and application
1. The Universal pulverizer may be widely applied in industries, such as chemical and food,etc., for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.
2. Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national "GMP" standard.
Our Service
Packing & Delivery
Our Company
Xinxiang Chenwei Machinery Co., Ltd. is an innovative enterprise that integrating technology R&D, processing, manufacturing and trade services. Our company is mainly devoted ourselves to the design, fabrication and installation of screening, conveying, mixing, crushing and other related products. We have 10 years of overseas after-sales experience, provide 24-hour online service, 365-day machine warranty, and have more than 50 patented technologies.
FAQ
Q1: What's the raw material you want to grind? (Like chili, sugar, herbs...etc) Q2: What's the size of your raw material? (Such as 10 mm,15 mm...etc) Q3: What's the capacity of the machine you need? (Like 50 kg/hr, 300 kg/hr,500 kg/hr..etc) Q4: What's the finished powder fineness you want to get? (mesh, mm or micron) Q5: What power do you use in your factory?-V,-Hz, 3 phase or single phase? ( L ike 220 V , 50 Hz , single or 380 V, 60 Hz , 3 phase... etc )
We are happy to offer you the best products at competitive prices.
There are also quotations for other models of our production, please feel If you have any requirements, you can contact us at any time.
